Cylinder - piston yokeless ITALKIT Racing aluminum 80cc Ø47,6mm special race 44,90mm DERBI euro 3
  • Cylinder - piston yokeless ITALKIT Racing aluminum 80cc Ø47,6mm special race 44,90mm DERBI euro 3

Cylinder - piston without cylinder head ITALKIT Racing aluminum 80cc Ø47.6mm special 44.90mm stroke DERBI euro 3 & 4

CI.12.775.G

Cylinder / piston without replacement cylinder head, kit 80cc Ø47,6mm, 6 transfers, big exhaust to booster, .... To be accompanied by a 44.90mm long stroke crankshaft and its cylinder head with high compression stud.

Stage 1 engine preparation
€167.49
Quantity
Attention, requires a period of more than 20 days!

Description

Not homologated on open road, only reserved for competition on circuit, closed road.

This cylinder, piston without cylinder head 80cc Ø47.6mm mounts on mécaboite driving DERBI euro 3 and euro 4, it is the replacement for the 80cc racing pack with 44.90mm long stroke crankshaft and the cylinder head with high compression stud. therefore the ITALKIT crankshaft in stroke 44.90 and connecting rod 90mm In combination with the stroke 44.90 mm, the actual displacement is 79.86cc.

transferts Cylindre - piston sans culasse ITALKIT Racing aluminium 80cc Ø47,6mm spécial course 44,90mm DERBI euro 3 In addition to this, you need to know more about it.

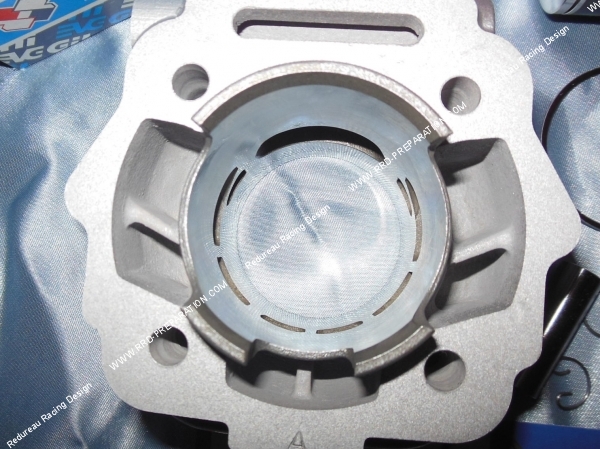

The cylinder is made of aluminum alloy and has a specific heat treatment and an internal coating in niquel / silica and external in chrome, giving it all its strength and reliability. Equipped with 6 intake transfers, 2 boosters with worked shapes and finally the impressive exhaust outlet by its shape and size to such an extent that the outlet diameter has been revised upwards and greatly enlarged!

piston Cylindre - piston sans culasse ITALKIT Racing aluminium 80cc Ø47,6mm spécial course 44,90mm DERBI euro 3

The cooling has also been completely revised and corrected in order to offer the best possible heat exchange and at the same time to obtain a significant performance gain, in fact the less an engine runs out of steam and heats up and the more performance remains present. The Ø47.6mm piston is not chosen at random, it is a single segment model from ITALKIT with graphite treatment.

échappement boosters Cylindre - piston sans culasse ITALKIT Racing aluminium 80cc Ø47,6mm spécial course 44,90mm DERBI euro 3

In other words, very high quality material whose reputation / quality is well established. This piston is therefore equipped with a fine chrome segment 0.80 mm thick thus promoting the increase in speed. Thanks to the graphite treatment, its shapes and its composition, this piston has been very well designed and studied in order to offer a better thermal expansion, agreeing at the same time perfectly with this cylinder to withstand frank times, sudden changes of speed and prolonged endurance on the circuit.

admission Cylindre - piston sans culasse ITALKIT Racing aluminium 80cc Ø47,6mm spécial course 44,90mm DERBI euro 3

Delivered complete as presented, you can trust the photographs, they are contractual as usual. This cylinder / piston will be ideal in case of wear or breakage and replacement of your old high engine, without changing everything. In addition to this, you need to know more about it.

We recommend that you accompany this pack with at least : a carburation of 24 to 28 for the better, an admission kit in flexible assembly, ultra reinforced crankshaft ITALKIT Competition 44.90 stroke / 90mm rod, ITALKIT high compression stud cylinder head, ignition Selettra from ITALKIT with variable advance, cold spark plug NGK B105EGV, compulsory racing engine oil, high volume racing trigger exhaust essential ....

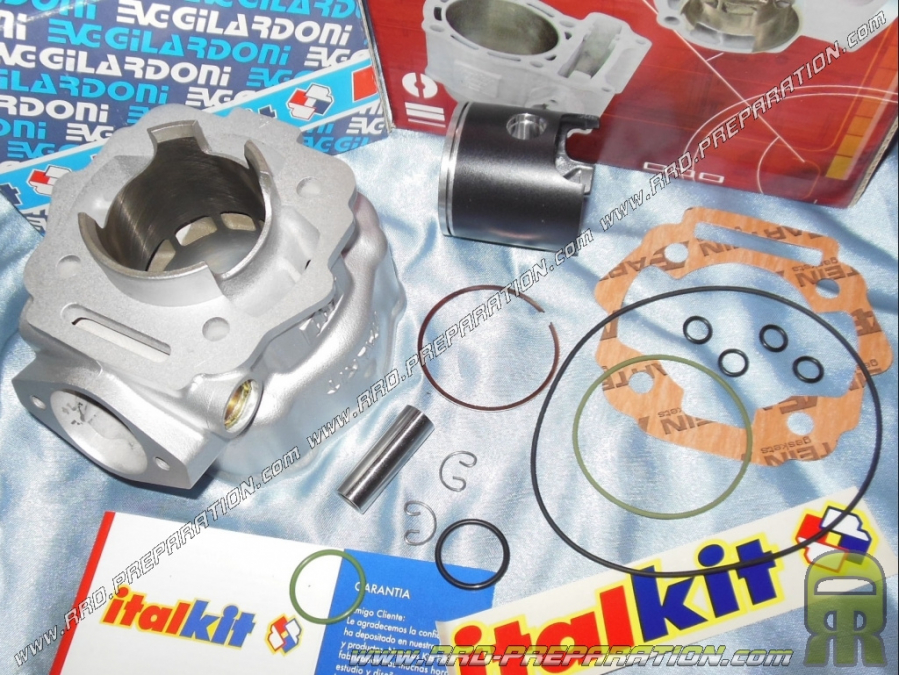

Contains :

-Cylinder Ø47.6mm aluminum 6 transfers with large exhaust booster
-Piston ITALKIT graphite mono segment Ø47,6mm
-Segment Ø47.6 end chrome thickness 0.80mm
-Reinforced piston axis Ø12 X 38mm
-Crab type piston clips
-Pack motor seal
-Installation instructions
-Sticker


As an option we offer a stage 1 preparation, this preparation is a modification of the channels and the exhaust port by increasing the diagrams and improving the duct, it increases the performance of the cylinder. An improvement to the piston and the bottom of the skirt is also included in this modification. Allow a little extra time for this preparation!
