Like all MHR parts, the MHR Ø22mm pipe is a must in terms of admission. This version is identical to the rubber model, only the material of the intake tube is much more upscale, in fact viton has excellent resistance to heat, vibrations, fuels... viton resists all mechanical tests. Viton also has the power to absorb gas rebounds much better and to have a surface that is preferable to the passage of gas at high speed, a clear improvement in performance is present thanks to this intake pipe compared to rubber models. This pipe is 100% adjustable, it does not require a seal because it is integrated into the tube. Very short, it will allow you to mount a huge carburetor while preserving a short admission therefore having engine response, torque... You can fix carburetors with a fixing diameter of 27 to 29 mm such as the PHBG from 15 to 21mm RACING MALOSSI MHR with 28mm diameter ring.
The outlet of the pipe is ovalized and measures 26 X 31mm.
On this intake pipe, even the design of the aluminum plate has been neat, you can find the intake tube and the clamp separately for replacement.

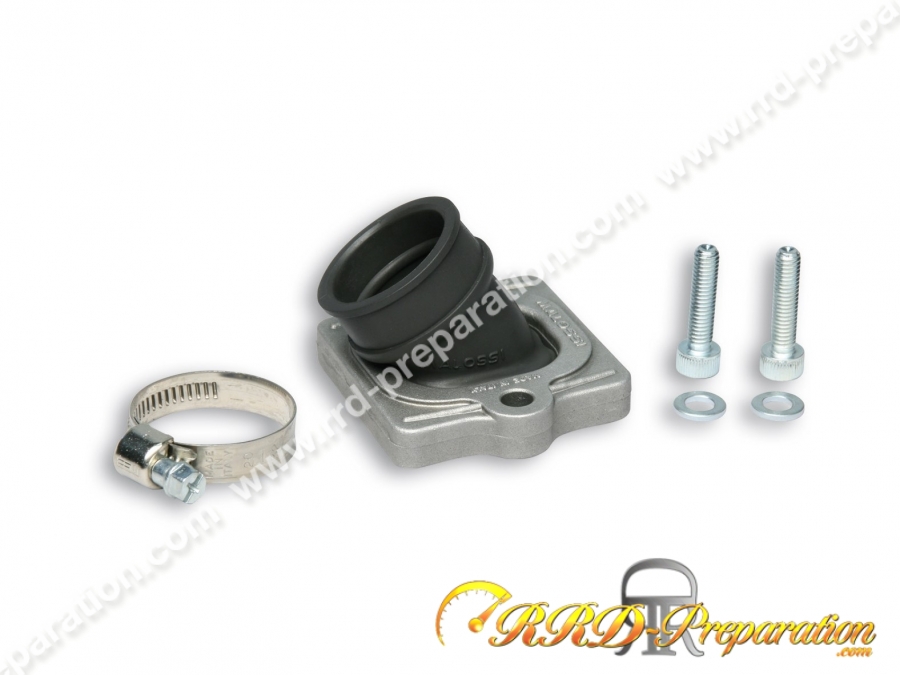

Pipe delivered with :
X2 black reinforced stainless screws
X1 molded aluminum plate
X1 rubber tube
x2 stainless washer
x1 carburetor clamp
Mounting on :
APRILIA SCARABEO CLASSIC 50 2T euro 4 2018-> (CA91M) Can be rotated 360° - for PHBG 15-21 Racing (in socket 28)
APRILIA SCARABEO STREET 50 2T ( PIAGGIO ) Can be rotated 360° - for PHBG 15-21 Racing (in socket 28)
APRILIA SCARABEO STREET 50 2T euro 4 2018-> (CA91M) Can be rotated 360° - for PHBG 15-21 Racing (in socket 28)
APRILIA SPORTCITY ONE STREET 50 2T euro 2 Can be rotated 360° - for PHBG 15-21 Racing (in socket 28)
APRILIA SR (carb.) 50 2T LC 2004-> ( PIAGGIO ) Can be rotated 360° - for PHBG 15-21 Racing (in socket 28)
APRILIA SR R 50 2T LC euro 4 2018-> ( PIAGGIO CA81M) Can be rotated 360° - for PHBG 15-21 Racing (in socket 28)
APRILIA SR MOTARD 50 2T euro 2 Can be rotated 360° - for PHBG 15-21 Racing (in socket 28)
APRILIA SR MOTARD 50 2T euro 4 2018-> (CA41M) Can be rotated 360° - for PHBG 15-21 Racing (in socket 28)
APRILIA SR R (carb.) 50 2T LC ( PIAGGIO ) Can be rotated 360° - for PHBG 15-21 Racing (in socket 28)
APRILIA SR Street 50 2T LC euro 2 Can be rotated 360° - for PHBG 15-21 Racing (in socket 28)
DERBI GP1 50 2T LC Can be rotated 360° - for PHBG 15-21 Racing (in socket 28)
DERBI GP1 OPEN 50 2T LC Can be rotated 360° - for PHBG 15-21 Racing (in socket 28)
DERBI GP1 REVOLUTION 50 2T LC Can be rotated 360° - for PHBG 15-21 Racing (in socket 28)
DERBI VARIANT Sport 50 2T Can be rotated 360° - for PHBG 15-21 Racing (in socket 28)
GILERA DNA 50 2T LC Can be rotated 360° - for PHBG 15-21 Racing (in socket 28)
GILERA EASY MOVING 50 2T Can be rotated 360° - for PHBG 15-21 Racing (in socket 28)
GILERA ICE 50 2T Can be rotated 360° - for PHBG 15-21 Racing (in socket 28)
GILERA RUNNER SP 50 2T LC
GILERA RUNNER SP 50 2T LC 2006-> (C451M) Can be rotated 360° - for PHBG 15-21 Racing (in socket 28)
GILERA RUNNER 50 2T LC Can be rotated 360° - for PHBG 15-21 Racing (in socket 28)
GILERA STORM 50 2T Can be rotated 360° - for PHBG 15-21 Racing (in socket 28)
GILERA STALKER 50 2T Can be rotated 360° - for PHBG 15-21 Racing (in socket 28)
GILERA TYPHOON 50 2T Can be rotated 360° - for PHBG 15-21 Racing (in socket 28)
GILERA TYPHOON X 50 2T Can be rotated 360° - for PHBG 15-21 Racing (in socket 28)
PIAGGIO NRG Power 50 2T LC euro 4 2018->2020 (CA71M) Can be rotated 360° - for PHBG 15-21 Racing (in socket 28)
PIAGGIO NRG EXTREME 50 2T Can be rotated 360° - for PHBG 15-21 Racing (in socket 28)
PIAGGIO NRG EXTREME 50 2T LC Can be rotated 360° - for PHBG 15-21 Racing (in socket 28)
PIAGGIO FREE 50 2T Can be rotated 360° - for PHBG 15-21 Racing (in socket 28)
PIAGGIO LIBERTY 50 2T Can be rotated 360° - for PHBG 15-21 Racing (in socket 28)
PIAGGIO NRG MC2 50 2T LC
PIAGGIO NRG MC2 50 2T LC 1998-> Can be rotated 360° - for PHBG 15-21 Racing (in socket 28)
PIAGGIO NRG 50 2T LC Can be rotated 360° - for PHBG 15-21 Racing (in socket 28)
PIAGGIO NRG MC3 DT 50 2T Can be rotated 360° - for PHBG 15-21 Racing (in socket 28)
PIAGGIO NRG MC3 DD 50 2T LC Can be rotated 360° - for PHBG 15-21 Racing (in socket 28)
PIAGGIO NTT 50 2T LC Can be rotated 360° - for PHBG 15-21 Racing (in socket 28)
PIAGGIO NRG Power DD 50 2T LC Can be rotated 360° - for PHBG 15-21 Racing (in socket 28)
PIAGGIO NRG Power DT 50 2T (C45 3M ) Can be rotated 360° - for PHBG 15-21 Racing (in socket 28)
PIAGGIO QUARTZ 50 2T LC Can be rotated 360° - for PHBG 15-21 Racing (in socket 28)
PIAGGIO SFERA RESTYLING 50 2T Can be rotated 360° - for PHBG 15-21 Racing (in socket 28)
PIAGGIO TYPHOON 50 2T 2007->2010 Can be rotated 360° - for PHBG 15-21 Racing (in socket 28)
PIAGGIO TYPHOON 50 2T euro 2 2011->2017 (C421M) Can be rotated 360° - for PHBG 15-21 Racing (in socket 28)
PIAGGIO TYPHOON 50 2T euro 4 2018-> (CA41M) Can be rotated 360° - for PHBG 15-21 Racing (in socket 28)
PIAGGIO ZIP Fast Rider 50 2T Can be rotated 360° - for PHBG 15-21 Racing (in socket 28)
PIAGGIO ZIP 50 2T 2000-> (C25EM) Can be rotated 360° - for PHBG 15-21 Racing (in socket 28)
PIAGGIO ZIP 50 2T
PIAGGIO ZIP SP 50 2T LC 2001-> Can be rotated 360° - for PHBG 15-21 Racing (in socket 28)
PIAGGIO ZIP SP 50 2T LC
VESPA ET2 50 2T
