Directional pipe of admission POLINI Evolution carburettor 19 has 24mm (Ø28,5mm fixing) minarelli horizontal (nitro, aerox)
  • Directional pipe of admission POLINI Evolution carburettor 19 has 24mm (Ø28,5mm fixing) minarelli horizontal (nitro, aerox)

POLINI Evolution adjustable intake pipe 19 to 24mm carburetor (Ø28,5mm fixing) minarelli horizontal (nitro, aerox)

215.0441

High-end model in aluminum and anti-vibration Viton rubber, 360 ° swivel.

€47.49
Quantity
Shipping in 1-3 days

Description

Here is the very last POLINI Evolution orientable intake pipe! This pipe is really at the top, first of all you orient it as you wish to place the carburetor as you want! Designed for large carburetors and its internal diameter too (28.5mm, for 19 to 24mm carburetor).

vue Pipe d'admission orientable POLINI Evolution carburateur 19 a 24mm (fixation Ø28,5mm) minarelli horizontal (nitro, aerox)

Its fixing diameter is from Ø23 to 25mm. To avoid harmful vibrations and jolts, the sleeve is made of specific Viton. Rigid enough so that the pipe does not crack or break when tightening. Even on the aesthetic side, we feel that POLINI has really taken care of this piece as desired. No need to put a seal, a seal is pre-integrated into the junction, moreover it is delivered with instructions, screws…. Clearly, thanks to a perfect diffusion, absorption of vibrations, a good position… The performance gain will of course be felt and present!

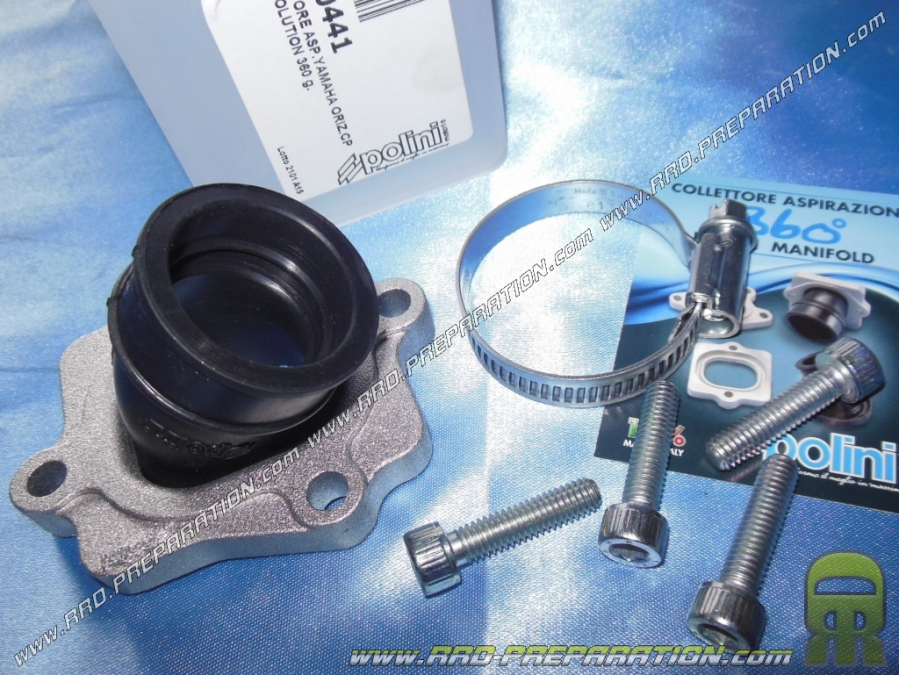

zoom Pipe d'admission orientable POLINI Evolution carburateur 19 a 24mm (fixation Ø28,5mm) minarelli horizontal (nitro, aerox)

-For DELLORTO PHBH carburetors or type PHBG 19.
-For POLINI CP 19 carburettors.
-For POLINI CP EVO 23 and 24 carburetors.
-Internal diameter 28.5mm.
-Fixing diameter 23 to 25mm.
-40 ° tilt angle.
-Orientable 360 °.
-Version Evolution.

schema pipe admission polini evolution orientable carburateur

A = Ø28.5mm
B = 23 -> 25
C = 40 °

For Minarelli / Yamaha Horizontal motor scooter such as the MBK Nitro, Yamaha Aerox ... and many other models.
