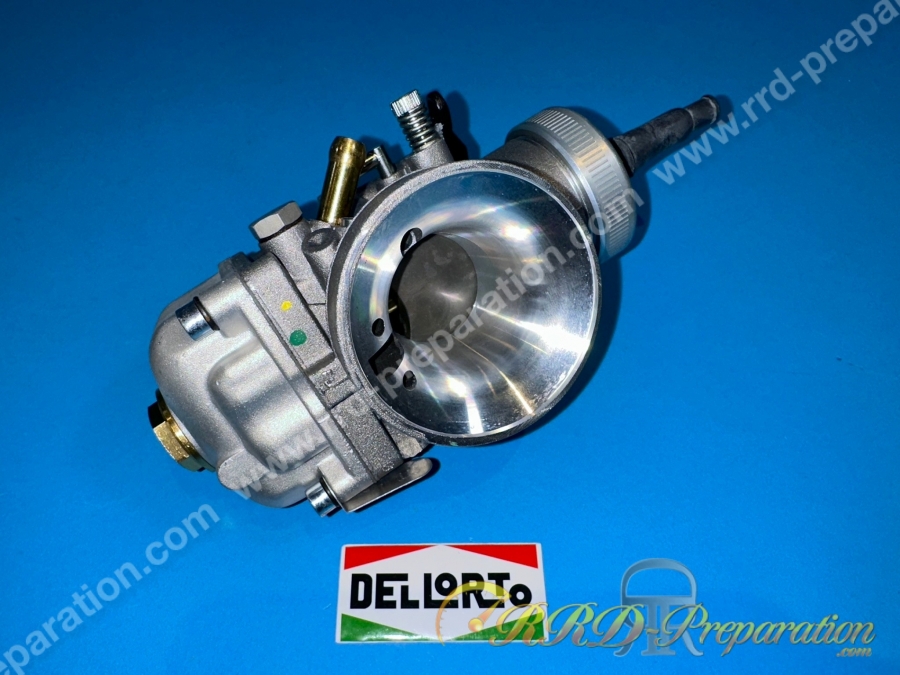

DELLORTO VHSH 30 CS carburettor without separate greasing, lever choke

Not homologated on the road. Attention, here is the most powerful carburetor placed on the prototypes of the various teams of preparers. VS

With its flexible assembly type AB 2 (male carburetor) it is very short, made of a top-of-the-range alloy, it has a very well-designed flat plug, obviously, its air inlet has a fixing diameter of 65mm! The needle adjustments are simple by the unscrewable aluminum hand cap, the needle is fixed by screws so that there is no offset in relation to the needle well. These carburetors are ringed to prove their model / design…. The fuel filter is integrated in screws. The nozzle change which is also a standard Dellorto big step is very simple, a simple gold bowl cap machined as on the various phbl ...

The tank is also made of aluminum and fixed by 3 screws in the groin. This carburetor has really been cut for competition up to its bushel spring…. We could spend thousands of lines explaining the various specialties of this magnificent competition piece to you.

A very great response to the Japanese KEIHIN and MIKUNI with this carburetor, Dellorto Italy pushed the plug by doing an internal three-layer machined / bored treatment with nykasil to avoid gas rebounds and improve brazing ...

Filter fixing diameter : 65mm
Pipe side fixing diameter : 35mm
Separate lubrication : no
Starter : by lever
For hose diameter : 7mm
U02 needle
Needle well : DP268
Dellorto standard main jet large pitch : size -
Secondary jet : 12X5 size -
Idle jet 18.5 X 5 size -
CPL needle size -
Float type 15 in - grams
