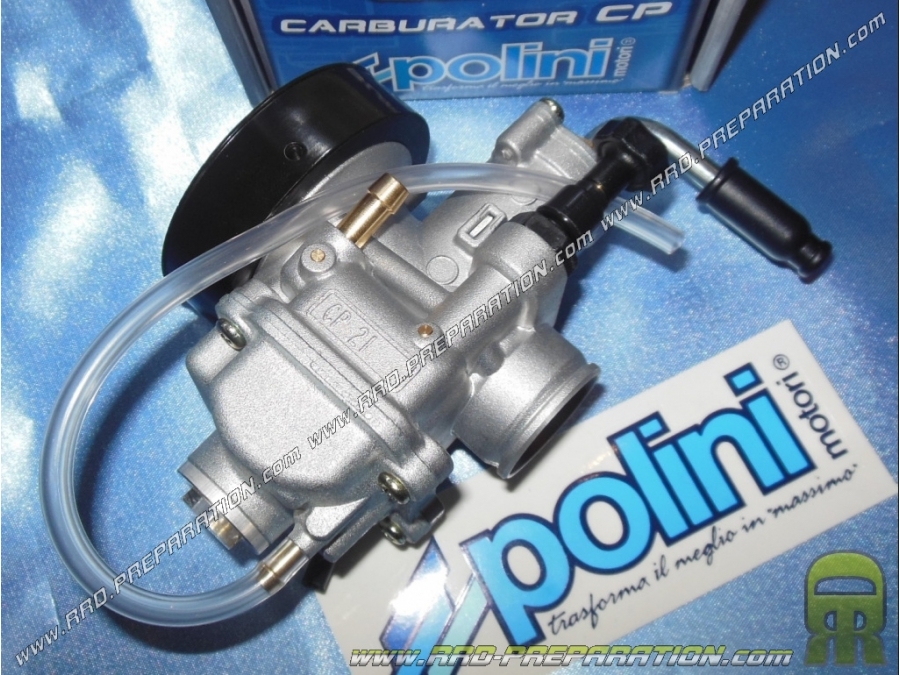

Here is the most efficient version of the 21mm type CP from POLINI MOTORI, the basic CP carburetor is a very efficient model, 100% made in Italy and not in China, high quality which is also easier to adjust! Unlike the standard model which is reserved for configurations not exceeding 13,000 turns! This CP EVOLUTION releases its performance and supplies between 12,000 and 15,000 revolutions without problems!
Everything in this piece is of course made in Italy (and not in Asia), which makes it a high end item whether in its machining or finish, very clean and smooth. It has a lever choke that you can switch to cable if you wish.Be careful it has neither depression nor pressure outlet!
Its body is made entirely of sturdy and lightweight aluminum alloy. A tank also in aluminum, simple and efficient adjustments, a whole specific and efficient internal system. Its fixation on the intake pipe is Ø28.5mm with anti-slip lip for the connecting sleeve. In addition to this, you need to know more about it.

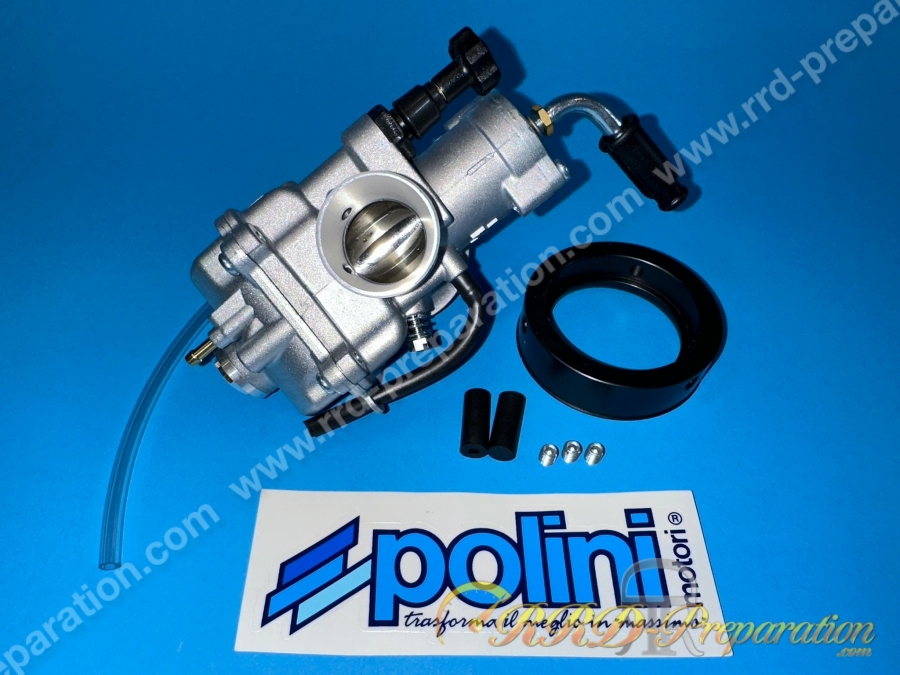

A tank cap is present for a faster change of settings without the complete disassembly of the tank, a large diameter tulip is provided with this carburetor to install the large diameter Ø60 / 61mm filters. Equipped with a main nozzle 114, secondary nozzle 40, bushel Ø25mm, cut at 40 °, needle 3 notches 12/22, one after well / spray nozzle 2.7, float 4 grams, tube / pipe at 90 ° ....
All these parameters can of course be modified with the spare parts that we offer in accessory links or directly available in the category of adjustment and spare parts for POLINI CP carburettor.
This carburetor, you will have understood it is specially designed for competition, the highest performances and will be ideal to accompany a high engine kit of large displacement (70, 80cc ...) with racing exhaust, racing crankshaft, prepared intake. ...
Summary of settings and options :
-Options: caps under the tank, special machining, large diameter tulip and settings
-Ø21mm and Ø24mm output (competition conical machining)
-Mounting: Flexible for pipe diameter 28.5mm level fixing
-Starter: lever (possibility to switch to cable)
-Vacuum outlet or separate lubrication: no
-Main jet: POLINI CP 114
- Needle: CP 12 22
-Secondary nozzle: POLINI 40
-Busel diameter 25mm cut 40 °
-Pieces after needle well 2.7- 21
-Richness: moderately tight and loosened by 1 turns
-Air filter Ø60 to 62mm with tulip and 45 to 47mm without tulip
-For 6mm diameter fuel hose (or 5 forcing)
- Needle clips on the 3rd notch from the top
