Cylinder - piston without cylinder head Ø43mm 70cc PARMAKIT aluminum PIAGGIO VESPINO F9, VELOFAX, GILERA ALX, GSA, VALE ...

Attention, parts only reserved for competition, prohibited on the road!

Here is the most powerful kit on the market for VELOFAX type engine! This is the PARMAKIT 70cc Ø43mm. This low-cost cylinder does not neglect quality or performance, this 43mm diameter is made of high-end aluminum. It has 6 intake transfers and a bar exhaust.

The diagrams are quite high at the level of the admission as the exhaust, it is therefore recommended with a larger carburation and a free exhaust.

The piston is a two-segment model with side grease nipples!

Clearly this kit has a very good torque / power ratio, it offers a lot of performance while preserving superb strength!

The piston has side grease nipples and a slight preparation on the rear skirt to improve sweeping. The finish is really on top. We recommend that you align the transfers with the crankcases of the lower engine. More complete description to come.

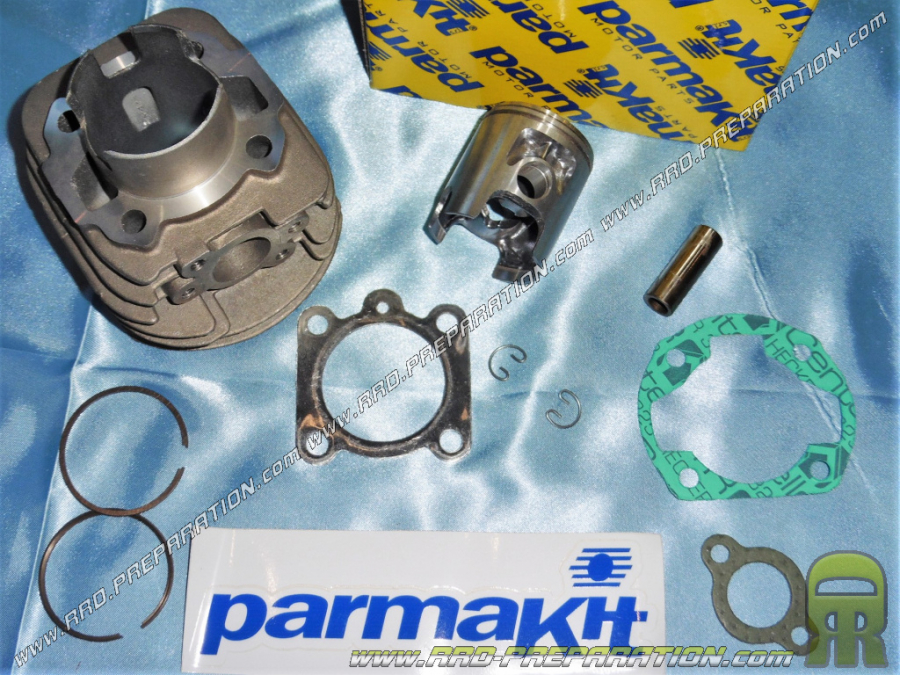

The pack contains:

X1 Cylinder
X1 Cylinder head
X1 Piston
X2 Segments
X1 Piston pin
X2 Piston clips
X1 Pack seals
X1 screws
X1 Notice

As an option we offer you a stage 1 preparation, this preparation is a modification of the channels and the exhaust port by increasing the diagrams and improving the duct, it increases the performance of the cylinder. An improvement to the piston and the bottom of the skirt is also included in this modification. Allow a little extra time for this preparation!

Mounts on:

PIAGGIO Vespa al
PIAGGIO Vespa alx
PIAGGIO Vespa nlx
PIAGGIO Vespa Vespino t6
PIAGGIO VESPINO
PIAGGIO VELOFAX

GILERA VALE, TOLEDA, GSA, ALX

And other models ...
