Kit 70cc Ø47,6mm ATHENA Racing mono segment aluminum scooter PIAGGIO Liquid (NRG, RUNNER ...)

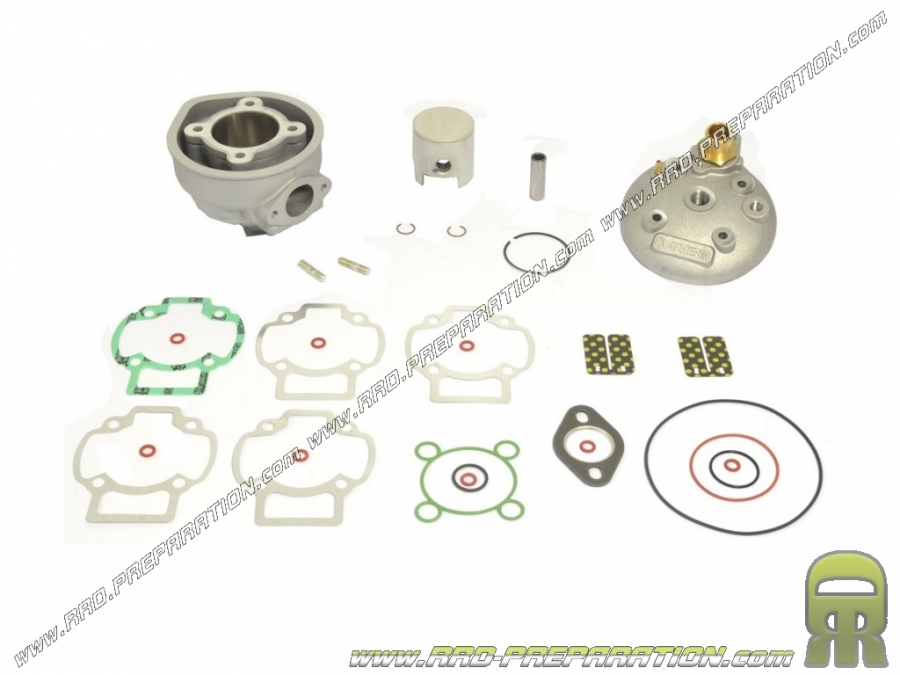

With its single-piston flat-plated piston, compression ratios of 14: 1 and its high diagrams, here is the ATHENA RACING version for PIAGGIO / GILERA liquid-cooled motor scooter. This very high quality kit has a EUROCILINDRO nicasil treated aluminum cylinder, very robust. A reinforced plunger piston with a single segment to allow the highest speeds, a high compression head with a frustoconical chamber offering a compression ratio of 14: 1. The recommended squish is 0.70mm.

Use only SP98, a crankshaft reinforced with bearings with a set of C4, a carburetion in 21 to 28mm, a muffler racing, a racing variator and if possible, a variable advance ignition ...

Ultimately, it is a very powerful and robust kit to accompany and mount correctly! There is also a pro version with breech block!

Installs on motor scooter PIAGGIO / GILERA Liquid 50cc 2 stroke :

APRILIA SR (carb.) 50 2T LC 2004 (Engine PIAGGIO)
ARPILIA SR R (carb.) 50 2T LC (PIAGGIO engine)

DERBI GP1 50 2T LC
DERBI GP1 OPEN 50 2T LC
DERBI GP1 REVOLUTION 50 2T LC

GILERA DNA 50 2T LC
GILERA RUNNER SP 50 2T LC before 2005
GILERA RUNNER SP (carb.) 50 2T LC after 2006 (C451M)
GILERA RUNNER 50 2T LC

PIAGGIO NRG EXTREME 50 2T LC
PIAGGIO NRG MC2 50 2T LC before 1997
PIAGGIO NRG MC2 50 2T LC after 1998
PIAGGIO NRG 50 2T LC
PIAGGIO NRG MC3 DD 50 2T LC
PIAGGIO NTT 50 2T LC
PIAGGIO NRG Power DD 50 2T LC
PIAGGIO QUARTZ 50 2T LC
PIAGGIO ZIP SP 50 2T LC after 2001
PIAGGIO ZIP SP 50 2T LC before 2000
PIAGGIO Zip sp2 50cc LC

And other models ...
