Kit 70cc Ø47,6mm (axle of 12mm) aluminum TOP PERFORMANCES TPR motor scooter PIAGGIO / GILERA
  • Kit 70cc Ø47,6mm (axle of 12mm) aluminum TOP PERFORMANCES TPR motor scooter PIAGGIO / GILERA

Kit 70cc Ø47,6mm (axis of 12mm) aluminum TOP PERFORMANCES TPR blue motor scooter PIAGGIO / GILERA

9930060

A alu 70cc 100% complete, efficient, robust and reliable engine PIAGGIO / GILERA

Stage 1 engine preparation
€158.33
Quantity
Shipping in 8 to 15 days depending on factory arrivals TOP PERFORMANCES

Description

The aluminum kit TPR 70cc is also called one of the most powerful market kits in its class cast, it has alloy, minachrome treatment, a high silicon layer with anti-seizure ... upscale piston. Admission and its very elaborate diagrams (see photo) permetent him really excellent plans. The piston skirt d.47,6mm profiled arrièe has a small admission preparation and the side opening for better PMB and better scanning (mieu on admission to the cylinder). Moreover, it is in mono fine segment chrome domed hard reinforced allowing it to high revs.

vue Kit 70cc Ø47,6mm (axe de 12mm) aluminium TOP PERFORMANCES TPR scooter moteur PIAGGIO  GILERA

Transfers and exhaust are fussed hand factory Top racing performance. It obviously comes with a reinforced needle cage. His head is high polished truncated compression chamber, the latter is really calculated, accurate and complete. This is one of the most resistant and torquey kits in its class thanks to its normal exhaust and the quality of its surface treatment.

montage Kit 70cc Ø47,6mm (axe de 12mm) aluminium TOP PERFORMANCES TPR scooter moteur PIAGGIO  GILERA

We advise those who want the very powerful hardware while aillant some strength to do a lot of kilometers, however, to drag, it will lack an exhaust with bar or boosters. You can reach widely from 11 to 14 horsepower depending on your preparation, your settings and your attachments. We would have still preferred a worthy finish, piston side lubricators and different bases joined to make the squish a kit at this price but a good mechanic "preparer" this is not a problem.

Technical characteristics of the TPR kit:

-alésage mm: 47,6mm
-course planned: 39,3mm
Real -cylindrée: 69,9cc

admission Kit 70cc Ø47,6mm (axe de 12mm) aluminium TOP PERFORMANCES TPR scooter moteur PIAGGIO  GILERA

We recommend at least: reinforced crankshaft and bearings, carburetion D.21mm racing, racing exhaust, cold spark plug, valves

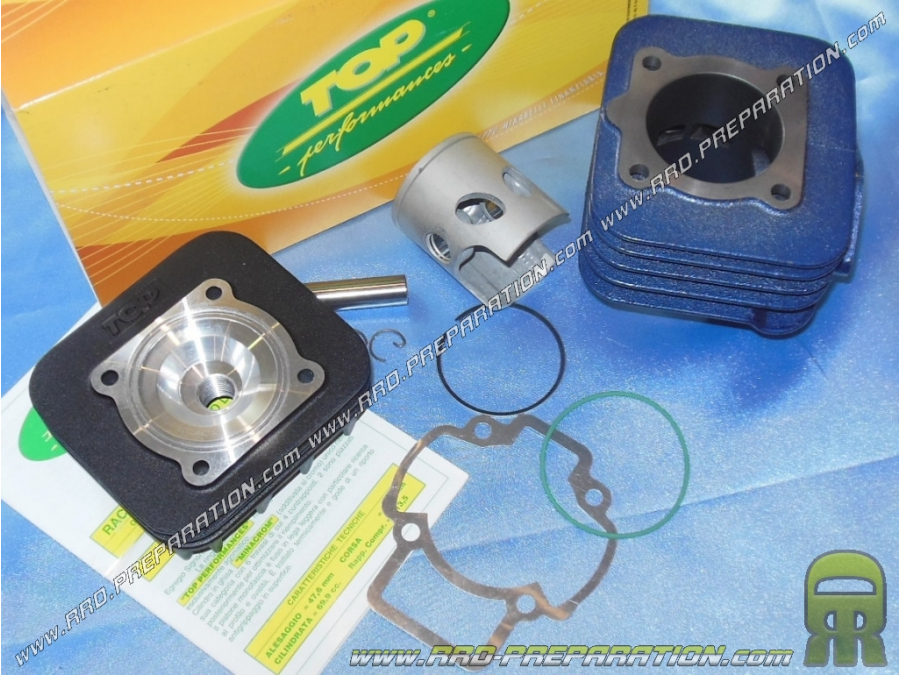

C ontains:

-piston reinforced mono segment d.47,6mm high silicon content
-1 Segments strengthened chrome polished d.47,6mm
-clips (axis rushes) piston G
reinforced seams complete -pack
Axis-piston reinforced 10mm diameter
-culasse d.47,6mm high truncated compression polished room
-cylinder d.47,6mm pig minachrome normal exhaust special admission
TPR -Notice


echappementKit 70cc Ø47,6mm (axe de 12mm) aluminium TOP PERFORMANCES TPR scooter moteur PIAGGIO  GILERA


Motor scooter PIAGGIO, GILERA ... air cooling:

Aprilia Mojito 50 2T 04-08
Aprilia Scarabeo 2T EU2 engine Piaggio 50 2T 10-12
Aprilia Scarabeo 50 2T 09-10 2Q Net
Aprilia Scarabeo 50 2T Street 05-06
Aprilia Scarabeo 50 2T Street 2T Restyling 06-09
Aprilia Sport City One 50 2T 2T 08-11

Derbi Atlantis 2T 50 2T 10-10
Derbi Atlantis 2T 50 2T 07-09 EU2
Derbi Atlantis O2 50 2T 02-02
Derbi Atlantis 50 2T Bullet O2 03-05

Derbi Atlantis O2 City 50 2T 03-06
Derbi Atlantis O2 Red Bullet 50 2T 03-03
Derbi Atlantis Two Chic O2 50 2T 05-05
Derbi Boulevard 50 2T 09-12
Derbi Sonar 2T 50 2T 09-09

GILERA Easy Moving 50 2T 95-96
GILERA Ice 50 2T 01-05
GILERA Stalker 50 2T97-11
GILERA Stalker Naked 50 2T 08-08
GILERA Stalker Special Edition 50 2T 07-08
GILERA Storm 50 2T 94-95
GILERA Storm Euro 2 50 2T 07-07
GILERA Typhoon 50 2T 94-97
GILERA Typhoon X 50 2T 98-99
GILERA Typhoon XR 50 2T 00-00

ITALJET Jet Set 50 2T -00
ITALJET New Torpedo 50 2T -00

Piaggio Diesis 50 01-01 2T
Piaggio Fly 2T 50 2T 05-07
Piaggio Fly 2T 50 2T 10-11
Piaggio Free 50 2T 92-94
Piaggio Free Delivery 50 2T 00-01
PIAGGIO FreeFL 50 2T 95-02
Piaggio Liberty 50 2T 97-05
Piaggio Liberty 50 2T 2T06-08
Piaggio Liberty 50 2T 2T PTT EU2 04-05
Piaggio Liberty RST50 2T 2T 04-04
Piaggio Liberty 50 2T Sport 2T 06-08
Piaggio Liberty 50 2T It MOC2T & 09-12
Piaggio NRG Power DT 50 2T 06-11
Piaggio NRG Power DT Special Series 50 2T 07-08
Piaggio Sfera 50 91-93 2T
Piaggio Sfera Makeup February 50 2T 94-94
PIAGGIO Sfera RST 50 2T 95-97
Piaggio Typhoon 50 2T 01-09
Piaggio Typhoon 50 2T 2T E2 10-12
Piaggio Typhoon 50 2T 2T E3 CH 11-11
Piaggio Vespa ET2 50 2T 97-05
Piaggio Vespa ET2 50 2T 97-00 iniezione
Piaggio Vespa LX 50 2T 2T 05-08
Piaggio Vespa LX 50 2T 2T FL 09-10
Piaggio Vespa LX 50 2T 2T Touring 10-11
Piaggio Vespa LXV 50 2T 2T 06-08
Piaggio Vespa LXV 50 2T 2T NAVY 08-08
Piaggio Vespa S 50 2T 2T & College 07-12
Piaggio Zip 50 2T 92-93
Piaggio Zip 50 2T 95-96
Piaggio Zip 50 2T 94-97 Bimodal
Piaggio Zip 50 Fast Rider 93-94 2T
Piaggio Zip Fast Rider RST 50 2T 96-97
Piaggio Zip 50 2T RST 96-99

And many other models ...

transferts Kit 70cc Ø47,6mm (axe de 12mm) aluminium TOP PERFORMANCES TPR scooter moteur PIAGGIO  GILERA

Optional we offer a preparation course 1, this preparation is a modification of the channels and the exhaust port by increasing the charts and improvement of the duct, it increases the cylinder performance. Improved piston and bottom skirt is also included in the amendment. Allow a little extra time for this preparation!
