§ Kit 85cc high engine Ø47,6mm BIDALOT RACING FACTORY LABEL 2015 (special race 48mm) DERBI euro 1 & 2

Great novelty 2015!!! Here is the new high engine BIDALOT RACING FACTORY 85cc in diameter Ø47,6mm for mécaboite engine DERBI euro 1 & 2. This kit reaches the displacement of 85cm3 thanks to the crankshaft BIDALOT FACTORY stroke 48mm. Developed and studied by BIDALOT, this set is specially intended for competition on the circuit, runs... .

Many modifications have been made such as the 6 transfers and the corrected and upwardly revised bar exhaust. All adapted to the new 50mm diameter bore. These latest modifications have of course one and only goal, to further optimize performance at high revs while preserving maximum torque and power at low and mid-range.

Another plus of this high engine was made directly in the design of the cylinder which is seen adding 4 fixing screws for the cylinder head stud. The cylinder is obviously made of aluminum with its specific treatment and Nikasil coating. The cylinder head stud preserves its high compression combustion chamber and is accompanied by the famous blue cylinder head cover cut in the mass.

Its piston is a top-of-the-range mono segment racing model which will reduce friction and consequently increase high speeds. It is equipped with a thin segment in domed ground chrome steel, its 12 X 39mm axle and reinforced clips. Delivered 100% complete, you will have a complete seals pack with different thicknesses of base seals allowing you to fine-tune your settings at the squish level. Have

A reinforced Racing needle cage is supplied with all the necessary screws (studs, nuts, etc.) for the assembly of this kit. An explanatory note in French will accompany you in the assembly with the recommendations of the BIDALOT brand for the wedging of the top engine as well as the specificities of the LABEL version. This version (LABEL) is available with an average delay of one additional month. Have

Why so much time? For the simple reason that the high engine is completely modified by the racing department of the brand. Preparations drop by hand and special machine from the foundry of the cylinders. This preparation for the craziest among you includes a multitude of modifications which are as follows:

Changes in distribution heights
Modification and optimization of sweep angles (horizontal and vertical)
Changed the height and shape of the exhaust light
Preparation of the cylinder skirts
Optimization of the geometry of the ''hollow'' of the barrette
Metrology and optimized cylinder/piston pairing
Retouching of the beaks of the segment
Checking and adjusting play at segment cut

These cylinders are numbered, so as to avoid any doubtful pseudo Label preparation which could circulate.

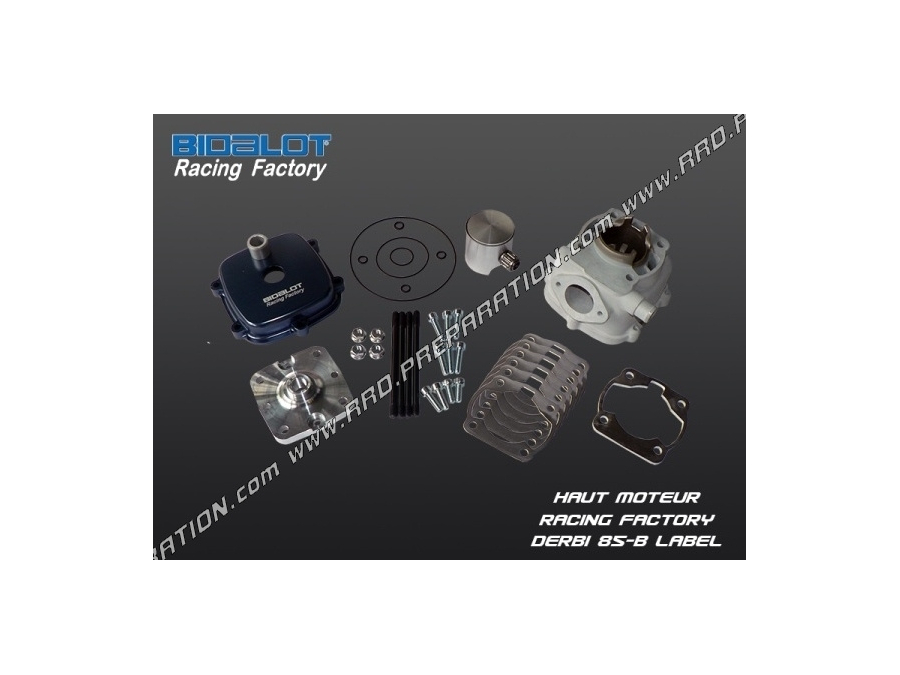

The pack contains:

Aluminum cylinder with nikasil coating Ø47.6mm6 LABEL transfers
Bar exhaust
Cylinder head stud, high compression combustion chamber, machined from solid.
Cylinder head cover Cut in the mass
Hypersilicon racing forged piston
1mm axis offset to reduce friction on the bar
New Specific elliptical profile
Segment Chromed steel, lapped domed
Shaft Ø12x39mm
Set of base gaskets of different thicknesses
Set of cylinder head O-rings
Set of cylinder studs L=114mm
Miscellaneous screws
...
