Not approved on the public highway, only reserved for the competition on closed circuit or road!
This cylinder kit with piston cylinder head in BARIKIT cast is a little common model and rarely marketed. This cylinder has 5 admission transfers including 4 plus 1 side and a rear oval exhaust.
To ensure good strength, BARIKIT used quality cast materials and was accompanied by a dual piston segment to preserve the couple and good strength, architecture is studied and the finish is average, though for such price it still offers excellent performance even though we are far from the quality of a kit MALOSSI MHR, POLINI ....
The piston is an aluminum two-segment with a high silicon content, it has a preparation on the rear apron, which allows for better filling of admission and a sweep and 2 side nipples, it is also equipped with two purposes segments (1 mm thick), they are steels and help with their subtleties combine torque and strength.
The cylinder head is a high compression aluminum model with a hemispherical combustion chamber, polished finish. The latter is fitted with a cylinder head gasket aluminum and guarantee a perfect engine sealing.
In summary, this high engine is a model to the torquey diagrams, relatively good and very solid. This will provide you a kit 70cc cast-powerful and strong. The only negative, no cylinder head bolts is provided either manual or sticker ... but that's a detail.
We recommend installing this kit with at least: carburation 19 or 21 mm flexible mounting, complete intake kit, drive racing, exhaust racing, reinforced crankshaft, reinforced bearings, cold spark plug Iridium racing, motor racing 100% synthetic oil ... .

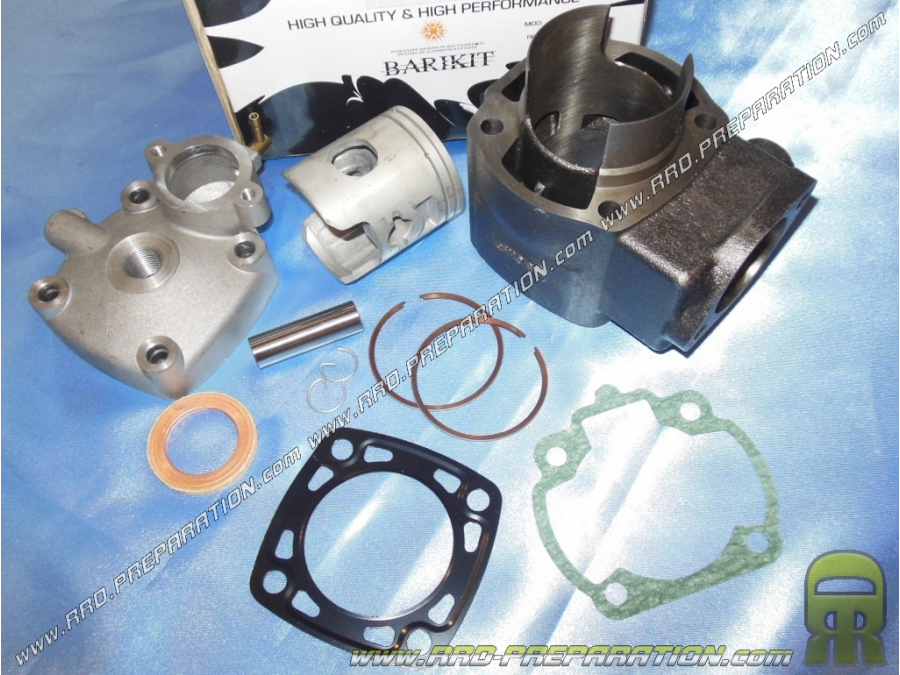

This pack contains:
-cylinder Ø47mm 70cc cast iron with 5 transfers and exhaust
-Culasse High compression hemispherical room polished finish
-piston Bi-segments Ø47mm
X2 segments chrome Ø47 X 1mm for
Axis-piston Ø12mm X 40mm length
-Clips Piston type G
-pack seal
Optional we offer a preparation course 1, this preparation is a modification of the channels and the exhaust port by increasing the charts and improvement of the duct, it increases the cylinder performance. Improved piston and bottom skirt is also included in the amendment. Allow a little extra time for this preparation!
Itself on:
KYMCO Dink 50cc 2 stroke lc
KYMCO Grand Dink 50cc 2 stroke lc
KYMCO 50cc 2 stroke Super9 lc
KYMCO Bet & Win 50cc 2 stroke lc
And many other models ...
