Not homologated on public roads, only reserved for competition, does not respect the highway code in any way!
A very good kit whose reputation is second to none, this beautiful kit is the well-known and renowned TOP ROSE with stud, it is certainly in cast iron but treated with MINACROM and in a domed hard chrome mono segment to allow the highest speeds, diameter 49.5 millimeters, reinforced piston in thin single segment, very advanced diagrams based on mid-torque/mid high-rev, it has as usual on new motor parts grease nipples under the sides, the kit is very clean and finished . It is the evolution of the normal pink Top performances thanks to its stud bolt (bolt in 2 parts) and its reinforced needle cage included in the kit. This cylinder head has a polished tapered high compression chamber and therefore allows relatively good performance.
We recommend it to those who want something between big power and solidity, after its color depends on everyone's taste, some will like it, others not but it is the most powerful 80cc cast iron kit in normal race with the POLINI d.50mm melting. We will be able to make it reach even more power thanks to a preparation because the piston is really not worked enough on this type of kit.
As an option, we offer you a STAGE 1 preparation, this preparation includes a selection of the best part from our stock, a marked improvement in the shape and the exhaust diagram as well as a special retouching of the cylinder skirt and the piston. for better sweeping/filling according to our best tests. An improvement in lubrication is made on passage in view of the speeds obtained after preparation. This preparation requires an additional period of 2 to 15 days depending on our availability! It requires tools and around 4 to 5 hours of work on this cylinder. The price is therefore accordingly.
material: cast iron
bore: Ø49.5mm
actual displacement: 75.05cc
for race: origin 39.00mm
for connecting rod: original size 85mm

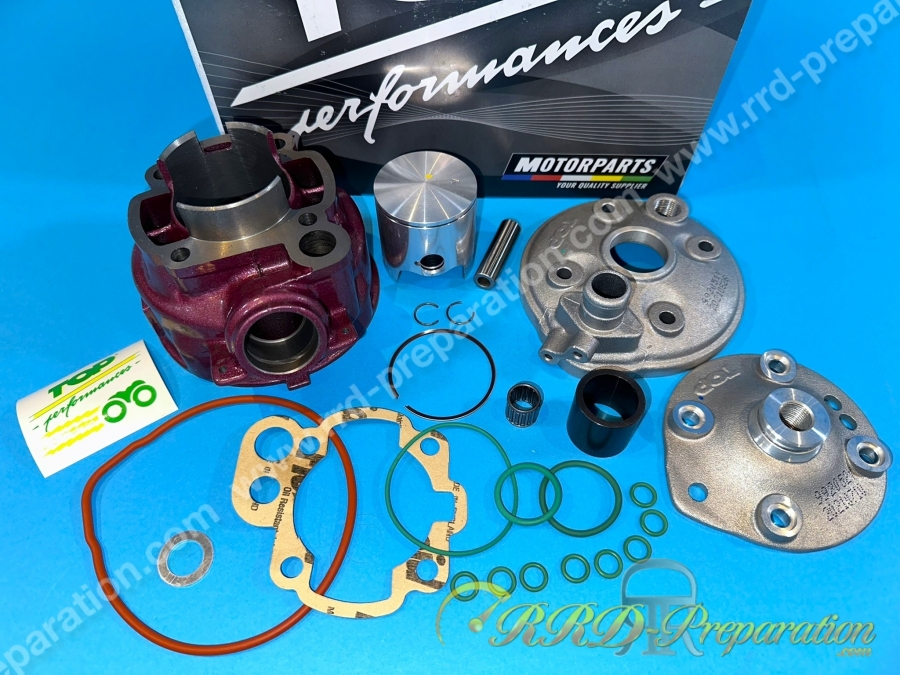

The pack contains:
- a piston d.49.5 mm single flat segment
- original diameter piston pin
- 2 piston clips type G
- reinforced full seal pocket
- polished high compression cylinder head stud
- gray cylinder head cover
- chrome cast iron cylinder 5 transfers normal pink exhaust
- Euro 1/2 exhaust spacer
- 1 reinforced end curved chrome segment
- manual in French/English/Italian
-reinforced needle cage
We advise to mount at least to accompany this kit:
19mm carburetion / reinforced bearings and crankshaft / cold competition spark plug / tuning / racing exhaust
Mounts on 50cc motorcycles with gearbox equipped with the minarelli am3, am4, am5, am6 euro 1, am6 euro 2 engine :
APRILIA RS 50cc am6 engine from 1997 to 2006 (warning news after 2006 in derbi euro 3 engine)
APRILIA RX am6 engine (warning news after 2006 in derbi euro 3 engine)
APRILIA MX am6 engine (warning news after 2006 in derbi euro 3 engine)
APRILIA TUONO 50cc am6 engine from 1997 to 2006 (warning news after 2006 in derbi euro 3 engine)
BETA RR
BETA RR ALU
BETA CRE
HONDA HM
HONDA CRE
HONDA BAJA
HUSQUVARNA WXE
HUSQUVARNA CH
HM DERAPAGE
HM CRE
MALAGUTI DRAKON
MALAGUTI XTM
MALAGUTI XSM
FANTIC CABALLERO
PEUGEOT XP6
PEUGEOT XPS
MOTORHISPANIA RYZ
PEUGEOT XPS
PEUGEOT XP STREET
PEUGEOT XP STREET EVO
PEUGEOT XR6
MOTORHISPANIA RX
PEUGEOT XR7
MOTORHISPANIA RX-R
RIAJU RS1
RIEJU RS2
RIEJU RS2 MATRIX
RIEJU RS2 MATRIX PRO
RIEJU SMX
RIEJU MRX
RIEJU SPIKE
KEEWAY TX EN
YAMAHA DT
MBK X-LIMIT
YAMAHA TZR
MBK X-POWER
SHE RC O SM
SHE RC O EN DURO
SHE RC O HRD
SHE RC O EN DURO
And many other machines!
