Top unapproved engine to the public road, only reserved for the competition on the track, road closed.
Here are the top complete engine 75cc diameter Ø48 mm 39,20 mm in normal race (as the origin) of the great ITALKIT brand for mécaboite Minarelli AM6 engine. The brand as usual, proves these quality parts, its desire to offer the exceptional material for all drivers and enthusiasts.
This aluminum cylinder Ø48 mm (model GILARDONI 308) has a specific heat treatment with internal coating consists of silica & niquel. It offers a real displacement 70,89cc. A high range consists of ensuring strength and reliability. With 6 transfers of admission and optimized oval exhaust port. All with a perfect finish and architecture allowing maximum performance. An exhaust ring is provided, for passing the exhaust of a Ø28 diameter to 25mm or vice versa.
In addition, this cylinder is accompanied by a two segment piston in VERTEX. Suffice to say the material of the highest quality whose reputation and quality is more to discuss. The piston is equipped with 2 chrome segments for 1mm thickness favoring the times and torque without neglecting the ramp-up by reducing friction purposes segments.
With the heat treatment of the piston, forms and composition, it was very well designed and studied in order to offer a better thermal expansion, agreeing at the same time perfectly with this cylinder to support the free times, brutal change plans and a prolonged endurance on circuit, extreme conditions.
Finally, a single cylinder block (one part) is supplied with the cylinder. She also manufacture excellent and beautifully engraved with the brand name laser on the cover. Mag model for better heat dissipation, a better cooling and therefore better performance.
Model mounted on incoming and o-ring for more pre compression. The tapered shape of combustion chamber, polished finish is also seen in improved and optimized with a compression ratio revised upwards. A set along very well suited for the cylinder.
Obviously delivered complete as presented, you will not be disappointed in any of this material, which guarantees extreme reliability (provided as a perfect fit), a quality / price indisputable.
We advise you to accompany this high engine with at least: a carburizing see 21 24 Soft mounting an intake kit, reinforced crankshaft bearing, internal rotor ignition without lights, cold candle racing, motor racing oil, exhaust relaxing racing ....

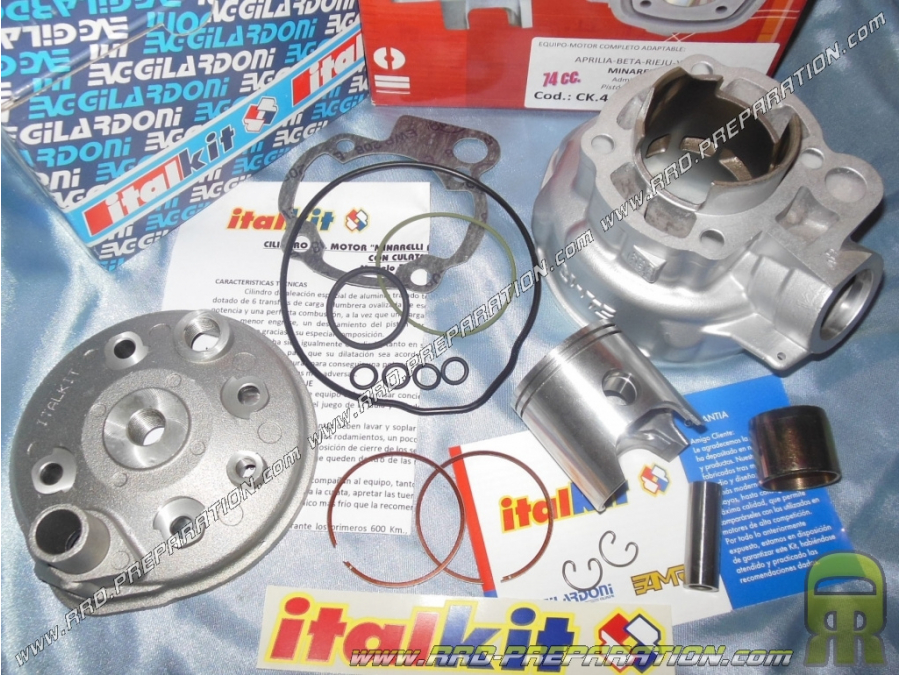

contains:
-cylinder Ø48 mm aluminum 6 transfers with oval exhaust
-Culasse Aluminum mono block polished truncated combustion chamber
-piston Bi segment VERTEX high silica content
-2 Steel segments for chrome 1mm thick
Axis-reinforced piston Ø12 X 37mm
Crab-like piston -Clips
-pack Complete joint
-Bague Exhaust
-Notice
-Autocollant
Optional we offer a preparation course 1, this preparation is a modification of the channels and the exhaust port by increasing the charts and improvement of the duct, it increases the cylinder performance. Improved piston and bottom skirt is also included in the amendment. Allow a little extra time for this preparation!
This high engine fits the 50cc motorcycles following gearbox fitted the engine MINARELLI AM3, AM4, AM5, AM6 euro 1 am6 euro 2:
-APRILIA RS AM6 engine from 1997 to 2006 (after 2006, attention to motor past DERBI euro 3)
-APRILIA RX engine AM6 (after 2006, attention to motor past DERBI euro 3)
-APRILIA MX engine AM6 (after 2006, attention to motor past DERBI euro 3)
-Beta CRE
RR -Beta
-Beta RR ALU
-Honda HM
-Honda CRE
-Honda BAJA
-HUSQUVARNA WXE
-HUSQUVARNA CH
-HM DERAPAGE
-HM CRE
-MALAGUTI DRAKON
-MALAGUTI XTM
-MALAGUTI XSM
-FANTIC CABALLERO
-PEUGEOT XP6
-PEUGEOT XPS
-PEUGEOT XP STREET
-PEUGEOT XP STREET EVO
-PEUGEOT XR6
-PEUGEOT XR7
-MOTORHISPANIA RYZ
-MOTORHISPANIA RX-R
-MOTORHISPANIA RX
-RIEJU RS1
RS2 -RIEJU
-RIEJU RS2 MATRIX
-RIEJU RS2 MATRIX PRO
SMX -RIEJU
-RIEJU MRX
-RIEJU SPIKE
-KEEWAY TX EN
-YAMAHA DT
-MBK X-LIMIT
-YAMAHA TZR
-MBK X-POWER
SM -SHERCO
-SHERCO ENDURO
-SHERCO HRD
-SHERCO ENDURO
And many other machines!
