Kit 80cc high engine Ø50mm PARMAKIT aluminium DERBI euro 3
  • Kit 80cc high engine Ø50mm PARMAKIT aluminium DERBI euro 3

Kit 80cc high engine Ø50mm PARMAKIT aluminum DERBI euro 3 & 4

23170.00

A huge cylinder! At the height of TEAM MHR. Exhaust boosters, large diameter 50mm, single segment, aluminum ...

Stage 1 engine preparation
€324.99
Quantity
Shipping in 1-3 days

Description

Not approved, prohibited on the road, reserved for competition and closed circuits, private.

A real concentrate of performance! The complete high engine kit 80cc Ø50mm PARMAKIT for mécaboite DERBI euro 3 and 4. With its nikasil treated aluminum cylinder, its VERTEX piston, its specific bi-part cylinder head, its general architecture ... everything has been thought out and designed to offer torque, speed and sensations!

admission Kit 80cc haut moteur Ø50mm PARMAKIT aluminium DERBI euro 3

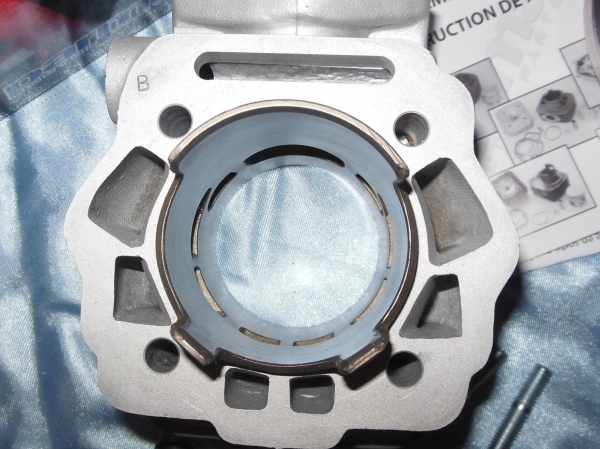

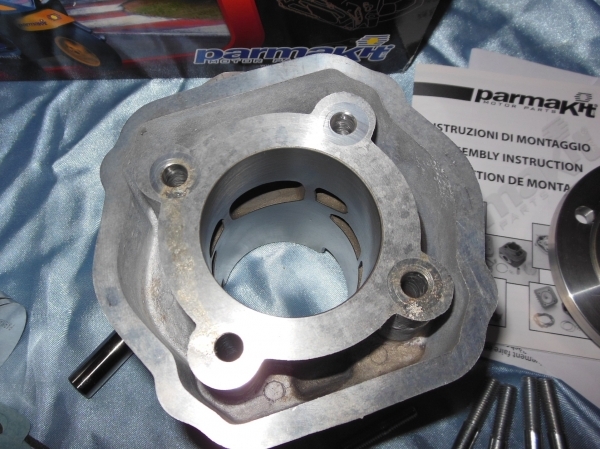

Its aluminum cylinder has 4 lateral transfers and 2 at the rear, therefore 6 enlarged, enlarged and reworked admission transfers. A monstrously large oval booster exhaust equips this high engine! At PARMAKIT, we are not laughing! The photos speak for itself, the finish is obviously excellent and upscale. The whole is greased, hence the orange color that we notice in some photos.

échappement Kit 80cc haut moteur Ø50mm PARMAKIT aluminium DERBI euro 3

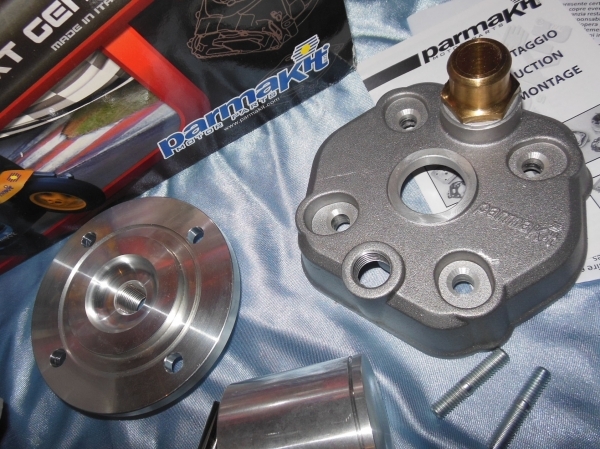

This makes it an engine with guaranteed performance while preserving of course increased strength thanks to the treatment given to the cylinder. With extensive diagrams, this kit is accompanied by a high silicon aluminum cylinder head, two-part stud model with high compression combustion chamber, hemispherical shape with polished finish.

culasse Kit 80cc haut moteur Ø50mm PARMAKIT aluminium DERBI euro 3

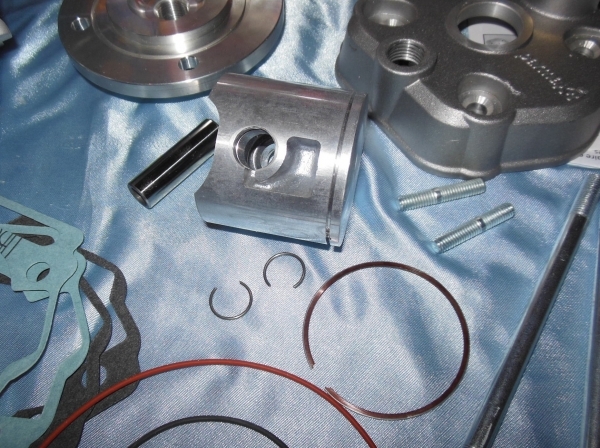

The piston is therefore the VERTEX single segment model with pre-ground domed hard chrome end segment, its 12mm X 40mm axis and its 1mm thick C piston pin clips. It favors high speeds but does not neglect the torque and remains very solid!

piston Kit 80cc haut moteur Ø50mm PARMAKIT aluminium DERBI euro 3

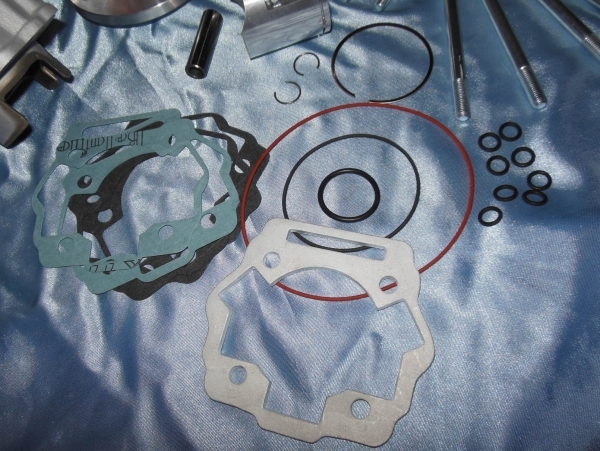

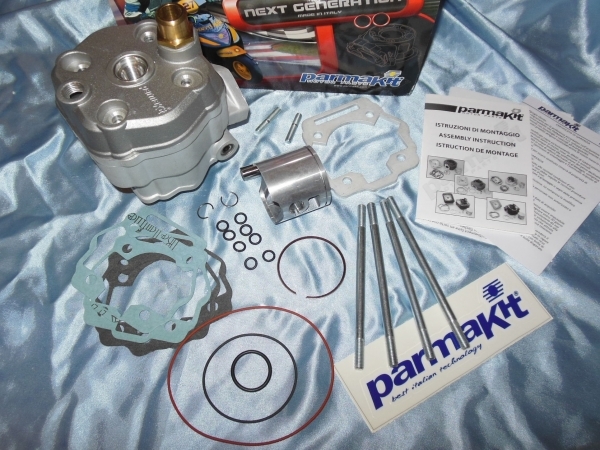

Clearly a monstrously high performance engine, delivered 100% complete as presented with its bi-part cylinder head, its 6-transfer aluminum cylinder, its complete VERTEX single segment piston, complete joint pack with different thicknesses of base gaskets to make the squish, 4mm light aluminum base block for those who wish to adapt it to a long stroke, a set of 4 cylinder studs plus 2 exhaust studs, instructions ...

joints Kit 80cc haut moteur Ø50mm PARMAKIT aluminium DERBI euro 3

We advise to accompany this kit with: very reinforced crankshaft, celeron bearings, 19mm carburetion minimum recommended, racing exhaust, racing ignition, cold spark plug ...

vue Kit 80cc haut moteur Ø50mm PARMAKIT aluminium DERBI euro 3

As an option we offer a stage 1 preparation, this preparation is a modification of the channels and the exhaust port by increasing the diagrams and improving the duct, it increases the performance of the cylinder. An improvement to the piston and the bottom of the skirt is also included in this modification. Allow a little extra time for this preparation!

Product Details
23170.00
1 Item
New product

Data sheet

Lumière d'échappement
To boost (3 lights)
Diameter (Ø):
50mm
Matière
Aluminium
Refroidissement
Liquid
Nombre de transferts d'admission
6 transfers
Cylinder head:
A stud (2 parts) hemispherical
Nombre de segment
Mono-segment (1 segment)

Specific References

ean13
8056590220047
