Kit 70cc Ø47mm TOP PERFORMANCES Rose 8 cylinder head stud transfers (10mm axis) minarelli horizontal liquid (nitro, aerox, ...)
  • Kit 70cc Ø47mm TOP PERFORMANCES Rose 8 cylinder head stud transfers (10mm axis) minarelli horizontal liquid (nitro, aerox, ...)

Kit 70cc Ø47mm TOP PERFORMANCES Pink 8 transfers cylinder head with stud (10mm axis) minarelli horizontal liquid nitro, aerox,

9921160

The famous TOP PERFORMANCES ROSE with top of the range cylinder head with stud (two parts) diameter 47mm solid and powerful.

Engine preparation
€224.99
Quantity
Shipping in 1-3 days

Description

The most powerful 70cc kit of cast iron kits for liquid horizontal minarelli. The pink top with stud bolt option has a range of high-end technical features. The pink cast iron cylinder treated MINACROM (cast iron has added chrome) has 8 transfers and a normal exhaust. This normal exhaust (in one part) is specially shaped and will preserve solidity in full power thanks to its unusual diagrams, the emission diagrams are at 127 ° and the geometric compression ratio of 14: 1 (effective 7.3: 1). The cylinder head has a 2-part stud will provide you with much more efficient cooling, therefore additional strength, less wear and above all maximum performance.



The finish of the cylinder is excellent. The silver-treated piston is in a single domed chrome s10 segment to allow very high speeds. In short, top performances as always hit hard, this cylinder is really overpowered (14hp max) and very torquey while preserving maximum strength. Mount it with a squish between 0.9 and 1mm, the cylinder head tightening should be around 15 + 1 NM. Now a prepared version exists, you can take a look here . The 8 intake transfers are not here for the sake of the sun or the trade, they are there to improve the sweep which is quite bad on horizontal minarelli, they really allow an additional performance without compromising the reliability, moreover the channels of transfers are very well studied.



We recommend to accompany this kit : crankshaft and reinforced bearings, racing exhaust (the tpr nardo will suit perfectly, minimum 21mm carburetion, cold spark plug, removal of separate greasing, mixture with 100% shyntese oil.

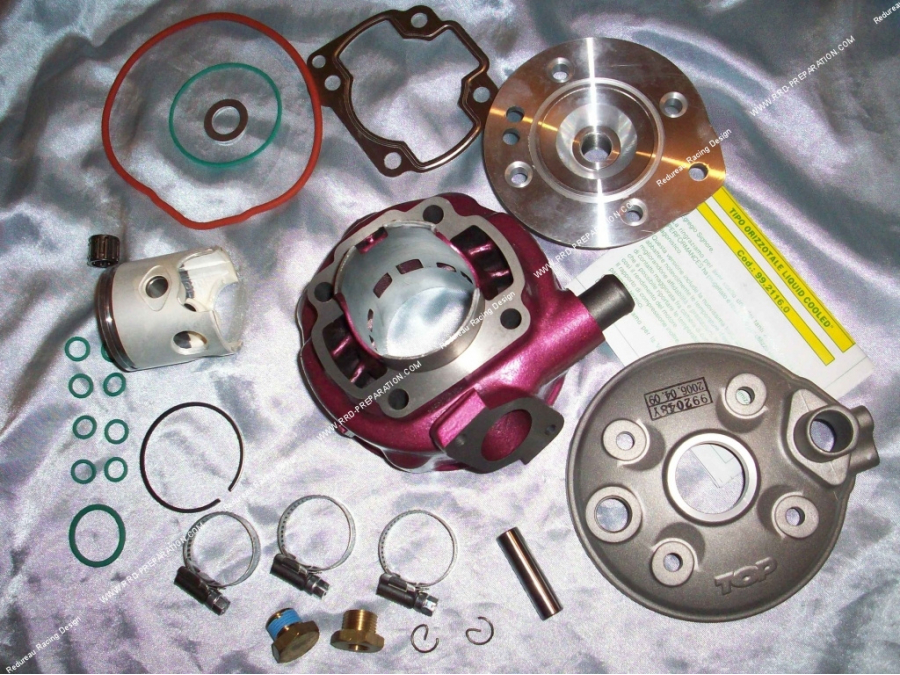

parts included in this pack :

complete seal kit

8t pink cylinder

breech block

cylinder head cover

Segment

Piston

Piston clips

Piston pin d.10mm

Complete instructions

Cylinder head accessories

Reinforced needle cage for 10mm axle



Spare parts :

Segment

Complete cylinder head

Piston

Piston clips

Piston pin

Needle cage

Cylinder head accessories

seals

As an option we offer a stage 1 preparation, this preparation is a modification of the exhaust port by increasing the diagrams and improving the duct, it increases the performance of the cylinder. An improvement to the bottom of the skirt is also included in this modification. Allow a little extra time for this preparation!

Product Details
