Reference: 061316476
Piston mono segment AIRSAL Ø47,6mm axis 10mm for kit 70cc AIRSAL minarelli horizontal air
Single segment piston for your 70cc AIRSAL T6 kit. Ideal to start afresh.
Banner
Attention parts only reserved for the competition, prohibited on road!
Here is the best value kits 70cc aluminum market. This is the AIRSAL T6 70cc Ø47,6mm. This cylinder low price does not neglect the quality or performance, 47,6mm diameter high-end aluminum. It has 6 transfers of admission and an exhaust with bar. Also available in model without bolt.
Charts are pretty high at admission and low enough to escape making the torquey and not difficult to follow or set. The piston is a mono-segment model with side grease! Clearly this kit has a very good ratio torque / power, it offers plenty of performance while preserving a great strength!
The piston is mono-segment model with chrome domed segment hard, it has side oilers and a light preparation on the rear apron to improve scanning. The finish is really on top. We advise you to align transfers to lower casings engine.
The cylinder head high compression polished hemispheric model. This kit will certainly be less effective than MALOSSI MHR, BIDALOT or Polini ... But there will already very good.
We recommend to accompany this kit with: carburation 19mm (carbon flaps slats 0.30mm or 0.35mm), crankshaft and reinforced bearings, exhaust racing, candle racing ...

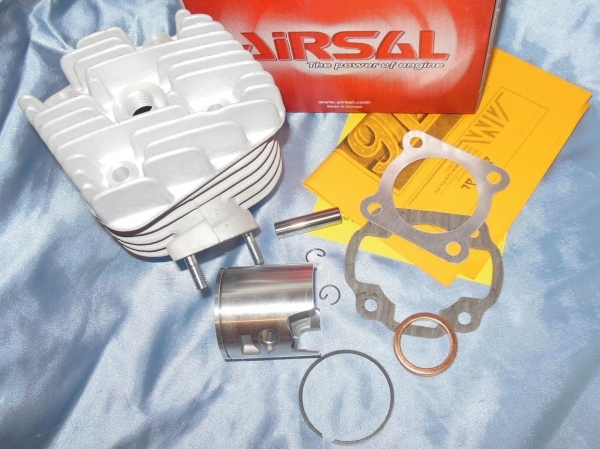

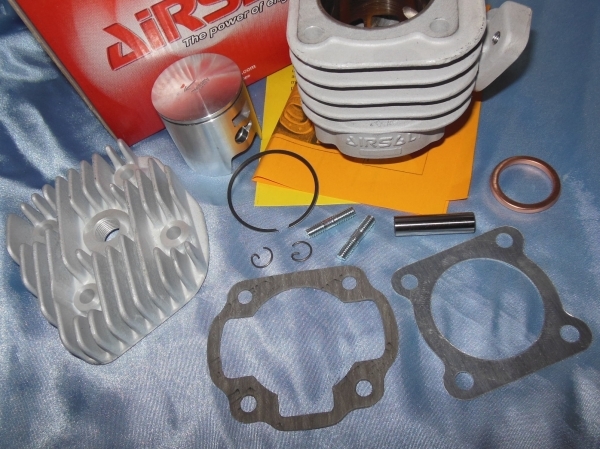

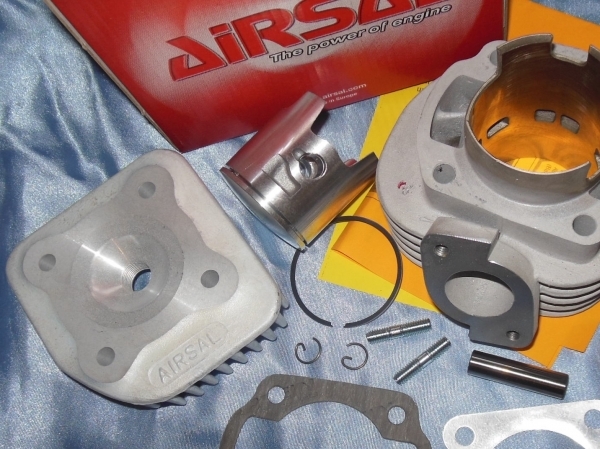

The pack contains:

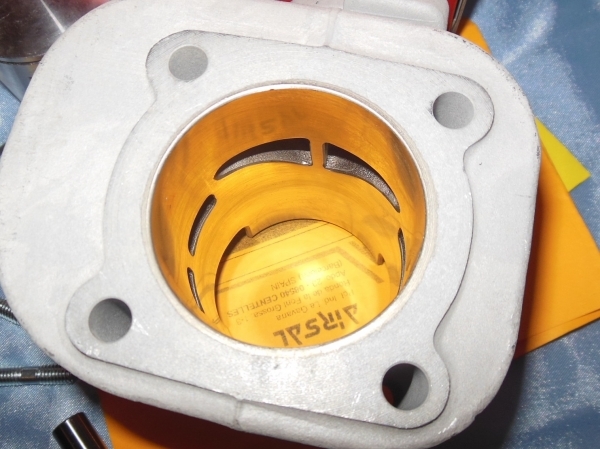

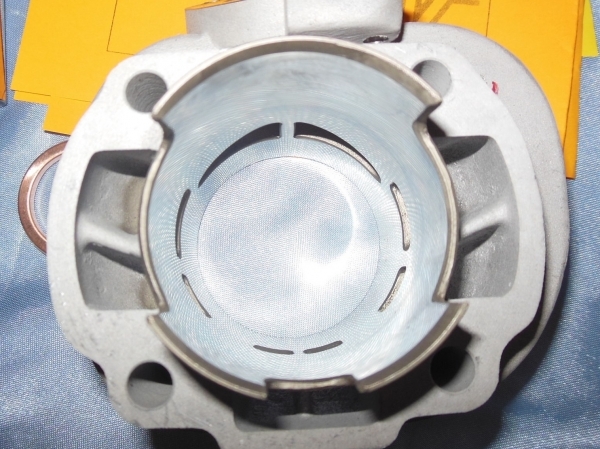

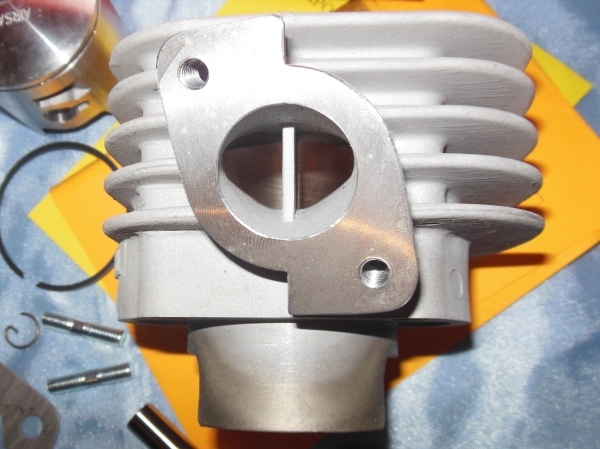

X1 aluminum cylinder 6 transfers
X1 hemispherical aluminum cylinder head chamber
X1 Piston mono segment with preparation rear apron and side nipples
X1 end segment chrome domed hard 1mm thick
X1 Piston pin Ø10mm X 38mm
X2 piston Clips G
X1 Pack joined high engine
X2 Studs exhaust
-Notice ...
Optional we offer a preparation course 1, this preparation is a modification of the exhaust port by increasing the charts and improvement of the duct, it increases the cylinder performance. Improved bottom skirt is also included in the amendment. Allow a little extra time for this preparation!
Mounts on scooters and quads 50cc 2T air:
Aprilia SR 50 2T 1994->
APRILIA RALLY 50 2T (MINARELLI)
APRILIA SCARABEO 50 2T (MINARELLI)
APRILIA SONIC 50 2T
Aprilia SR WWW 50 2T
BETA ARK 50 2T
BENELLI 491 GT 50 2T (MINARELLI)
BENELLI K2 50 2T
BENELLI NAKED 50 2T
BENELLI PEPE LX 50 2T euro 2 (QJ1E40QMB-4)
BETA QUADRA 50 2T
BENELLI QuattronoveX 50 2T euro 2
BSV AX 50
BSV GZ 50
CPI ARAGON GP 50 2T
ICC HUSSAR 50 2T 2003->
CPI OLIVER 50 2T 2003->
CPI POPCORN 50 2T 2003->
EXPLORER CRACKER 50 2T 2003-> (GE 1E 400 MB)
GARELLI TIESSE 50R 50 2T euro 2 (1E40QMB)
Hüpper MONTECARLO 30 50 2T (1E40QMB)
KEEWAY F-ACT 50 2T
KEEWAY GOCCIA 50 2T (KW1E40QMB-4)
KEEWAY HURRICANE 50 2T euro 2 (KW1E40QMB)
KEEWAY MATRIX 50 2T (KW1E40QMB-4)
KEEWAY PIXEL 50 2T euro 2 (KW1E40QMB)
KEEWAY RY8 50 2T (KW1E40QMB-4)
MALAGUTI F10 50 2T
MALAGUTI F10 WAP 50 2T euro 2 (QJ CMA03C * *)
MALAGUTI F12-PHANTOM 50 2T
MALAGUTI F12 R ARIA 50 2T euro 2 (QJ CMA02C * *)
MALAGUTI YESTERDAY 50 2T
MBK EVOLIS 50 2T
MBK FIZZ 50 2T
MBK FLIPPER 50 2T
MBK FORTE 50 2T
MBK HOT CHAMP 50 2T
MBK MACH G 50 2t
MBK OVETTO 50 2T
MBK SORRISO 50 2T 1996->
MOTRON SYNCRO 50
MOTRON THUNDER'S 50
YAMAHA AXIS 50 2T
YAMAHA BREEZE 50 2T
YAMAHA JOG ER 50 2T
YAMAHA JOG 50 2T
YAMAHA JOG R 50 2T
YAMAHA JOG Z 50 2T
YAMAHA NEO'S 50 2t
YAMAHA VINO 50 2T
YAMAHA WHY 50 2T
YAMAHA ZEST 50 2T
Quads 50cc 2-stroke air cooled:
AEON 50cc REVO, MINIKOLT, COBRA ...
ULTIMATE MASAI 50cc, XL 50, R 50 XL, INFINITE, ...
DINLI LX 50cc DL601, DL603, DINO, T REX ...
ADLY 50cc RS, SUPER SONIC ...
AERO 50cc ...
ETON VIPER 50cc, NXL 50, ...
Kasea 50cc SKYHAWK ...
POLARIS OUTLAW 50cc, PREDATOR, ...
SMC / 50cc BAROSSA UR5 ...
And other models ...
