Kit 80cc high engine Ø50mm BARIKIT BIG BORON cast iron DERBI euro 1 & 2
  • Kit 80cc high engine Ø50mm BARIKIT BIG BORON cast iron DERBI euro 1 & 2

Kit 80cc high engine Ø50mm BARIKIT BIG BORE cast iron DERBI euro 1 & 2

EQ-779

The famous large diameter of BARIKIT for DERBI motorcycle ... Almost identical to FURYTECH!

Engine preparation
€175.83
Quantity
Shipping in 7 to 12 days depending on arrivals BARIKIT

Description

Attention, prohibited on public roads! This cylinder exceeding the engine displacement of 50cc is only reserved for competition on the circuit, run ....



Here is the high 80cc engine from the Spanish brand BARIKIT for mécaboite driving DERBI euro 1 and 2. This model offers good power and a very large increase in torque. The cylinder is a cast iron model, so it offers great reliability, ideal for endurance, stunt….

vue Kit 80cc haut moteur Ø50mm BARIKIT BIG BORE fonte DERBI euro 1 & 2

The diagrams have an excellent torque / power ratio. The cylinder has a very large booster exhaust and 5 upward revised intake transfers. The base preserves an original shape.With its diameter of 50mm, it offers a real displacement of 78.53cc along with the original 40mm stroke crankshaft of the DERBI engine.

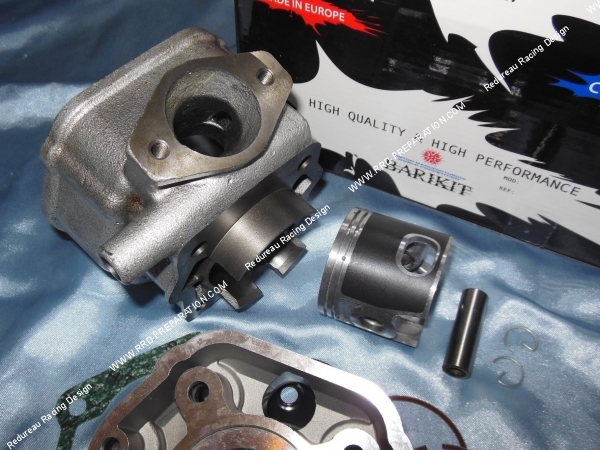

booster Kit 80cc haut moteur Ø50mm BARIKIT BIG BORE fonte DERBI euro 1 & 2

The piston is a two-segment model to once again preserve torque and strength. This piston has received a black graphite treatment, it also has an opening on the back for improved sweeping and side grease nipples! The segments delivered with the kit are made of very fine special steels to allow high speeds while preserving torque.

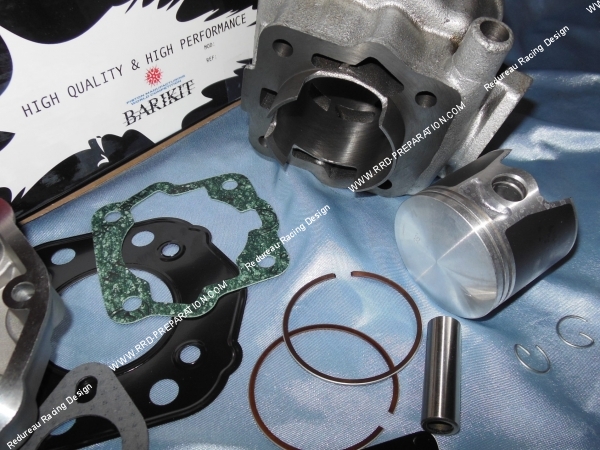

piston Kit 80cc haut moteur Ø50mm BARIKIT BIG BORE fonte DERBI euro 1 & 2

The cylinder head has a high compression chamber, hemispherical shaped model with a polished finish. The cylinder has a high temperature metal gray paint offering a nice aesthetic. Clearly, it looks a lot like the FURYTECH but it is nevertheless better worked with materials used more upscale. This cylinder will therefore offer you reliability, power (especially with good diagrams, thin segments and an exhaust with boosters) and a lot of torque!

exhaust Kit 80cc high engine Ø50mm BARIKIT BIG BORON cast iron DERBI euro 1 & 2

To top it off, BARIKIT has opted for a reinforced aluminum gasket for the cylinder head and the thermal unit has 2 screw locations on each side in order to reinforce it. We only regret that the channels are not worked enough and that the lateral bolts of the cylinder head are not delivered, nor any cylinder head screws. This is just a detail… in view of the price defying all competition. Please note, depending on the arrivals, we may receive the kit in black.

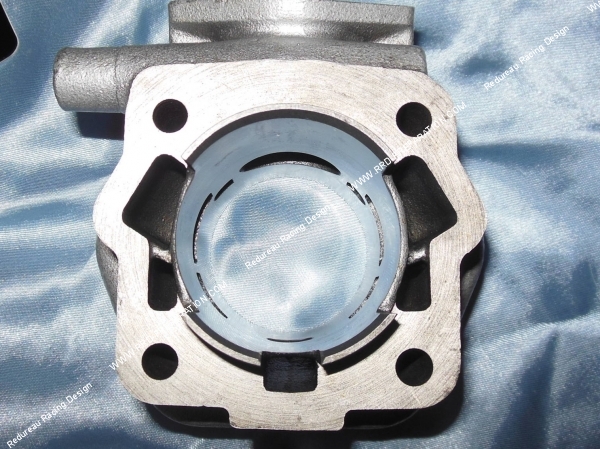

transferts Kit 80cc haut moteur Ø50mm BARIKIT BIG BORE fonte DERBI euro 1 & 2



We recommend that you accompany this high engine with at least m: Ø21mm carburetor (24 / 25mm to use it properly), racing exhaust, cold spark plug (B9 / B10 depending on temperature), reinforced crankshaft and bearings.

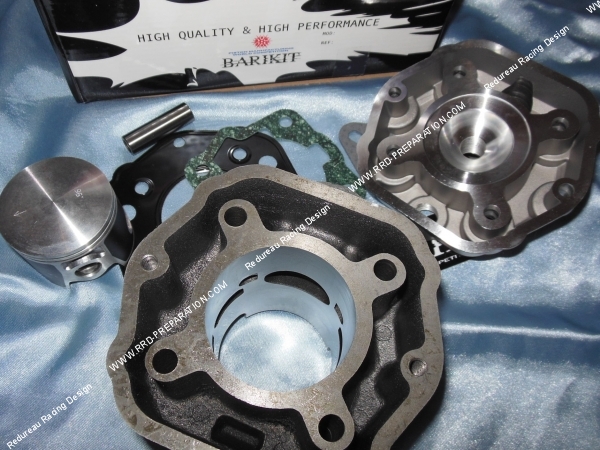

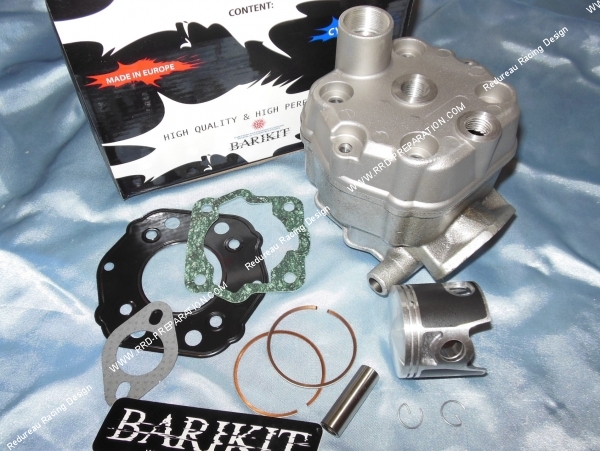

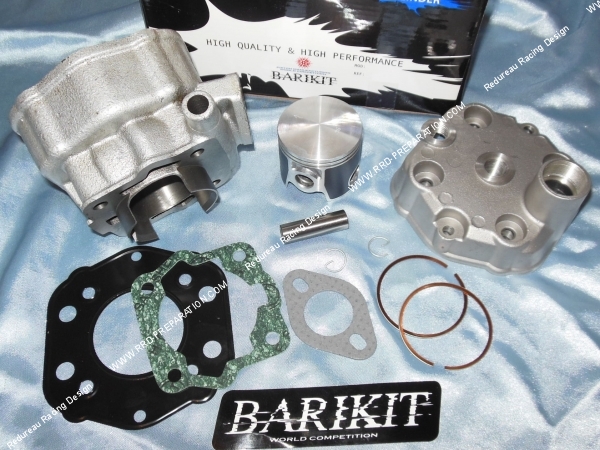

The pack contains:

-Cylinder cast iron Ø50mm 5 transfers with large exhaust boosters
-High compression aluminum cylinder head with polished finish
-Piston bi segments Ø50mm with side grease nipples, open rear skirt and black graphic treatment
-X2 fine chromed steel segments
-Axis of piston Ø12mm X 40mm in length
-X2 piston clips type G
-Gaskets of pot, cylinder head and base


zoom Kit 80cc haut moteur Ø50mm BARIKIT BIG BORE fonte DERBI euro 1 & 2

As an option we offer you a stage 1 preparation, this preparation is a modification of the exhaust port by increasing the diagrams and improving the duct, it increases the performance of the cylinder. An improvement to the bottom of the skirt is also included in this modification. Allow a little extra time for this preparation!

This high engine is mounted on 50cc motorcycles with gearboxes equipped with DERBI Euro1 and Euro2 engines:

BULTACO Astro enduro 50cc
BULTACO Lobito supermotard 50cc

DERBI GPR 50 Nude before 2004 (EBS050)
DERBI GPR 50 Racing before 2004 (EBS050)
DERBI GPR 50R Replica year 2001 to 2004
DERBI GPR 50cc year 1998 to 2001
DERBI Senda 50cc before 2000 (tubular frame)
DERBI Senda 2000 50cc before 2004 (perimeter frame) Euro2
DERBI Senda DRD supermotard before 2000 (tubular frame)
DERBI Senda DRD supermotard before 2004 (perimeter frame) Euro 2
DERBI Senda Enduro before 2000 (tubular frame)
DERBI Senda R DRD Enduro before 2000 (tubular frame)
DERBI Senda R DRD Enduro before 2004 (perimeter frame) Euro2
DERBI Senda SM before 2000 (tubular frame)
DERBI Senda SM before 2004 (perimeter frame) Euro 2
DERBI Senda X-Race 2000 before 2004 (perimeter frame) Euro 2
DERBI Senda X-Race Trail before 2000 (tubular frame)
DERBI Senda X-Trem Enduro before 2000 (tubular frame)
DERBI Senda X-Trem Enduro before 2004 (perimeter frame) Euro 2
DERBI Senda X-Trem SM before 2000 (tubular frame)
DERBI Senda X-Trem SM before 2004 (perimeter frame) Euro 2

GILERA GP Replica 50cc
GILERA GSM 50cc
GILERA HAK Euduro 50cc
GILERA RCR Euduro 50cc (tubular frame)
GILERA SMT SM 50cc (tubular frame)
GILERA Sioux Enduro 50cc
GILERA Zulu Enduro 50cc

And many other models ...

Product Details
EQ-779
New product

Data sheet

Transferts a l'embase
Like the origin (aligned to the original casings)
Nombre de transferts d'admission
5 transferts (comme l'origine)
Cylinder head:
A stud (2 parts) hemispherical
Nombre de segment
Bi-segment (2 segments)
Cylindrée réelle
78.53cc
Lumière d'échappement
To boost (3 lights)
Diameter (Ø):
50mm
Matière
Melting
Displacement:
80cc
Refroidissement
Liquid

Specific References

ean13
8435031130143
