Reference: S/41
Segment Ø47 X 1mm for cast iron and aluminum BARIKIT kit on SUZUKI RMX, MINARELLI am6, DERBI, MBK, YAMAHA and PIAGGIO ...
Ideal quality segment for the maintenance of your BARIKIT 70cc high engine kit.
Banner
Not approved on the public highway, only reserved for the competition on closed circuit or road!
This cylinder kit with piston head BARIKIT cast is a little common model and rarely marketed. This cylinder has 5 admission transfers including 4 plus 1 back side and an exhaust boosters with an output enlarged oval. With its 47mm bore diameter, it offers real 67,66cc normal race (like the original).
To ensure good strength, BARIKIT used quality cast materials and was accompanied by a dual piston segment to slow high revs to maintain the torque and good strength, the internal architecture is studied and finishing average, however, for such a price it still offers excellent performance even though we are far from the quality of a kit MALOSSI MHR, POLINI ....
The piston is thus a two-segment aluminum with a high silicon content, thanks to that it will be a major asset in the couple, the strength of the engine and slowing high speeds by increased friction, the two segments are fine ( 1 mm thick), they are chromium steels and allow through their subtleties combine high torque and engine systems.
The cylinder head is a high compression aluminum model with a hemispherical combustion chamber, polished finish. The latter is mounted on O-ring and guarantee a perfect engine sealing.
In summary, this high engine is a model to the torquey diagrams, relatively good and very solid. Nothing prevents you to mount it with a crankshaft long race 43mm with a wedge base of 1.5 mm, which offer you a kit 75cc cast-powerful, strong and out of the common. The only negative, no cylinder head bolts is provided either manual or sticker ... but that's a detail.
We recommend installing this kit with at least: carburation 19 or 21 mm with flexible mounting, complete intake kit, exhaust racing, reinforced crankshaft, reinforced bearings, cold candle racing Iridium racing motor oil 100% synthetic ....

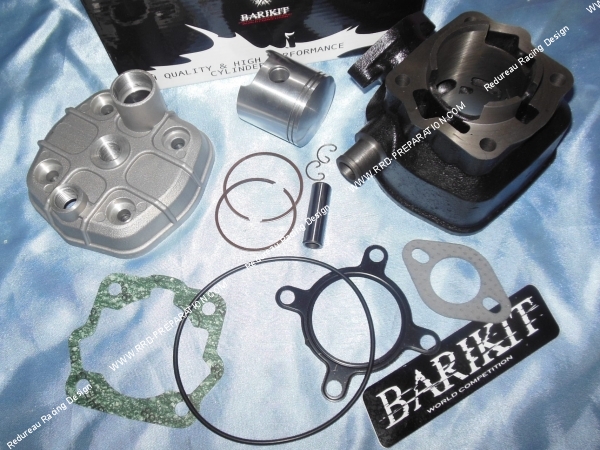

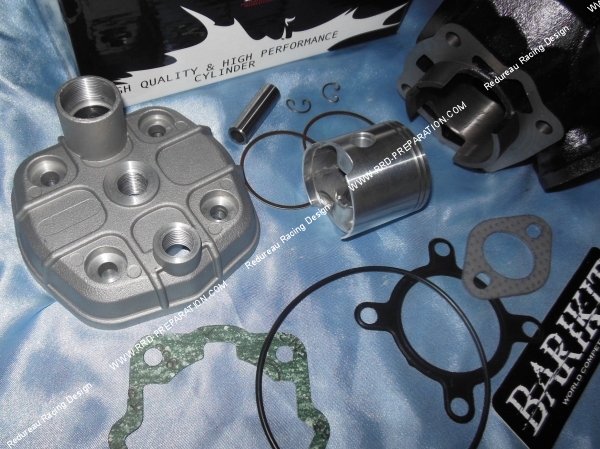

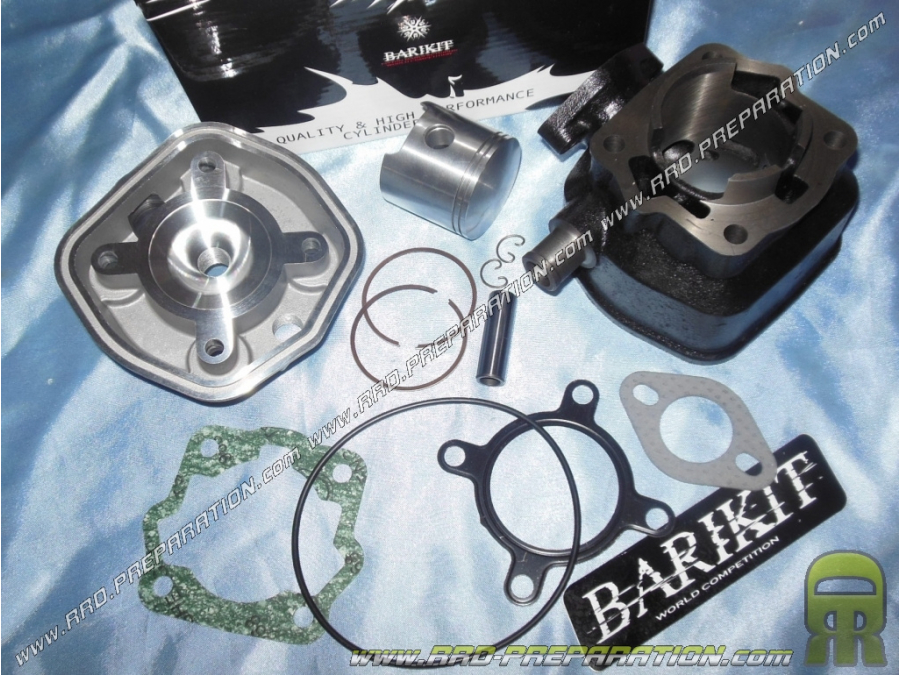

This pack contains:
-cylinder Ø47mm 70cc cast iron with 5 transfers and oval exhaust boosters
-Culasse High compression hemispherical room polished finish
-piston Bi-segments Ø47mm
X2 segments chrome Ø47 X 1mm for
Axis-piston Ø12mm X 39mm length
Crab-like piston -Clips
motor -Joints
Optional we offer a preparation course 1, this preparation is a modification of the exhaust port by increasing the charts and improvement of the duct, it increases the cylinder performance. Improved bottom skirt is also included in the amendment. Allow a little extra time for this preparation!
This high engine fits the 50cc motorcycles équpées gearboxes from Euro1 and Euro2 DERBI:
BULTACO Astro Enduro 50cc
BULTACO Lobito 50cc supermoto
Derbi GPR 50 Nude before 2004 (EBS050)
Derbi GPR 50 Racing before 2004 (EBS050)
Derbi GPR 50R Replica year 2001-2004
Derbi GPR 50cc year 1998-2001
Derbi Senda 50cc before 2000 (tubular frame)
Derbi Senda 2000 50cc before 2004 (perimeter frame) Euro2
Derbi Senda DRD supermotard before 2000 (tubular frame)
Derbi Senda DRD supermotard before 2004 (perimeter frame) Euro 2
Derbi Senda Enduro before 2000 (tubular frame)
Derbi Senda DRD R enduro before 2000 (tubular frame)
Derbi Senda DRD R enduro before 2004 (perimeter frame) Euro2
Derbi Senda SM before 2000 (tubular frame)
Derbi Senda SM before 2004 (perimeter frame) Euro 2
Derbi Senda X-Race 2000 before 2004 (perimeter frame) Euro 2
Derbi Senda X-Race Trail before 2000 (tubular frame)
Derbi Senda X-Trem Enduro before 2000 (tubular frame)
Derbi Senda X-Trem Enduro before 2004 (perimeter frame) Euro 2
Derbi Senda SM X-Trem before 2000 (tubular frame)
Derbi Senda SM X-Trem before 2004 (perimeter frame) Euro 2
GILERA GP Replica 50cc
GILERA GSM 50cc
GILERA 50cc HAK Euduro
GILERA RCR Euduro 50cc (tubular frame)
GILERA SMT SM 50cc (tubular frame)
GILERA Sioux Enduro 50cc
GILERA Zulu Enduro 50cc
And many other models ...
