Here is the brand new 50cc DOPPLER kit named Vortex for mécaboite minarelli am6. First of all let's start on the design, as we can see it is unlike any other high engine. The mold is totally different which is not unpleasant to see, on the contrary it will allow you to distinguish yourself from the others. The cooling is obviously improved thanks to the new architecture!

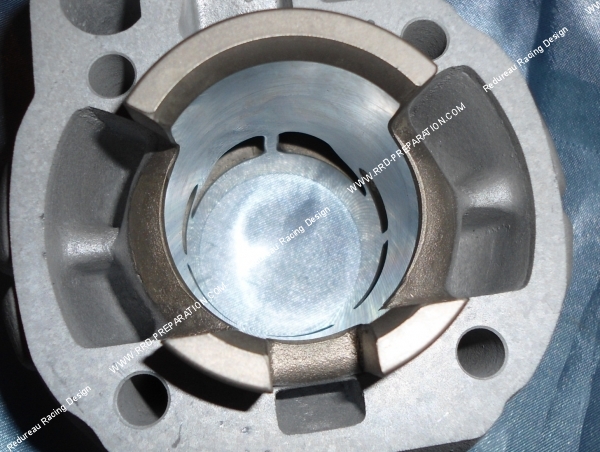

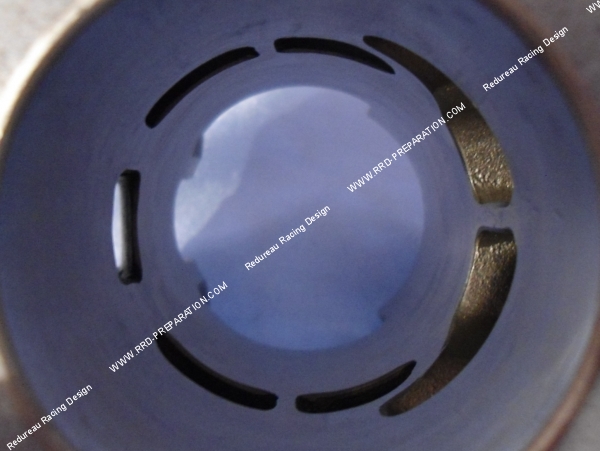

This kit is very high quality aluminum, a high-end nykasil treatment covers the cylinder to offer you maximum strength. Then the exhaust is a bar model like most competition models, the intake transfers are 5 in number and they are redesigned for more performance / better filling.

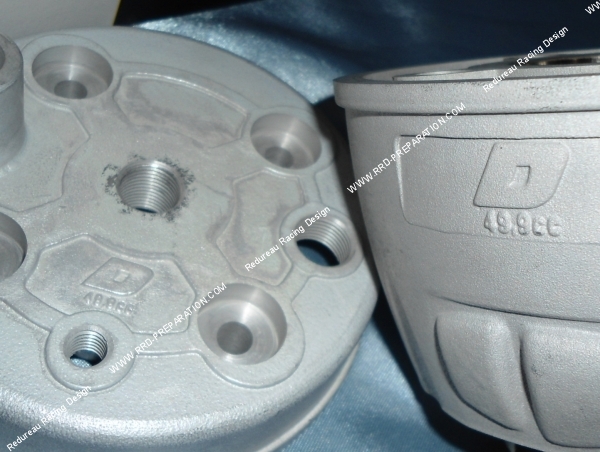

The cylinder head is a polished hemispherical model with a studied look which will guarantee an improved combustion. This cylinder head allows you, if desired, to reconnect the antifreeze to your carburetor. This cylinder head offers an excellent compression ratio.
The piston is a Vertex model, very high quality with high silicon content, accompanied by two chrome segments 1mm thick to push to the maximum in high speeds (friction reduction) while maintaining good torque. Doppler recommends running a 300 km break-in and using DOPPLER racing 2t oil with super unleaded 98.
In summary, this kit will make you gain in performance without neglecting solidity. It will therefore be excellent for the road and for competition. We really appreciated the very worked channels on this vortex model ....
We advise to accompany this kit with at least: reinforced crankshaft, bearings, unclamping coil, racing exhaust, racing valves and carburetion 17.5mm minimum 21mm for proper use, spark plug B9 or B10, alignment of cylinder / crankcase transfers recommended!

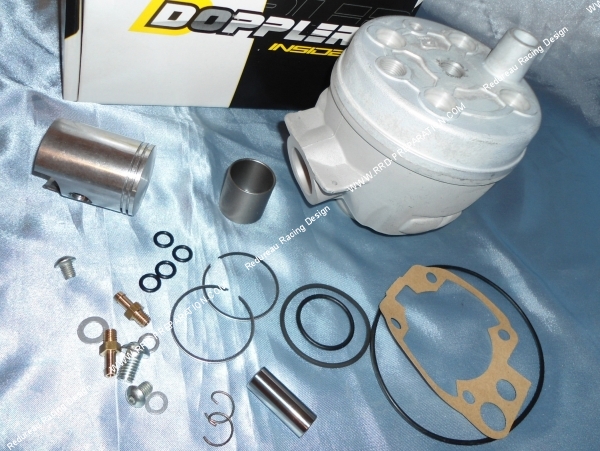

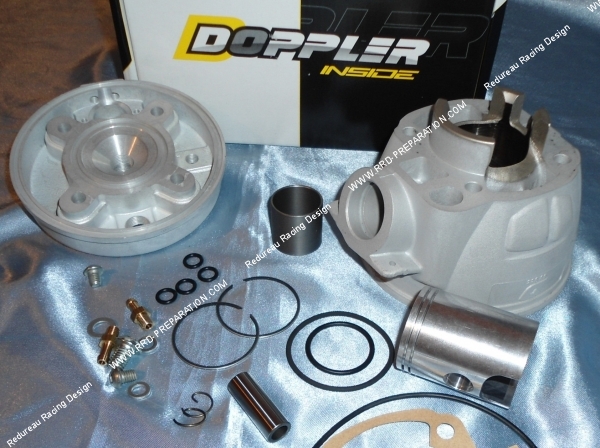

The pack contains:
Have
-Piston Ø39.84mm bi-segment 12mm axis
- Aluminum cylinder with 5 transfers bar
-Two hard chrome domed segment Ø39.84X1mm
-Polished hemispherical cylinder head Ø39.84mm
- Cylinder head screws
As an option we offer you a stage 1 preparation, this preparation is a modification of the channels and the exhaust port by increasing the diagrams and improving the duct, it increases the performance of the cylinder. An improvement to the piston and the bottom of the skirt is also included in this modification. Allow a little extra time for this preparation!
Mounts on 50cc motorcycles with gearbox equipped with the minarelli am3, am4, am5, am6 euro 1, am6 euro 2 engine :
APRILIA RS 50cc am6 engine from 1997 to 2006 (new attention after 2006 in derbi euro 3 engine)
APRILIA RX am6 engine (attention news after 2006 in derbi euro 3 engine)
APRILIA MX am6 engine (attention news after 2006 in derbi euro 3 engine)
APRILIA TUONO 50cc am6 engine from 1997 to 2006 (new attention after 2006 in derbi euro 3 engine)
BETA RR
BETA RR ALU
BETA CRE
HONDA HM
HONDA CRE
HONDA BAJA
HUSQUVARNA WXE
HUSQUVARNA CH
HM DERAPAGE
HM CRE
MALAGUTI DRAKON
MALAGUTI XTM
MALAGUTI XSM
FANTIC CABALLERO
PEUGEOT XP6
PEUGEOT XPS
MOTORHISPANIA RYZ
PEUGEOT XPS
PEUGEOT XP STREET
PEUGEOT XP STREET EVO
PEUGEOT XR6
MOTORHISPANIA RX
PEUGEOT XR7
MOTORHISPANIA RX-R
RIAJU RS1
RIEJU RS2
RIEJU RS2 MATRIX
RIEJU RS2 MATRIX PRO
RIEJU SMX
RIEJU MRX
RIEJU SPIKE
KEEWAY TX FR
YAMAHA DT
MBK X-LIMIT
YAMAHA TZR
MBK X-POWER
SHERCO SM
SHERCO ENDURO
SHERCO HRD
SHERCO ENDURO
And many other machines!
