Attention, this 50cc cylinder head piston cylinder kit is approved on the road in the sole measure or the machine (moped) on which it is mounted remains 100% original with original flange on the exhaust, ignition ... In the event of unwinding, the moped obviously no longer respects French legislation which is 45km / h maximum.
The TOP PERFORMANCES black racing kit is identical to the black 50cc DR racing kit, it is very close to the origin. Its hemispherical high compression cylinder head makes it a more efficient kit than the original. It is road approved, same French road. Its MINACROM treated cast iron makes it very solid. We appreciated its piston with a chrome segment and its finish worthy of high-end cast iron; the pistone is of very high quality and signed minarelli! Its very well calculated compression ratio (1:12) makes it quite efficient despite the diagrams not much higher than the original.
Its exhaust is also slightly more worked. Its displacement is 49.7cc (Ø40.3mm for 39mm stroke). It is the strongest 50cc kit on the market !! With such a price, good performance, increased strength and France approval, it is really perfect.
We recommend at least to accompany this kit : carburetion settings, expansion pot. (the cylinder head must be tightened to 1.6 ÷ 1.8 kgm)

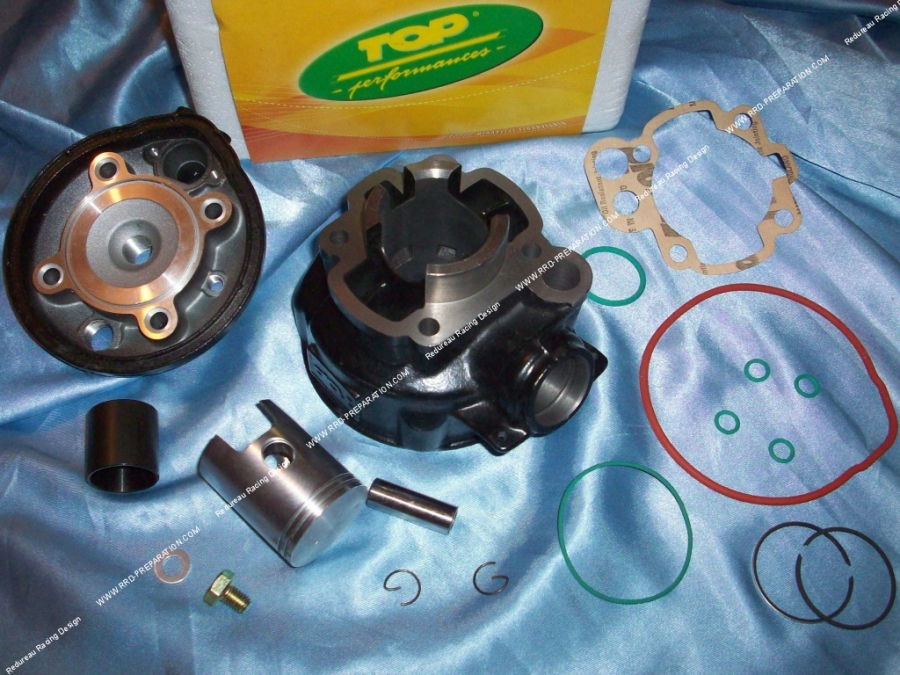

The pack contains :
-Piston
-2 clips
-2 segment including a chrome
-Notice
- Cylinder head bleed screw
-Pack full seal
-1 high compression cylinder head
As an option we offer you a stage 1 preparation, this preparation is a modification of the channels and the exhaust port by increasing the diagrams and improving the duct, it increases the performance of the cylinder. A marked improvement in the piston and the bottom of the skirt is also included in this modification. Allow a little extra time for this preparation! View on the preparation:
Mounts on 50cc motorcycles with gearbox equipped with the minarelli am3, am4, am5, am6 euro 1, am6 euro 2 engine :
APRILIA RS 50cc am6 engine from 1997 to 2006 (new attention after 2006 in derbi euro 3 engine)
APRILIA RX am6 engine (attention news after 2006 in derbi euro 3 engine)
APRILIA MX am6 engine (attention news after 2006 in derbi euro 3 engine)
APRILIA TUONO 50cc am6 engine from 1997 to 2006 (new attention after 2006 in derbi euro 3 engine)
BETA RR
BETA RR ALU
BETA CRE
HONDA HM
HONDA CRE
HONDA BAJA
HUSQUVARNA WXE
HUSQUVARNA CH
HM DERAPAGE
HM CRE
MALAGUTI DRAKON
MALAGUTI XTM
MALAGUTI XSM
FANTIC CABALLERO
PEUGEOT XP6
PEUGEOT XPS
MOTORHISPANIA RYZ
PEUGEOT XPS
PEUGEOT XP STREET
PEUGEOT XP STREET EVO
PEUGEOT XR6
MOTORHISPANIA RX
PEUGEOT XR7
MOTORHISPANIA RX-R
RIAJU RS1
RIEJU RS2
RIEJU RS2 MATRIX
RIEJU RS2 MATRIX PRO
RIEJU SMX
RIEJU MRX
RIEJU SPIKE
KEEWAY TX FR
YAMAHA DT
MBK X-LIMIT
YAMAHA TZR
MBK X-POWER
SHERCO SM
SHERCO ENDURO
SHERCO HRD
SHERCO ENDURO
And many other machines!
