Cylinder / piston without cylinder head MALOSSI replica aluminum 70cc Ø47mm for PEUGEOT Speedfight liquid
  • Cylinder / piston without cylinder head MALOSSI replica aluminum 70cc Ø47mm for PEUGEOT Speedfight liquid

Cylinder / piston without cylinder head MALOSSI replica aluminum 70cc Ø47mm for PEUGEOT Speedfight liquid

31 9476

MHR REPLICA kit on liquid Peugeot scooter, standard race and original size transfers of course ... But what power! What a couple and what solidity !! One of the best normal races on the market!

Stage 1 engine preparation
€166.66
€153.33
local_offer Save 8%
Quantity
Attention, may require a delay of more than 20 days

Description

Not approved on public roads, reserved only for competition, does not respect the regulatory displacement in any way!

In the category of thermal groups "Sport aluminum", we present you this kit MALOSSI MHR REPLICA diameter Ø47mm. This cylinder is the replica of the famous MALOSSI MHR TEAM! This model is certainly slightly less powerful than its counterpart MHR TEAM but it remains nevertheless torquey and solid! The MALOSSI MHR TEAM stud bolt has been replaced by a normal "monobloc" cylinder head, the combustion chamber is a tapered polished finish, high compression model.

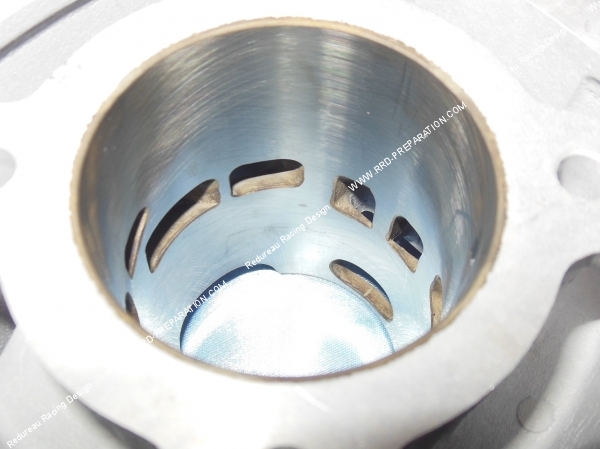

vue Cylindre  piston sans culasse MALOSSI replica aluminium 70cc Ø47mm pour PEUGEOT Speedfight liquide

There are 6 transfers and they are relatively well worked (front angle under the exhaust for better sweeping and more performance). The transfer channels are very studied, they do not require any preparation.The exhaust is a model with boosters in order to preserve a good solidity while opening up the exhaust to the maximum.

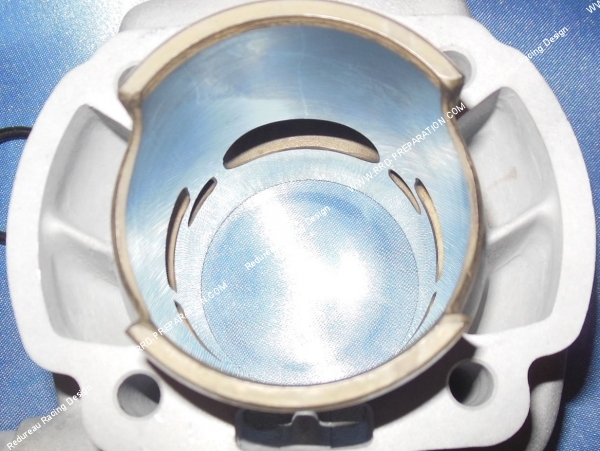

admission Cylindre  piston sans culasse MALOSSI replica aluminium 70cc Ø47mm pour PEUGEOT Speedfight liquide

In order to slow down the race for more solidity, MALOSSI put a bi segment piston, these segments are high-end hard chrome domed models 1.5mm thick in order to slightly slow the high speeds for the benefit of torque and solidity . The piston is a very high-end model like all MHR pistons, it has side grease nipples as well as a preparation on the skirt to improve the sweeping and filling of the intake, has a very high content in silicon for improved heat exchange surfaces.

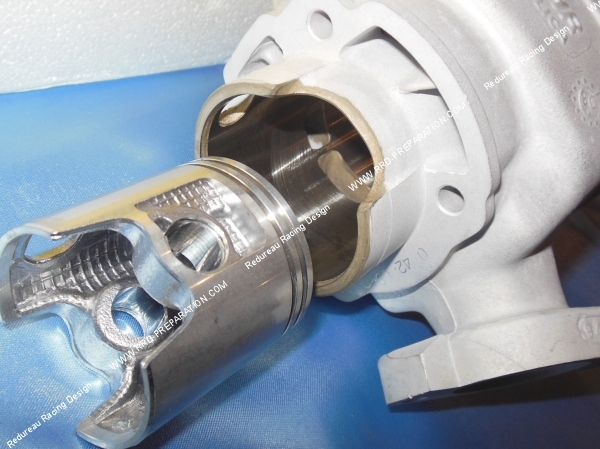

piston entrant Cylindre  piston sans culasse MALOSSI replica aluminium 70cc Ø47mm pour PEUGEOT Speedfight liquide

To finish the presentation of this magnificent high engine, this kit is an extremely powerful model but above all very solid thanks to the specific treatment employed, the alloys and the MALOSSI MHR bore which are of the most upscale on the competition cylinder market! Whether for endurance, the stunt ... this kit will not disappoint you and will offer you guaranteed sensations! Delivered complete as presented. We recommend accompanying this kit with at least: racing exhaust, 21mm carburetion, unbridled competition ignition, reinforced crankshaft, reinforced bearings, hard clutch springs, NGK competition or Iridium spark plug, 100% synthetic racing engine oil, etc. .

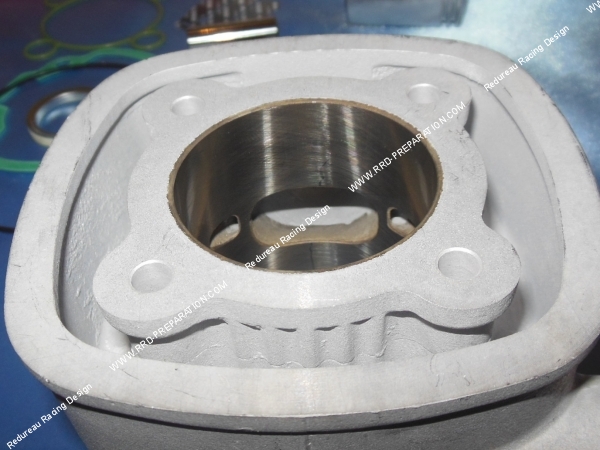

transferts Cylindre  piston sans culasse MALOSSI replica aluminium 70cc Ø47mm pour PEUGEOT Speedfight liquide

As an option we offer you a stage 1 preparation, this preparation is a modification of the channels and the exhaust port by increasing the diagrams and improving the duct, it increases the performance of the cylinder. An improvement to the piston and the bottom of the skirt is also included in this modification. Allow a little extra time for this preparation!

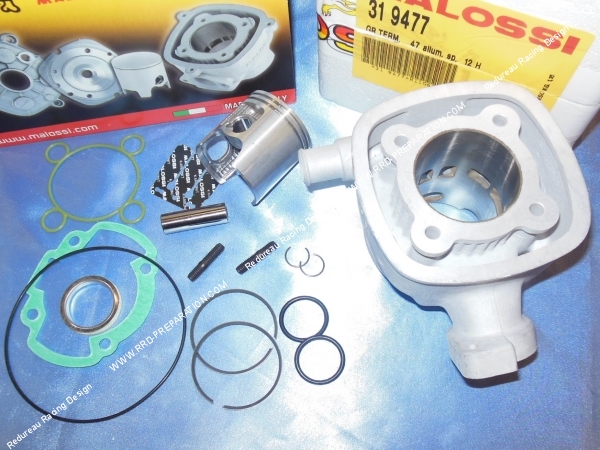

The pack contains:

-Cylinder MALOSSI MHR REPLICA Ø47mm 6 transfers with exhaust boosters
-High compression aluminum cylinder head Ø57mm monobloc, tapered with polished finish
-Piston bi-segments Ø47mm with side grease nipples and preparation on the rear skirt
-X2 segment Ø47mm X 1,5mm
-Reinforced piston axis Ø12mm X 38mm in length
-C piston clips Ø12mm X 1mm thick
-X2 reinforced exhaust studs M6 X length 270mm
-Pack full seal-Instructions-Stickers

echappement Cylindre  piston sans culasse MALOSSI replica aluminium 70cc Ø47mm pour PEUGEOT Speedfight liquide


Installs on Peugeot Vertical Liquid 50cc 2-stroke engine scooter :



PEUGEOT SPEEDFIGHT 2 50 2T LC 2004->
PEUGEOT SPEEDFIGHT 50 2T LC
PEUGEOT X-FIGHT 2 50 2T LC 2004->
PEUGEOT X-FIGHT 50 2T LC


And many other models ...
