In the aluminum sport category we offer this MALOSSI MHR replica kit Ø50mm 80cc. This cylinder is the replica of the great MALOSSI MHR team! This model is certainly slightly less powerful but above all more torquey and solid! Sold without cylinder head.

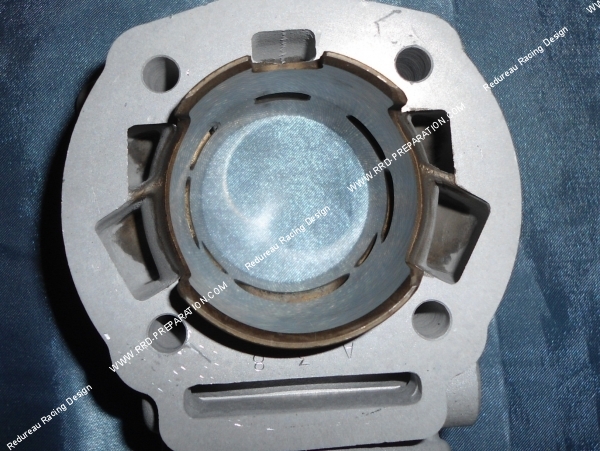

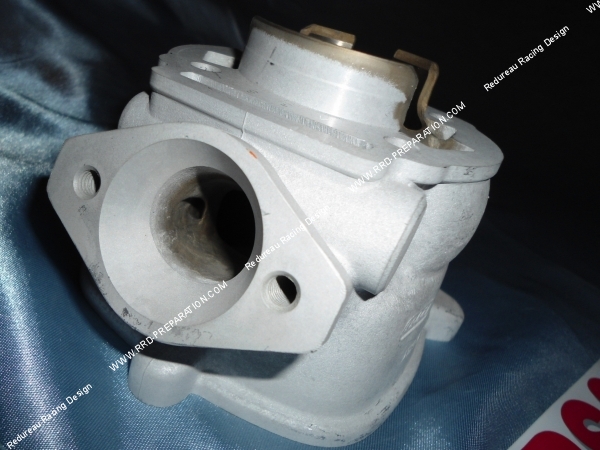

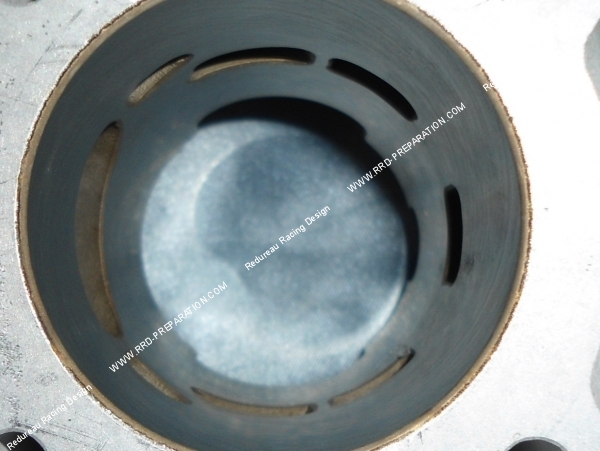

The cylinder is like the MALOSSI MHR team, a diameter of 50mm which offers 76.57cc of displacement. It preserves the shape of the original base, the transfers are 5 in number and they are relatively well worked (front angle under the exhaust for better sweeping and more performance). The transfer channels are very studied, they do not require any preparation.
The exhaust is a model with boosters in order to preserve good solidity while opening the exhaust to the maximum in width. In order to slow down the race for more solidity, MALOSSI put a single segment piston, this segments is a high-end hard chrome domed 0.8mm model for less friction. Like all MHR pistons, the piston is a very high-end model, it has side grease nipples, it has a very high silicon content ...
To conclude, this kit is an extremely powerful model but above all very solid especially with the treatment and the MALOSSI MHR bore which are of the most upscale in the world! Whether for endurance, the stunt ... this kit will not disappoint! Ultra torquey, it also preserves very good high speeds!
Recommended squish: 0.80mm
Segment cutting clearance: 0.18mm
Compression ratio: 1: 13.8
Cylinder Ø: 50mm
For stroke: standard 40mm
Actual displacement: 78.53cc
Power advertised: 22hp at 12,000 rpm with the MHR configuration
The pack contains :
MALOSSI MHR team replica cylinder Ø50mm 5 transfers
Piston Ø50mm mono-segment 0.8mm
1 segment Ø50mm X 0.8mm
Ø12mm treated reinforced piston pin
Piston clips in C Ø12mm
Complete seal pack
Explanatory / guaranteed booklet
stickers
As an option we offer a stage 1 preparation, this preparation is a modification of the channels and the exhaust port by increasing the diagrams and improving the duct, it increases the performance of the cylinder. An improvement to the piston and the bottom of the skirt is also included in this modification. Allow a little extra time for this preparation!
Mounts on:
Aprilia RS after 2006
APRILIA Rx after 2007
DERBI senda DRD pro R
DERBi Senda DRD Pro Sm
DERBI Senda EVOR Sm
DERBI Gpr NUDE after 2006
DERBI Gpr RACING after 2006
DERBI Senda X-RACE R X-RACE Sm
DERBI Senda X-TREME R X-TREME Sm
GILERA Rcr Smt
