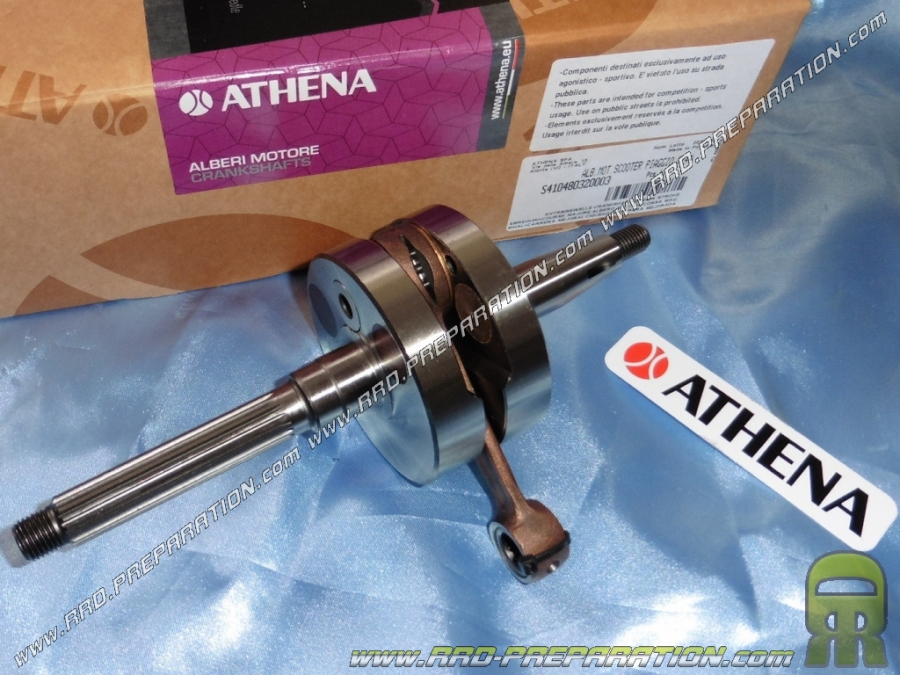

An excellent crankshaft brand ATHENA Racing, reinforced in solid masses studied for a maximum of pre compression, in long race 44mm, rod of 90mm, for piston axle of Ø12mm, it will therefore increase your displacement (unless you have a motor scooter PIAGGIO / GILERA 75cc original). You will need to mount it with the kit provided for this purpose. The 90mm rod (long) reduces pre-compression, but greatly reduces the wear of the piston. It is very well balanced, its bristles (bearing housing) are of original size.
However, you will have to machine your crankcase in order to pass it. It is supplied with a reinforced needle cage and also has a key for ignition which is already adjusted in relation to the long stroke for more performance, the end of the connecting rod is really reinforced to the maximum and over-greased. is specially designed for the ATHENA kit diameter 47.6mm 80cc racing for long stroke but you will be able to use it on another cylinder in axis of 12mm if you wish, however attention, the rod 90mm with another kit will pose you surely problem, you will have to place a wedge or several base seals to adjust the height of the cylinder perfectly.
Derbi ATLANTIS 50 EU2 2T - 2007/2010 - Scooter
Gilera DNA GP EXPERIENCE 50 - 2003/2004 - Scooter
Gilera EASY MOVING 50 - 1995/1996 - Scooter
Gilera ICE 50 - 2001/2001 - Scooter
Gilera STALKER 50 - 1997/2010 - Scooter
Gilera STORM 50 - 1994/1995 - Scooter
Gilera TYPHOON 50 - 1994/1997 - Scooter
Gilera TYPHOON X / X KAT 50 - 1998/1999 - Scooter
Gilera TYPHOON XR 50 - 2000/2000 - Scooter
Italjet JET SET 50 - 2001/2003 - Scooter
Italjet TORPEDO NEW (2T) 50 - 2001/2003 - Scooter
Piaggio DIESIS 50 - 2001/2001 - Scooter
Piaggio FLY 50 2T - 2005/2010 - Scooter
Piaggio FREE 50 - 1992/1994 - Scooter
Piaggio FREE 50 FL - 1995/2002 - Scooter
Piaggio FREE DELIVERY 50 - 2000/2001 - Scooter
Piaggio LIBERTY 2T - 2006/2008 - Scooter
Piaggio LIBERTY 50 - 1997/2002 - Scooter
Piaggio LIBERTY 50 PTT EU2 2T - 2004/2005 - Scooter
Piaggio LIBERTY 50 RST 2T - 2004/2004 - Scooter
Piaggio LIBERTY 50 SPORT 2T - 2006/2008 - Scooter
Piaggio LIBERTY MOC 50 2T - 2009/2011 - Scooter
Piaggio NRG 50 EXTREME - Scooter
Piaggio NRG MC3 50 AIR - 2001/2002 - Scooter
Piaggio SFERA 50 / BASE - 1991/1993 - Scooter
Piaggio SFERA 50 MAQUILLAGE 2 - 1994/1994 - Scooter
Piaggio SFERA 50 RST - 1995/1997 - Scooter
Piaggio SFERA 75 - Scooter
Piaggio TYPHOON 2T E2 - 2010/2012 - Scooter
Piaggio TYPHOON 5 KAT ARIA - 2001/2004/2010 - Scooter
Piaggio VESPA 50 ET2 - CARBURATORE - 1997/2005 - Scooter
Piaggio VESPA 50 ET2 IE - 1997/2000 - Scooter
Piaggio VESPA PRIMAVERA 50 2T - 2013/2015 - Scooter
PIAGGIO ZIP 75cc
Piaggio ZIP & ZIP 50 BIMODALE - 1994/1997 - Scooter
Piaggio ZIP 50 DISCO - Scooter
Piaggio ZIP BASE 50 - 1992/1996 - Scooter
Piaggio ZIP FAST RAIDER 50 - 1993/1994 - Scooter
Piaggio ZIP FAST RAIDER RST 50 - 1996/1997 - Scooter
Piaggio ZIP RST 50 AIR - 1996/1999 - Scooter
