Reference: 81200305
Needle cage BIDALOT reinforced Ø13X17X17,5mm minarelli am6, DERBI, Scooter...
High-end needle cage to be changed every 5,000 km, ideal for the biggest kits on the market.
Banner

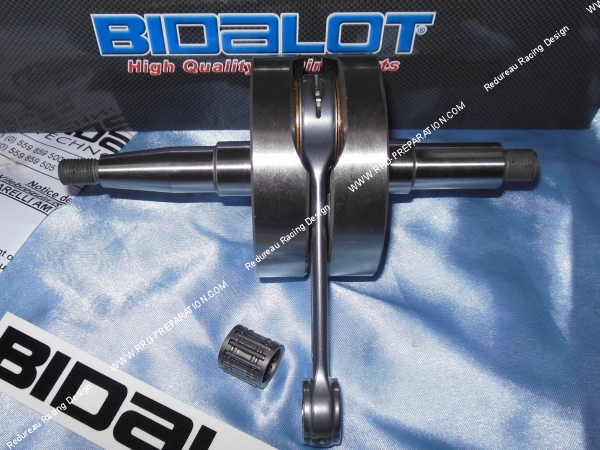

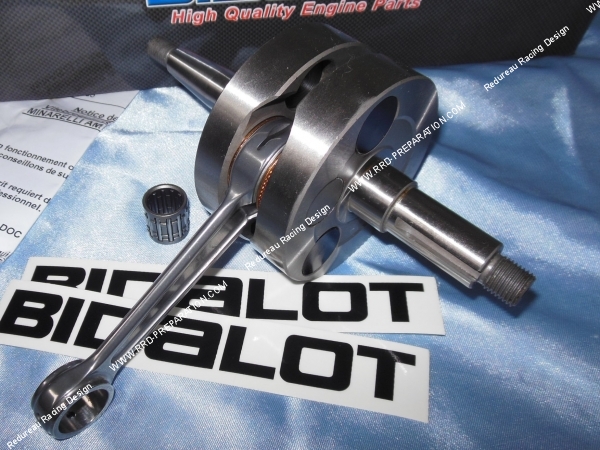

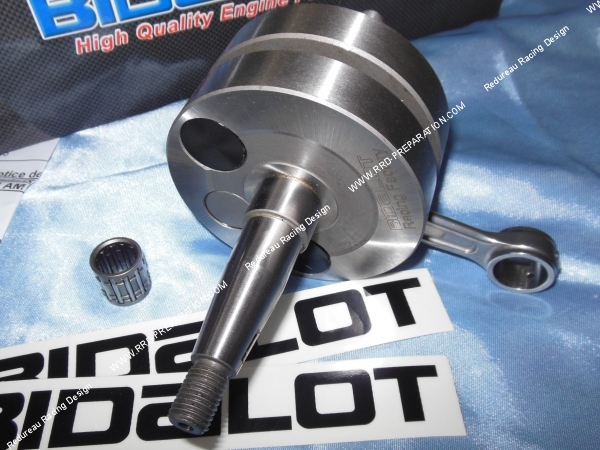

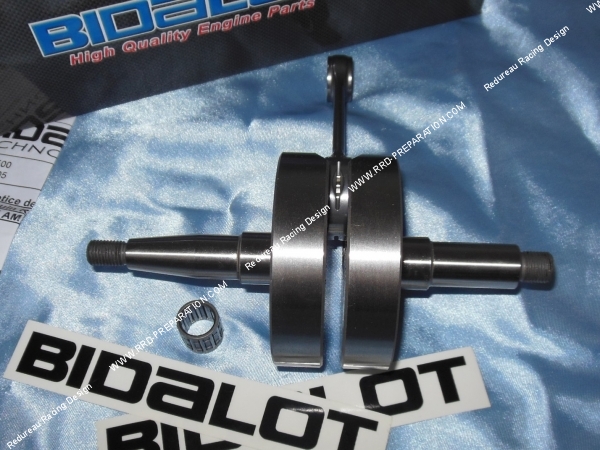

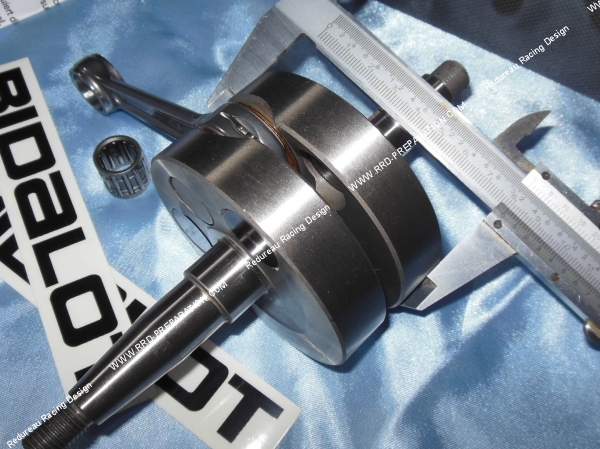

Here the special 48mm long stroke crankshaft BIDALOT Racing Factory for mécaboite minarelli am6. Conceived and designed to accompany the high engine BIDALOT Racing Factory 94cc, its finish is the highest end of the market and its installation will require machining housings for the passage of the masses markedly enlarged.
Equipped with a 95mm rod machined from solid with a specific treatment to the titanium nitride, polished and placed on bronze anti-friction washers. His strength is such that it can absorb without difficulty the higher engine speeds! Thanks to its 48mm stroke, you will increase the engine according to the laid cylinder, 94cc for Ø50mm BIDALOT Racing Factory.
The bristles of this crankshaft are Ø20mm diameter, you should ask the special bearings celeron BIDALOT. The masses have been increased in diameter from 80mm instead of 77mm for an original crankshaft. The total mass of the crankshaft is increased , which means a much greater inertia and a much higher torque!
As mentioned above, you will have however made a machining work on the housings to be able to ask the crankshaft BIDALOT offers a PDF leaflet we asked downloadable link. Obviously perfectly balanced, its masses are full and they cut also the best materials! in short, a perfect crankshaft for endurance, the runs and the biggest market drivers configurations!
Specifications BIDALOT:
-Course Long 48mm
Masses Crankshaft machined from forged blanks
-diameter Of 80mm masses
-Width The bearing seats: 42mm
-Equilibrage Specific dynamics
-Emmanchement Precise pin-mass
-Bielle Carved in the mass, polished, treated with titanium nitride
-Entraxe 95mm
-Maneton Ø18mm
-Cage Rod to silver head needles, needle-free, Ø18xØ24x12
-Cage Walk needles rod Racing Ø13 X 17 X 17.5mm
-Rondelles Blister lateral friction, bronze
-The Unit rectification of the masses allows réembiellage crankshaft
-Work Machining mandatory housings
Reference: 81200305
High-end needle cage to be changed every 5,000 km, ideal for the biggest kits on the market.
