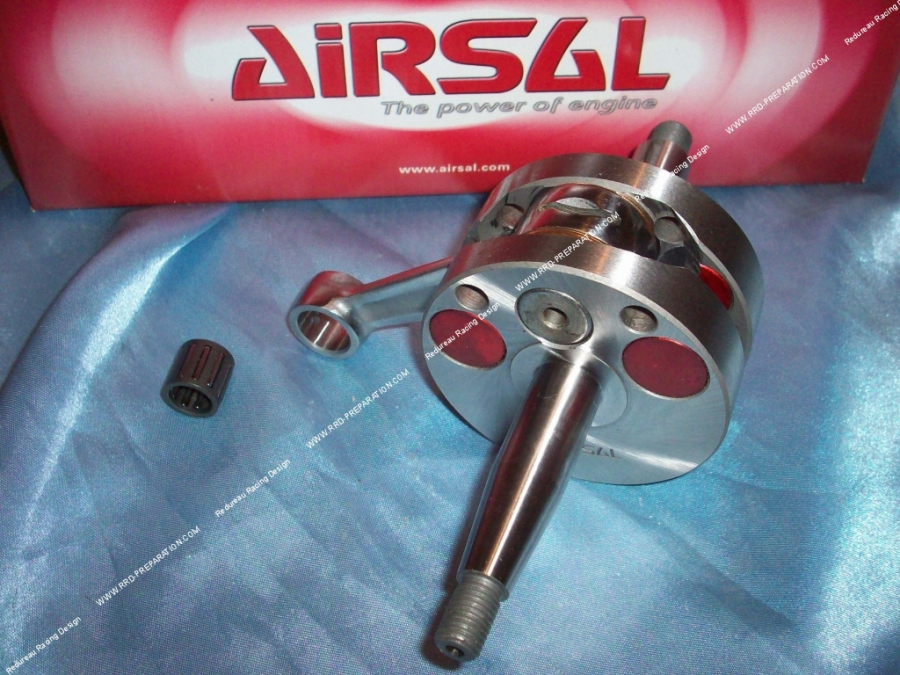

Here is the AIRSAL racing crankshaft. It was released to accompany the high engine AIRSAL red Xtrem race 45mm on minarelli am6 . You can mount it with other cylinder without problems! TPR aluminum Ø50mm to 44mm stroke such as by placing a hold of 0,5mm or many other models.
It is good, solid masses in order to offer more pre compression, the masses ro Uges prove the presence of a neat and worked balancing. It is equipped with a reinforced rod with polished finish. The rod rests on an increased cage reinforced, a crank pin diameter plus in Ø18mm well as anti-friction wedges. To our regret, this crankshaft preserves silks in Ø17mm like the origin, it also preserves a rod length of 85mm as the origin.
Which certainly offers more pre compression, closer injection but which greatly limits the high speeds and strength by increasing the friction! His balance is not specifically made to accommodate the famous high Xtrem engine. The cage is delivered Ø12X16X16mm model. Clearly, this is a very good long stroke crankshaft, not a performance monster away from but a very good price / quality ratio.
summary:
-Équilibrage: Yes
-Maneton: Ø18mm
-Bielle: 85mm as the origin
-Course: 45mm against 39mm for the origin
-A Ride with: Xtreme kit / kit for race 39mm with bilge 3mm / 44mm kit to race with shim 0,5mm ...
-Soies: Ø17mm
-Cage A connecting rod needle: Ø12XØ16XL16mm
Masses: full
Fits the 50cc motorcycles gearbox equipped minarelli am3, am4, am5, am6 euro 1 am6 euro 2:
Aprilia RS 50cc am6 from 1997 to 2006 (new attention after 2006 engine derbi euro 3)
Aprilia RX am6 engine (new attention after 2006 engine derbi euro 3)
Am6 APRILIA MX engine (new attention after 2006 engine derbi euro 3)
Aprilia Tuono 1997 am6 50cc engine 2006 (new attention after 2006 engine derbi euro 3)
BETA RR
BETA RR ALU
BETA CRE
HM HONDA
HONDA CRE
HONDA BAJA
HUSQUVARNA WXE
HUSQUVARNA CH
HM DERAPAGE
HM CRE
MALAGUTI DRAKON
MALAGUTI XTM
MALAGUTI XSM
FANTIC CABALLERO
PEUGEOT XP6
Peugeot XPS
MOTORHISPANIA RYZ
Peugeot XPS
PEUGEOT XP STREET
PEUGEOT XP STREET EVO
Peugeot XR6
MOTORHISPANIA RX
PEUGEOT XR7
MOTORHISPANIA RX-R
RIAJU RS1
RS2 RIEJU
RIEJU RS2 MATRIX
RIEJU RS2 MATRIX PRO
SMX RIEJU
RIEJU MRX
RIEJU SPIKE
KEEWAY TX EN
YAMAHA DT
MBK X-LIMIT
YAMAHA TZR
MBK X-POWER
SHERCO SM
SHERCO ENDURO
SHERCO HRD
SHERCO ENDURO
CPI SM
And many other machines!
