Not homologated on the open road, part formally reserved for competition, this crankshaft increases the engine capacity.
A very elaborate crankshaft (crankshaft), digitally over-balanced by 4 special alloy masses, high resistance to torque and revs (16,000 rpm / max and more). Use it to upgrade your kit from 80 to 85cc thanks to the long 44mm stroke or to replace the crankshafts that are supplied in the Top Performances cast iron 85cc and TPR aluminum 86cc maxi packs. Original cage diameter Ø12mm. Following the TPR study, for a catch-up of the forcing, they opted for silks (crankshaft arm where the bearing is housed) of original diameter for the clutch side and large silk (Ø20mm) on the ignition side for more resistance and less vibration.
Delivered with reinforced needle cage d.12X15XL15mm (original size), offset key, set of reinforced bearings. The mass materials are very high-end in case-hardened steel with a finish, the connecting rod pin is revised upwards for more resistance, the foot and head cages are reinforced to the maximum. The greasing of the big end and connecting rod foot are increased to the maximum for less wear. The full masses of this crankshaft will bring you maximum pre-compression for even more torque and power.
The connecting rod is of course mounted on anti-friction shims, it is reinforced and of original size (85mm) which will allow you to be able to mount this crankshaft on any kit intended for normal racing by just placing a shim of 2.5mm at the base of the cylinder.

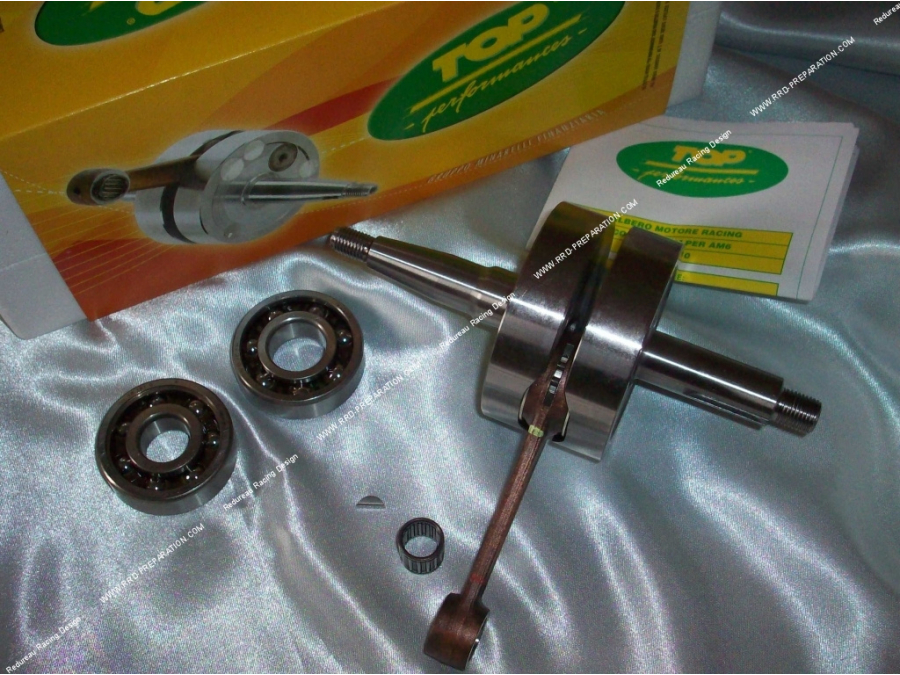

This pack contains:
-Needle cage Ø12mmX15mmXL15mm
-V ileshaft race 44mm connecting rod 85mm full masses
-Reinforced bearing set
-Notice
Provide a set of special TPR bearings and a 2.5mm base shim if you want to mount it on a kit intended for normal racing.
Mounts on 50cc motorcycles with gearbox equipped with the minarelli am3, am4, am5, am6 euro 1, am6 euro 2 engine :
APRILIA RS 50cc am6 engine from 1997 to 2006 (warning news after 2006 in derbi euro 3 engine)
APRILIA RX am6 engine (warning news after 2006 in derbi euro 3 engine)
APRILIA MX am6 engine (warning news after 2006 in derbi euro 3 engine)
APRILIA TUONO 50cc am6 engine from 1997 to 2006 (warning news after 2006 in derbi euro 3 engine)
BETA RR
BETA RR ALU
BETA CRE
HONDA HM
HONDA CRE
HONDA BAJA
HUSQUVARNA WXE
HUSQUVARNA CH
HM DERAPAGE
HM CRE
MALAGUTI DRAKON
MALAGUTI XTM
MALAGUTI XSM
FANTIC CABALLERO
PEUGEOT XP6
PEUGEOT XPS
MOTORHISPANIA RYZ
PEUGEOT XPS
PEUGEOT XP STREET
PEUGEOT XP STREET EVO
PEUGEOT XR6
MOTORHISPANIA RX
PEUGEOT XR7
MOTORHISPANIA RX-R
RIAJU RS1
RIEJU RS2
RIEJU RS2 MATRIX
RIEJU RS2 MATRIX PRO
RIEJU SMX
RIEJU MRX
RIEJU SPIKE
KEEWAY TX EN
YAMAHA DT
MBK X-LIMIT
YAMAHA TZR
MBK X-POWER
SHE RC O SM
SHE RC O EN DURO
SHE RC O HRD
SHE RC O EN DURO
ICC SM
And many other machines!
