Crankshaft crankshaft ITALKIT reinforced original size (length 105mm, crank pin Ø22mm, axis 16mm) for SUZUKI RGV 250cc 2T

Here is the reinforced rod from ITALKIT, specially designed for your SUZUKI RGV 250cc motorcycle.

Here it is the BC.5109 model, this model is reinforced with a rod of length 105mm, its lubrication are improved, the cage rod foot is Ø16x20x20mm (therefore piston pin to Ø16mm). The crankpin makes it a Ø28mm by length 48mm , the big-end cage is Ø22x28x16mm , the width of the head is 16mm .

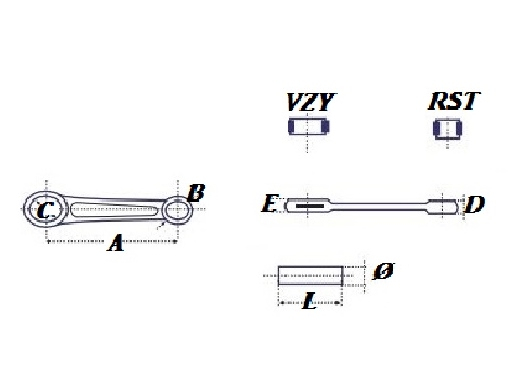

A: 105mm

B: 20 mm

C: 28mm

D:

E: 16mm

Ø: 22mm

L: 48mm

RST: 16x20x20mm

VZY: 22x28x16mm

Mounted on SUZUKI RGV 250cc 2T
