ITALKIT Connecting rod Competition casting (Length 110mm, crank pin Ø22mm, axis 15mm) motor MOTO ROTAX 122/123 125 (APRILIA)

Following the many requests we have on spare rods only for engine crankshaft ROTAX 122 and 123. (size 110mm as the 127 and KARTING, but 28mm crankpin instead of 26mm).

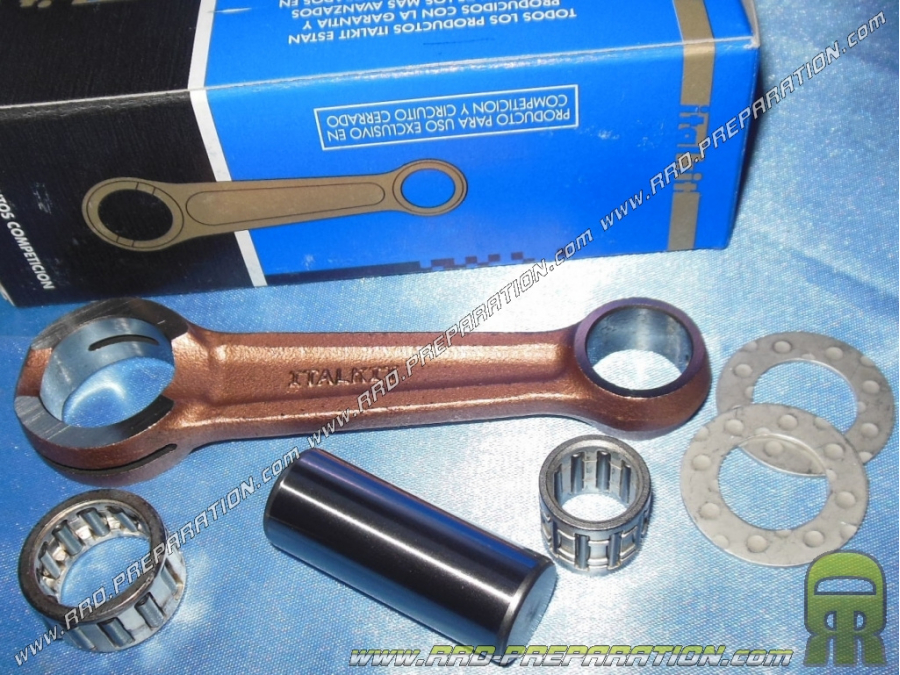

Here is the model BC.2751S, this model is well cast reinforced with a connecting rod length of 110mm, its lubrication is improved, the cage of small end is made of silver treated Ø15X19X20mm (so for Ø15mm piston pin ). The crank pin makes it a Ø22mm by length 49mm, the big end cage is Ø20X28X16mm, the width of the head is 16mm, treated silver.

Non contractual photo for the moment!

Mounts on :

ROTAX 122 engine

ROTAX 123 engine

APRILIA AF1 125cc

APRILIA AF1 125cc FUTURA

APRILIA AF1 125cc REPLICA

APRILIA AF1 125cc SINTESI

APRILIA EUROPA 125cc

APRILIA PEGASO 125cc

APRILIA RED ROSE 125cc

APRILIA RS 125cc

APRILIA RS 125cc EXTREMA

APRILIA RX 125R

APRILIA SPORT 125cc

APRILIA SX 125cc

APRILIA TUAREG RALLY 125cc

APRILIA TUAREG WIND 125cc

HM CRE 125cc

HM DERAPAGE 125cc

And many other motorcycle 125cc. Do not mount on ROTAX 127 !!!
