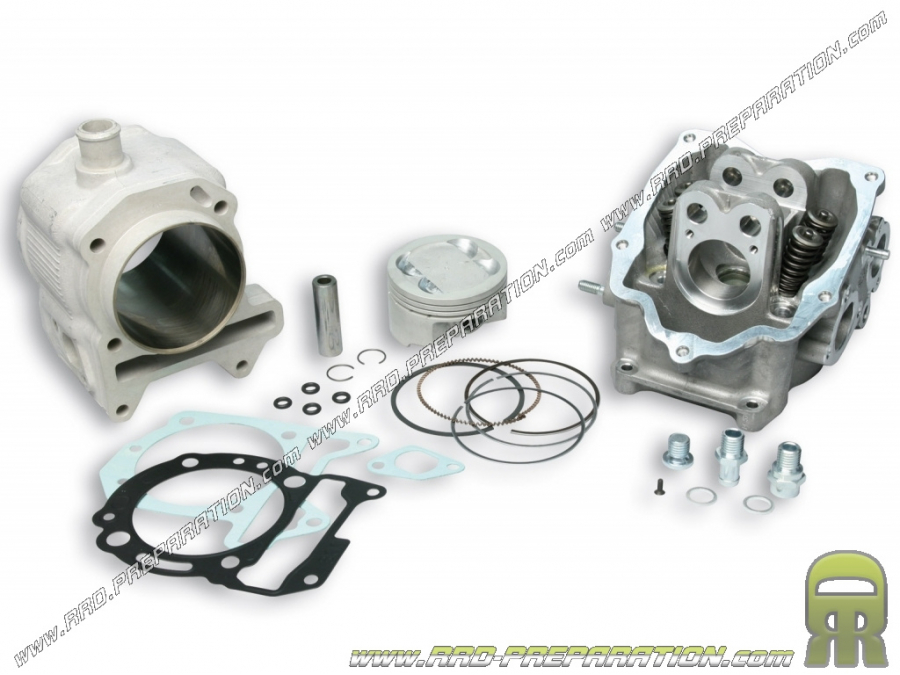

![Kit 282cc MALOSSI Ø75.5mm, cylinder / piston for APRILIA ATLANC 250, GILERA NEXUS, PEUGEOT SATELIS, PIAGGIO BEVERLY ... 4T Kit 282cc MALOSSI Ø75.5mm, cylinder / piston for APRILIA ATLANC 250, GILERA NEXUS, PEUGEOT SATELIS, PIAGGIO BEVERLY ... 4T](https://www.rrd-preparation.com/27315-large_default/malossi-o755mm-282cc-kit-cylinder-piston-for-aprilia-atlanc-250-gilera-nexus-satelis-peugeot-piaggio-beverly-4t.jpg)
Reference: 3813273
Cylinder MALOSSI V4 Head Ø74 / 75.5 aluminum for maxi-scooter from 125cc to 300cc
A high compression yoke that will bring you a huge performance gain. Reworked ducts, large valves, hard springs ...
Banner
Here is the complete kit from MALOSSI to increase the performance of your maxi scooter equipped with 4T liquid cooled engine.
TECHNICAL CHARACTERISTICS
Cylinder
Material: aluminum alloy with a high silicon content tempered and tempered, cylinder liner with silicon carbide application in a galvanic nickel matrix and crossed smoothing by two diamond passages, with very strict tolerances.
Machining: CNC machine tools with high precision.
Cylinder-piston couplings with coupling tolerance of 0.05 mm.
Heat exchange surfaces recalculated and enlarged.
Piston
Extra compact with three segments.
Material: special aluminum alloy with high silicon content at low thermal expansion with application of tin on the sliding walls.
Machine tool machining at CN
Lightened and strengthened.
Expanded heat exchange surfaces.
segments
Compression - special high sliding and very high mechanical resistance, in chromed S10 spheroidal cast iron.
1st scraper ring - S10 spheroidal cast iron chromed.
2nd scraper ring - three-piece made of special steel, chrome-plated.
Products strictly reserved for the competition in places provided for and according to the provisions of the competent sports authorities. We disclaim all liability for improper use.
Mounts on :
APRILIA ATLANTIC - Arrecife 250 4T LC (PIAGGIO M237M)
APRILIA SCARABEO 250 4T LC (PIAGGIO M285M)
APRILIA SCARABEO Light 250 ie 4T LC 2007->
APRILIA SPORTCITY 250 ie 4T LC euro 3 (PIAGGIO M288M)
BENELLI ADIVA AD 250 4T LC euro 2
DERBI GP1 250 4T LC euro 2-3
DERBI RAMBLA 250 ie 4T LC euro 3
GILERA GILERA NEXUS 250 ie 4T LC euro 3
MALAGUTI MADISON RS 250 4T LC (PIAGGIO M237M)
MALAGUTI MADISON 3,250 4T LC (PIAGGIO)
MALAGUTI PHANTOM MAX 250 4T LC (PIAGGIO M361M)
PEUGEOT GEOPOLIS 250 ie 4T LC euro 3
PEUGEOT SATELIS 250 4T LC euro 3
PIAGGIO BEVERLY 250 4T LC Euro 1-2 (M285M)
PIAGGIO BEVERLY S 250 ie 4T LC euro 3
PIAGGIO BEVERLY 250 ie 4T LC euro 3
PIAGGIO MP3 250 ie 4T LC euro 3 (QUASAR M472M)
PIAGGIO X7 250 ie 4T LC euro 3 (QUASAR M622M)
PIAGGIO X8 250 4T LC euro 2
PIAGGIO X8 250 ie 4T LC euro 3 (QUASAR)
PIAGGIO X9 Evolution 250 4T LC (M237M)
PIAGGIO XEvo 250 ie 4T LC euro 3 (QUASAR)
VESPA GTS 250 ie 4T LC
VESPA GTV 250 ie 4T LC
