Very torquey kit, this MALOSSI offers 170cc of torque and power to your HONDA EURO 3 and EURO 4 scooter engines. It will be supported by your original low engine which is basic for 125 and 150cc.
It is sold with its engine reprogramming box, this allows you to recalibrate the injection mapping and push the maximum speed (breaker) by 1000 revolutions! Very high-end kit, compression ratio of 11.7: 1.
This kit can be installed on the fully original engine, but it is recommended with a sport dimmer, an iridium candle and a sport air filter to breathe well. But even without variation, this very torquey kit does not need high revs to pull the scooter and this, even has two people on it!
The racing exhaust brings only a minimal gain on these scooters. If top speed is not enough for you, a long transmission can easily be pulled with such a kit!
Sold with a complete manual in all common languages!

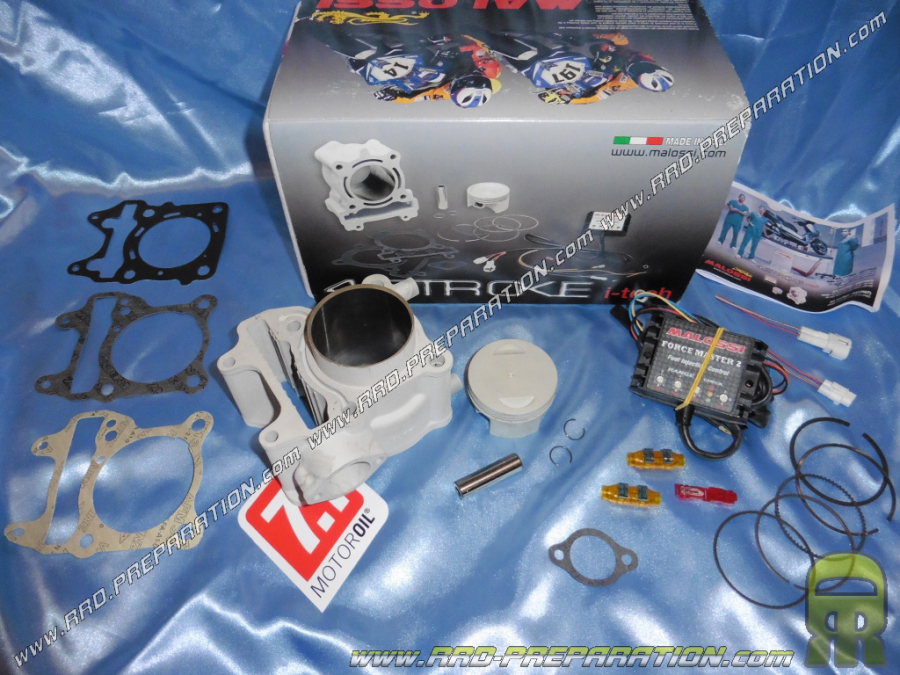

Complete cylinder I-TECH 4 STROKE
Material: primary aluminum alloy with high quenched and tempered silicon content, cylinder liner with application of silicon carbides in a galvanic nickel matrix and cross-smoothing by two diamond passages, with very tight tolerances
Machining: by high precision NC machine tools
Cylinder-piston couplings with coupling tolerance of 0.05 mm
Recalculated and enlarged heat exchange surfaces
Electric case
Carburation adjustment
± 6% min / medium / max
Lap limiter: + 1000
RPM 4 different programs
Piston
Extra compact with three segments
Material: special aluminum alloy with high silicon content at low thermal expansion with application of tin on the sliding walls
CNC machine tool machining
Lightened and strengthened
Enlarged heat exchange surfaces
Segments
Specials with high sliding and very high mechanical resistance
I compression segment in nitrided and chromed steel
II segment in special cast iron
Chrome-plated three-piece scraper ring
Mounts on :
HONDA PCX 125 ie 4T LC euro 3 2015-> 2017
HONDA PCX 125 ie 4T LC euro 4 2018-> (JF64E)
HONDA PCX 125 ie 4T LC euro 3 2012-> 2014 (JF47)
HONDA PCX 150 ie 4T LC euro 4 2018->
HONDA SH i ABS 125 ie 4T LC euro 3 2013-> 2016 (JF41E)
HONDA SH i ABS 125 ie 4T LC euro 4 2017-> 2019 (JFG8E)
HONDA SH mode 125 ie 4T LC euro 3 (JF51E)
