Reference: 3611263
Clips, rushes axis of piston MALOSSI in Ø 14mm Type C axis d.1mm
Ideal for the refurbishment of your engine.
Banner

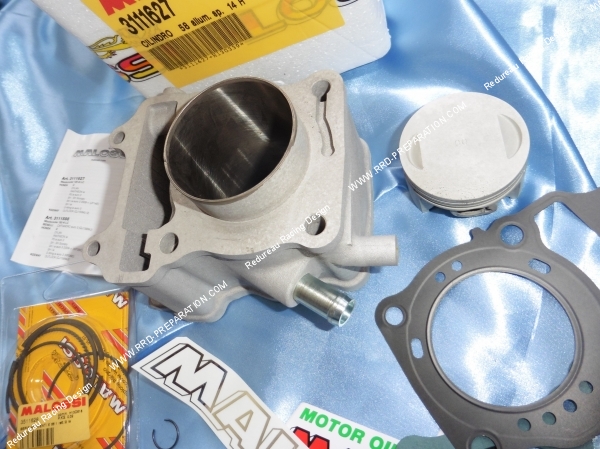

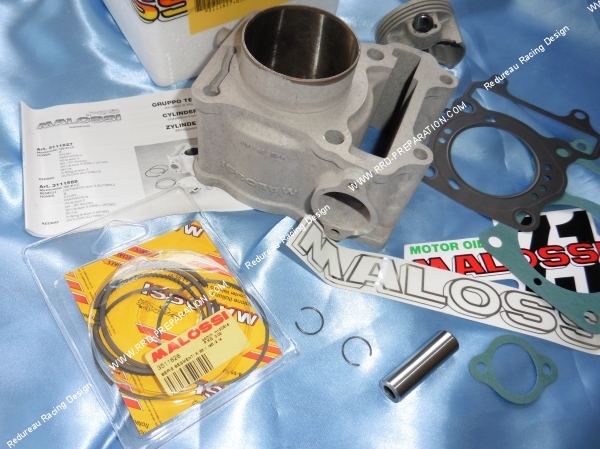

Here is the 150cc high performance Ø58mm MALOSSI maxi kit for BENELLI, KEEWAY and HONDA 125cc. As usual MALOSSI has made a powerful, solid, torquey and very high-end kit. MALOSSI has for this thermal group found the perfect stroke / diameter ratio, this cylinder tightens without problem supported by your original crankshaft.
He is already racing in competition and in endurance, that is to say if he is tested… Let’s now rather see how MALOSSI did to increase the performance of the high engine, he obviously did not stop and increased the diameter of the piston cylinder! , The cooling is better, the friction reduced, the piston offers more compression with the original cylinder head ...
Here are the technical characteristics of the kit:
Cylinder
Material: primary aluminum alloy with a high content of quenched and tempered silicon, cylinder liner with application of silicon carbides in a galvanic nickel matrix and crossed smoothing by two diamond passages, with very strict tolerances Machining: by machines -High precision NC tools. Cylinder-piston couplings with a coupling tolerance of 0.05 mm. Recalculated and enlarged heat exchange surfaces.
Piston
Extra compact with three segments.Material: special aluminum alloy with a high silicon content with low thermal expansion with application of tin on the sliding walls.Machining by CNC machine toolsLightened and reinforced.Enlarged heat exchange surfaces.
Segments
Compression - specials with high sliding and very high mechanical resistance, in chrome-plated S10 spheroidal cast iron 1st scraper ring - in S10 chrome plated spheroidal cast iron 2nd scraper ring - in three pieces in chromed special steel.
Clearly this kit passes your cylinder capacity from 125 to 150cc! While reducing friction, improving engine cooling and compression! We recommend at least an exhaust line, a variator and a sport exhaust without catalyst with such a kit! A long transmission can easily be exploited!
Mounts on:
HONDA @ 125 4T LC
HONDA DYLAN 125 4T LC
HONDA PANTHEON 125 ie 4T LC
HONDA PS 125 ie 4T LC euro 3
HONDA SH - SH Scoopy 125 4T LC
HONDA SH I 125 ie 4T LC euro 3 2009-> (JF14E)
HONDA SH I 125 ie 4T LC <-2008
HONDA S-Wing 125 ie 4T LC euro 3
KEEWAY LOGIK 125 4T LC euro 3 (QJ153MI-2)
KEEWAY OUTLOOK 125 4T LC (QJ153MI-2)
KEEWAY SILVERBLADE, SILVER BLADE 125
Reference: 3611263
Ideal for the refurbishment of your engine.
Reference: 2312422
Replacement spindle reinforced MALOSSI Ø14mm X internal diameter 8mm X length 47mm.
Reference: 1112703B
MALOSSI complete gasket set for HONDA HS DYLAN, KEEWAY OUTLOOK, LOGIK ... With MALOSSI 150cc 4T kit.
Reference: 3411610
Replacement piston for MALOSSI 150cc kits HONDA / KEEWAY 125cc.
Reference: 3511628
Complete segmentation for the MALOSSI 150cc kit HONDA / KEEWAY 125cc.
