Warning, not approved and prohibited on the road, reserved only for competition.

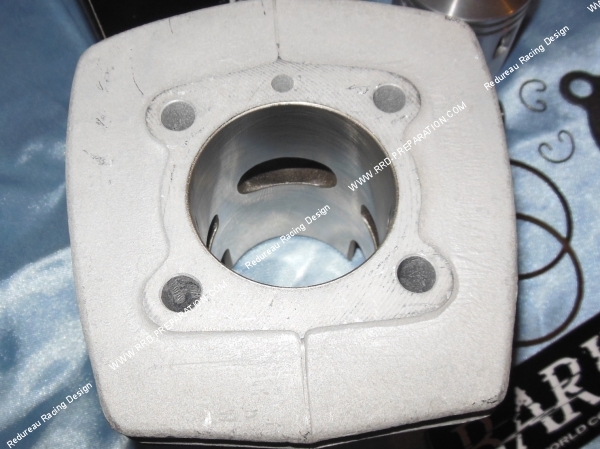

Here is the BARIKIT T3 kit with admission in W, this model of the Spanish firm is a small kit which takes a slightly different AIRSAL T3 cylinder. This cylinder is of very good quality, in nykasil treated aluminum. Its diameter of 46mm offers 65cc real in combination of the original race the Peugeot Fox & Honda Wallaroo. It was scheduled for performance, torque and above all preserve a solidity with extreme simplicity of assembly! Clearly this kit does not require large equipment to work well!

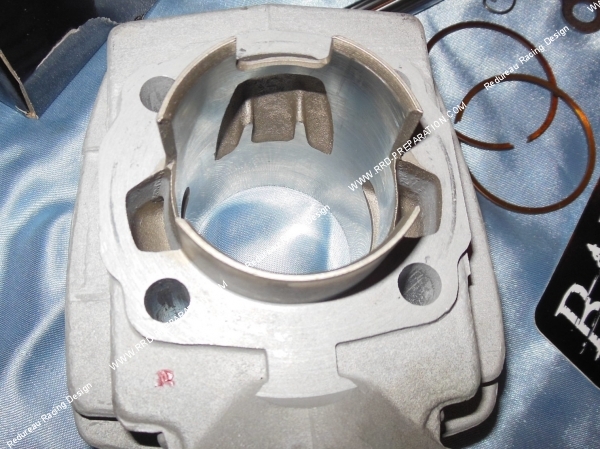

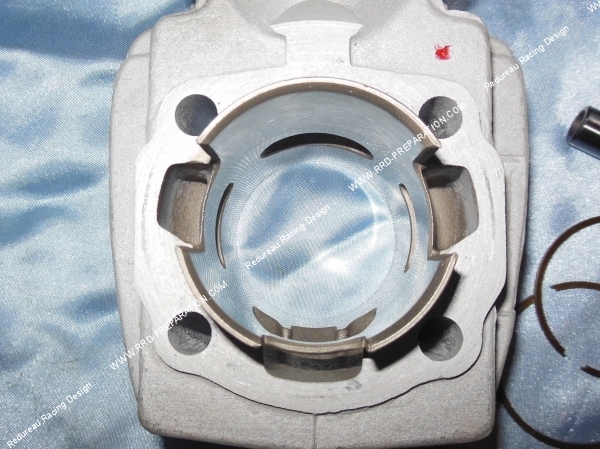

The admission in W will allow an improvement in the quality of the sweep compared to a simple rear transfer, it will also allow to have a wide admission with a small rear transfer, this system also works wonderfully on the 2 transfer cases first PEUGEOT generation. The side transfers are therefore two in number, you will not have to retouch your housings to align this kit, it works very well on original housings.
The piston is a two-segment model with 3 openings on the top of the rear skirt which will slow down the race and offer more torque / solidity despite the high speed. The piston has undergone a microbeading on the cap, this type of action is done to avoid detonation. The diagrams are quite high compared to many 70cc on the market, the exhaust is a standard oval model. In short, this high engine will be a good companion for driving every day because it is very solid, torquey and its recovery excellent! The increase in power next to an origin will be very well felt. A superb quality / price / performance ratio.
We recommend that you accompany this kit with at least : expansion exhaust, reinforced crankshaft with bearings set C3, carburetion in 17mm PHBG + 19 PHBG pipe + 0.30mm carbon valve blade, cold racing spark plug, Ø46 mm cylinder head, engine oil 100% competition synthesis ....

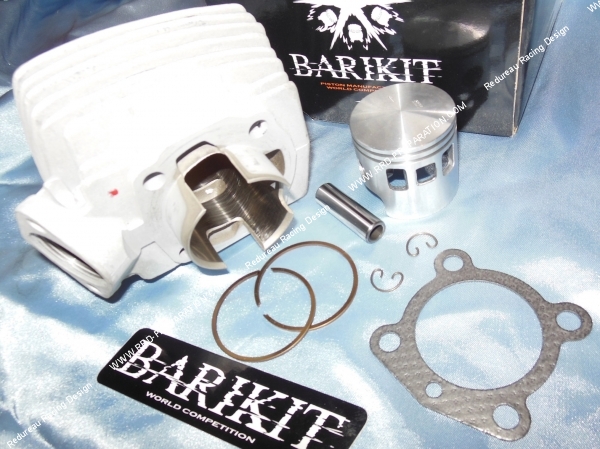

The pack contains :
-X1 Cylinder Ø46 mm T3 intake in W air 70cc
-X1 Piston Bi segment
-X2 segments Ø46mm X 1,5mm
-X1 Piston pin Ø12 X 39 mm
-X2 Crab type piston clips
-X1 Reinforced cylinder head gasket
!!! Remember to buy a base gasket, not supplied !!!
As an option we offer a stage 1 preparation, this preparation is a modification of the exhaust port by increasing the diagrams and improving the duct, it increases the performance of the cylinder. An improvement to the bottom of the skirt is also included in this modification. Allow a little extra time for this preparation!
