Kit 50cc aluminum air DOPPLER ER1 Peugeot 103, fox & Honda wallaroo
  • Kit 50cc aluminum air DOPPLER ER1 Peugeot 103, fox & Honda wallaroo

Kit 50cc aluminum air DOPPLER ER1 Peugeot 103, fox & Honda wallaroo

197248

With its exhaust has boosters, its mono-segment, its 6 intake transfers ... This 50cc aluminum is one of the best for 103, especially at this price!

Engine preparation
€116.66
Quantity
Shipping in 1-3 days

Description

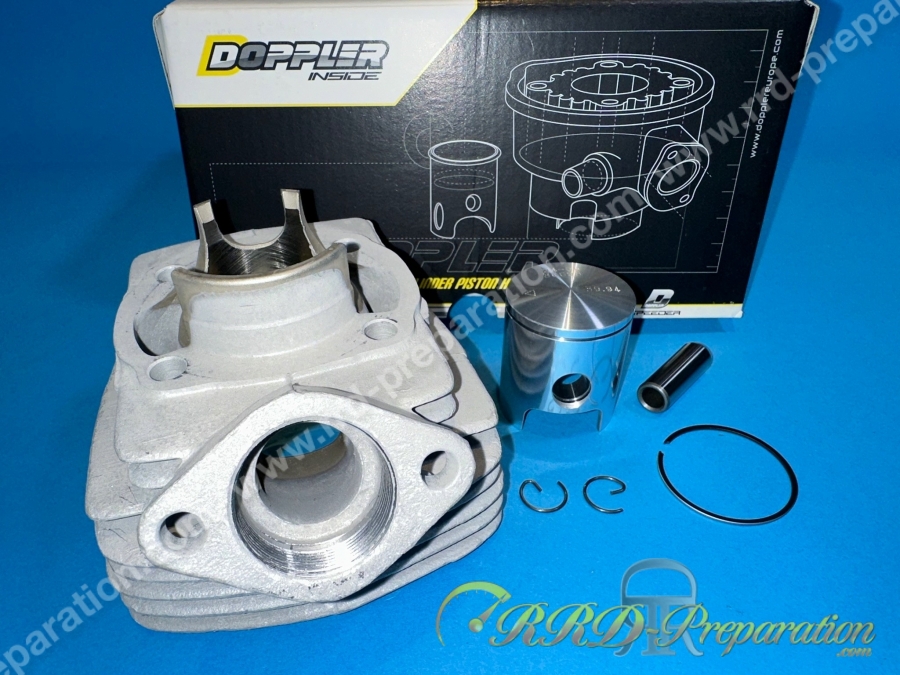

It is no longer to present, the famous DOPPLER ER1 cylinder for PEUGEOT 103, fox and HONDA wallaroo, this small 50cc air-cooled kit, has a high-end mono-segment piston with side grease nipples, the cylinder is good quality, in nikasil treated aluminum.





5 intake transfers with booster exhaust, it is directly taken from real competition cylinders. Its diagrams are not extremely high, which will allow it not to ask for a very greedy configuration, a good small 15PHBG with 0.35mm valve blades, an exhaust (Doppler ER1 to do well) and a good variator which exploits the good power regime and it will be perfect.





A real replica of G1 which has a very worked piston (robust, light with side grease nipples and thin segment).

As an option we offer a stage 1 preparation, this preparation is a modification of the channels and the exhaust port by increasing the diagrams and improving the duct, it increases the performance of the cylinder. An improvement to the piston and the bottom of the skirt is also included in this modification. Allow a little extra time for this preparation!

Product Details
197248
23 Items
New product

Data sheet

Diameter (Ø):
40mm
Nombre de segment
Mono-segment (1 segment)
Intake diagram (lateral transfers):
131°
Cylindrée réelle
49.13cc (with 39.10mm stroke)
Echappement
Flanged 2 screws + thread Ø32mm
Nombre de transferts d'admission
6 transfers
Matière
Aluminium
Exhaust Diagram:
181°
Refroidissement
Air
Intake diagram (rear transfers):
122°
Transferts a l'embase
Large transfers (work of the original casings necessary)
Lumière d'échappement
To boost (3 lights)

Specific References

ean13
3663829026582
