Allumage MVT Intégral with rotor interns without lighting for DERBI euro 1/2/3
  • Allumage MVT Intégral with rotor interns without lighting for DERBI euro 1/2/3

Ignition MVT INTEGRAL internal rotor without lights for DERBI euro 1/2/3

Al 16

A MVT ignition quality with performance to date!

€199.99
Quantity
Shipping in 1-3 days

Description

Little known and yet very powerful. Ignition MVT Integral for mécaboite 50cc engine DERBI Euro 1, Euro 2 and Euro 3. Very easy to install and adjust, this ignition will offer additional performance and thrills!

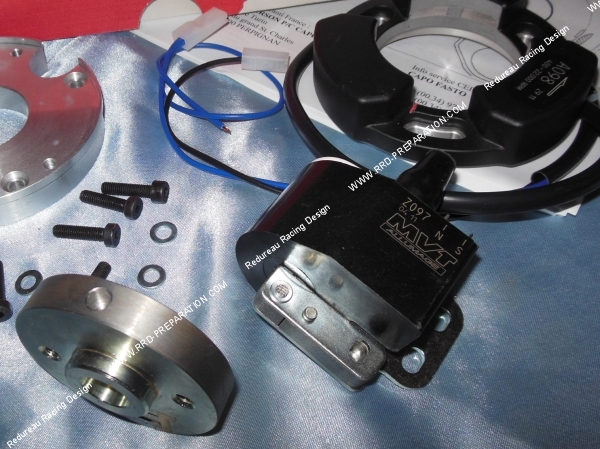

vue Allumage MVT Intégral à rotor interne sans éclairage pour DERBI euro 123

This model is named Integral ignition internal rotor with a light, solid and balanced without lights and without keying. A version that will better acceleration, further speeds and improved torque. Diets can climb up to 22 000 revolutions / minute, a rock solid.

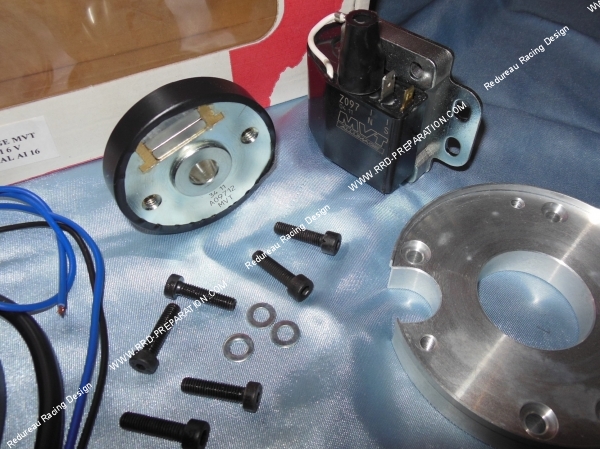

zoom Allumage MVT Intégral à rotor interne sans éclairage pour DERBI euro 123

Its stator is a full model (compact without apparent circuit), 100% waterproof and strong. To switch between full analog to full digital ignition, it will be necessary to acquire a calculator integral type ignition CAI.

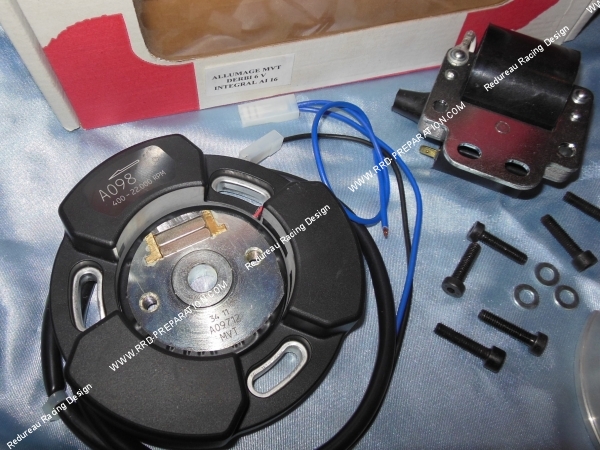

rotor Allumage MVT Intégral à rotor interne sans éclairage pour DERBI euro 123

It will also really enjoyed his adjustable stator which allows precise calibration without difficulties. Attention ignition without keying, provide a setting rod. It is delivered without anti parasite, neither cable nor candle racing, if you really want a high performance ignition, think about having all the equipment following therefore: wiring, solder and heat shrink instead pods candle suppressor cap ....

Installation is relatively simple:

Disassemble your old spark
-Position Your setting rod instead of the candle.
-Turn Your crankshaft to position the TDC (Top Dead Center).
-Once Found TDC, turn your vilo in the opposite direction of 1.5mm motor rotation for vilo race between 39 and 41mm (for a crankshaft with greater and different race, the advance should be 20 °).
-Then Visualize your red mark on the rotor and on the stator and align them together without moving the vilo so that your lighting is rigged to 1.5mm BTDC.
-After These milestones, it will remain more than to follow the installation instructions and the tightening final fixing nuts ....

The pack contains:

-Stator Cable
Lightweight internal -Rotor
-Bobine High voltage bare
Aluminum fixing -platinum
-Visserie
-Notice

Product Details
Al 16
1 Item
New product
