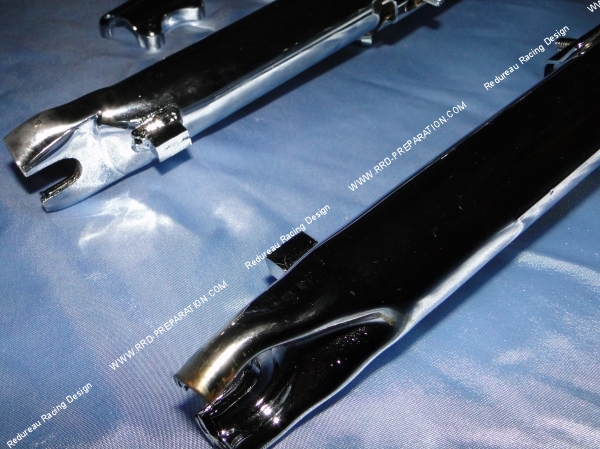

A chrome EBR RACING fork, adjustable in height to improve road holding and the aesthetics of your PEUGEOT 103 or MBK 51! Between axis of the tees adjustable from 15 to 20.5cm. Brake locks on both sides.

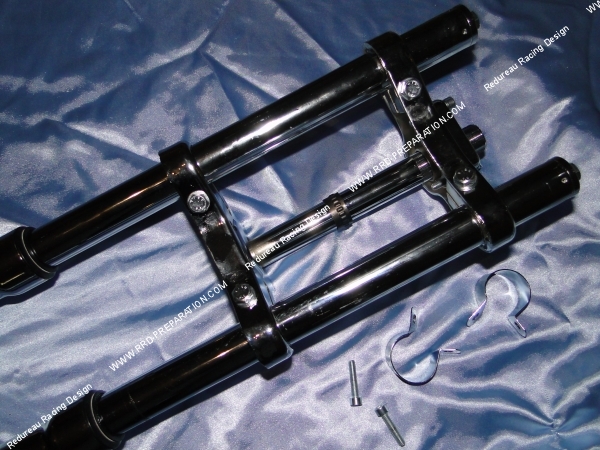

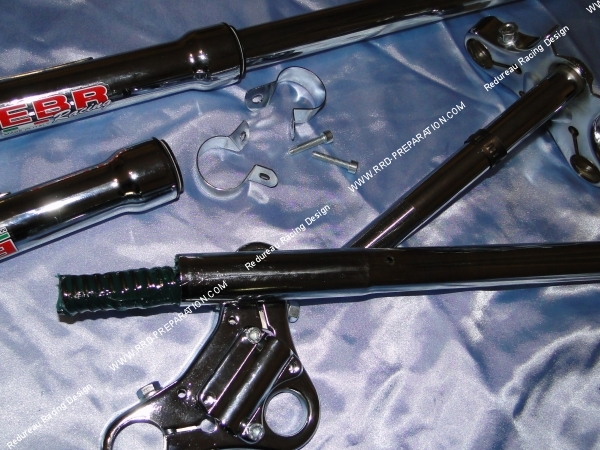

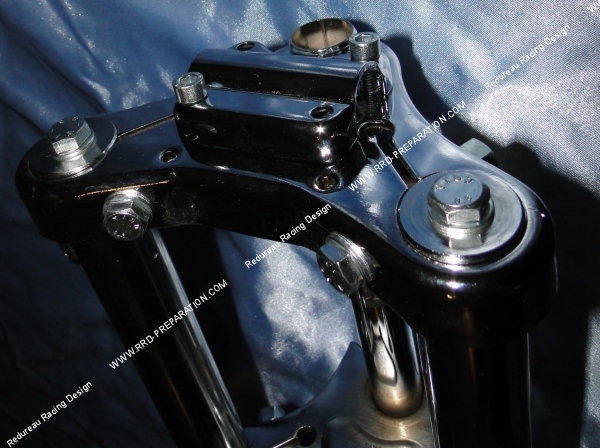

Here is the EBR RACING fork, it is delivered as on the photo, ie complete with the top and bottom triple trees as well as the headlight dropouts and the handlebar mounting (handlebar trigger guard).
This chrome fork can give a nice style to your PEUGEOT 103 SPX, RCX, MVX, CLIP or even MBK 51 MAGNUM RACING, do not hesitate to look at the technical characteristics if you are not sure of the fitment!

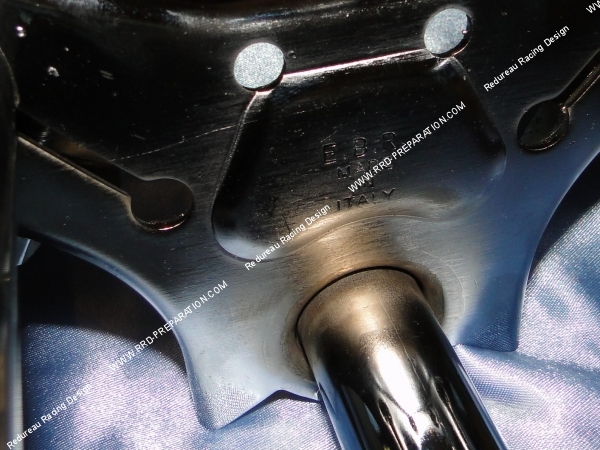

Above all, it has a low price! Its diameter of 30mm for the top and 35mm for the bottom except at the joints where the diameter is 43mm. It is made in Italy, it is also improved compared to the original fork for better handling and better absorption of irregularities, bumps ...
It has 2 brake blocks. It does not have a bracket for installing a disc brake caliper.
-Material: Chromed steel
-Delivered with: headlight dropouts, triple trees, handlebar trigger guard ...
-Diameter of the tubes: 30mm for the top and 35mm for the bottom
-Diameter of the tube of tees: 25mm
-Adjustable in height: yes
-Adjustment of the center distance of the tees: Yes from 15 to 20.5cm
-Brake block: Yes, on each side, thickness 8mm, height 15mm
-For wheel axle: Ø12.5mm maximum
-Between tube axis: 11.7cm maximum
-Total length of the tubes: 69.3cm at the lowest (cutting of the springs possible)
-System: standard springs
-Fixing the mudguard: Yes, 2 Ø6mm screws on each side, between axis from 18 to 50mm adjustable
-Recommended maintenance: Lubrication every 5000km, belgom chrome and fine iron wool in case of rust. In addition to this, you need to know more about it.
