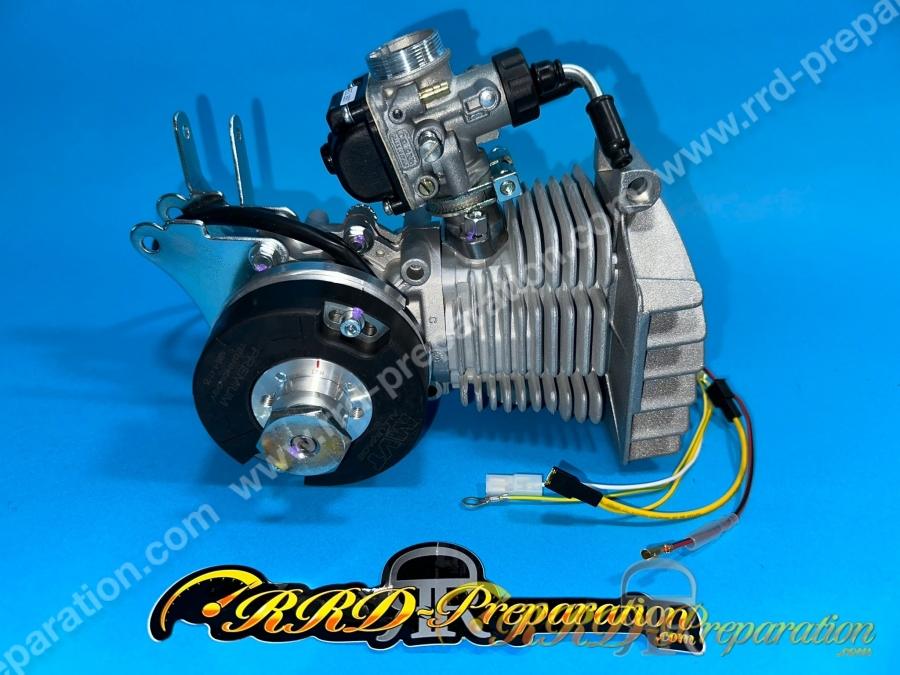

Complete engine assembled RRD RACING 4 transfers 80cc MBK 88, AV44 ... / motobecane AV7

complet_av7_basse_RACING_CL_4T

High performance AV7 engine with variable internal rotor ignition, radial cylinder head, 19mm PHBG carburetion...

This pack contains

€1,483.33
Quantity
Requires an assembly and preparation time of 10 to 30 days!

Description

RRD PERFORMANCES 80cc engine (78cc real) for MOTOBECANE, MBK machines with AV7 engine. For users wishing to preserve the admission to the cylinder and the AV7 architecture without switching to the AV10. Engine with an excellent stroke with its bore / stroke of 47 X 44.9mm (not far from the square), the long stroke crankshaft brings a net gain in torque especially on the AV7 engine without valves, where the piston plays the roll of opening / closing admission. This engine is built to take high power and speeds of 10,000 / 11,700 RPM. It comes preset with a sharp lowering of the carburettor jets PHBG, necessary on engines without reeds.

To switch to high binding, use this adapter

This engine is the most efficient for AV7, we equip it with :

RRD crankshaft long stroke 44.9mm

RRD 1.5mm base wedge

- Kit PARMAKIT mono-segment steel 4 transfers Ø47mm prepared STAGE 2 with diagrams of 189° / 128° (* attention, obligatorily take the STAGE 2 preparation on the cylinder in the list of parts before purchase)

-Culasse POLINI RADIAL FIXATION bass calibrated to give 12.5: 1 compression ratio, target squish 0.9mm (includes cylinder head machining for this rate)

-Original type casings aligned, modified, machined for the passage of the long stroke

- 19.5mm PHBG AD carburetor preset specifically for this engine (lowered 40 idle jet, 77 main jet)

MALOSSI 19mm intake pipe

- MVT PREMIUM ignition set specifically for this engine with this stroke (0.2 after TDC)

-E8 air filter with blocking hole in filter / carburettor to prevent it from rotating

- Hardware required for engine mounting including set of long P2R cylinder head nuts

-Seals required for engine mounting including the fine reinforced MALOSSI cylinder head gasket

*If desired, you can remove the cylinder head or other part from the pack and choose another part in your basket! You can also choose to remove the carburation. Or remove the ignition and choose a less expensive one from your basket.

*In view of the quality, we are obliged to put better quality bearings of the SKF type, so they should not be removed from the pack.

*Attention, engine delivered :

- Without the BR10HIX spark plug highly recommended after running in / adjustment

- Without BR9HS spark plug recommended for running in / adjustment

- Without the DOPPLER ER2 clutch pulley (recommended)

- Without variator DOPPLER ER3 (recommended, take version without clutch)

- Without the yellow DOPPLER mainspring (recommended)

- Without belt (recommended, the fine HUTCHINSON 5324, according to chassis)

-We also recommend the purchase of 2.1 gram rollers for the DOPPLER ER2 drive, therefore in 16X13mm. If you take the ER3, no need for pebbles or weights.

It is up to you to obtain voltage regulator, high voltage cable... If desired. (parts offered at the bottom of this product)

*Recommended exhaust DOPPLER ER1

* 300KM break-in, MOTUL 800 oil at 2% or even 2.5%, SP98 no more than 2 months old, octane booster recommended.
