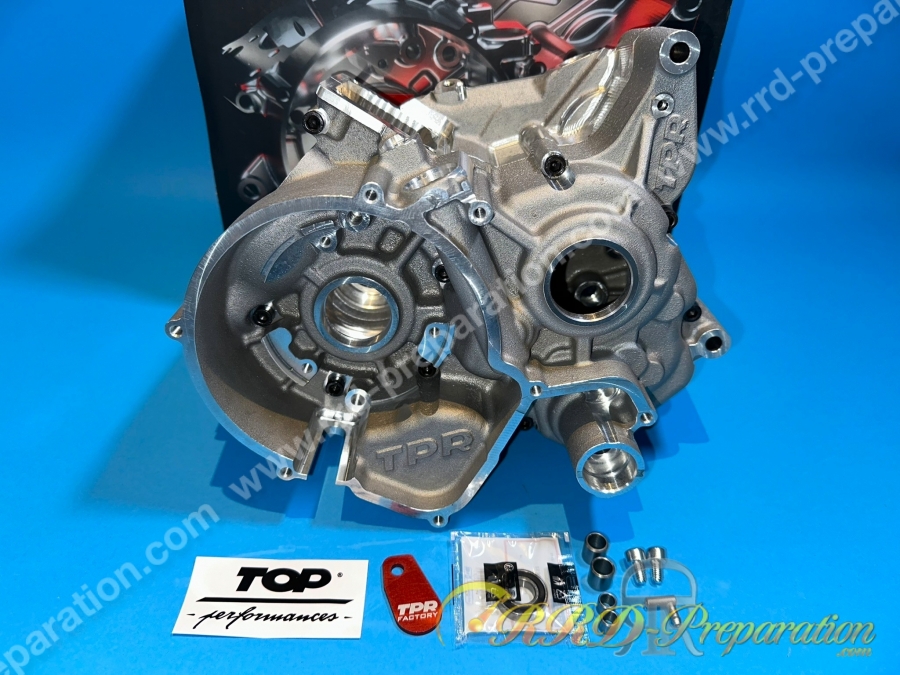

True technical prowess, and above all, true piece long awaited by the owners of 50cc motorcycles with MINARELLI AM6 engines, these are the crankcases completely redesigned by the competition division of MINARELLI MOTORPARTS, the TPR brand!
Short presentation video YOUTUBE
FACEBOOK short presentation video
These crankcases have on the one hand been completely strengthened by better construction, a high quality but light structural alloy, an increase in thickness has strategic places! The gas vein has been redesigned for maximum performance, including the orientation and placement of the valve box. Fully redesigned intake for improved dynamic fluid efficiency with increased valve size. Already prepared to accommodate 47 mm racing crankshafts and Ø52 cylinders with cross studs.This specific version is intended to accommodate only the Flanged Mount cylinders, so the cylinders that attach by screw to the outside of the cylinder, not by stud! The crankcase is therefore well released admission level!
*You will notice the specific cooling duct on this Flanged Mount version!
These crankcases can receive all the original parts of MINARELLI AM6, box, clutch, side panel...
This crankcase must receive thelarge TPR TASSINARI valves!!!
Fully designed under software and windmill, these crankcases need not be retouched (even if in your head you could imagine places to scratch!!!)
Some technical data:
- They are designed to be mounted without balancers
- The valve head is 57x48mm
- The screws are included
- Part preventing the exit of the rod is included
- No possible original cylinder for these crankcases, flanged mount cylinder only!
- Cylinder interax 78x76 only, FL
- Very large transfers to admission
- Diameter of cylinder drum: 60.5.
-Get ready to receive the big crankshafts
Gets on:
All machines equipped with the AM6 engine
-APRILIA RS AM6 engine from 1997 to 2006 (after 2006, attention to engines passed DERBI euro (3)
-APRILIA RX AM6 engine (after 2006, attention to engines passed in DERBI euro (3)
-APRILIA MX AM6 engine (after 2006, attention to engines passed in DERBI euro (3)
-BETA CREE
-BETA RR
-BETA RR ALU
-HONDA HM
-HONDA CREE
-HONDA BAJA
-HUSQUVARNA WXE
-HUSQUVARNA CH
-HM DERAPAGE
-HM CRE
-MALAGUTI DRAKON
-MALAGUTI XTM
-MALAGUTI XSM
-FANTIC CABALLERO
-PEUGEOT XP6
-PEUGEOT XPS
-PEUGEOT XP STREET
-PEUGEOT XP STREET EVO
-PEUGEOT XR6
-PEUGEOT XR7
-MOTORHISPANIA RYZ
-MOTORHISPANIA RX-R
-MOTORHISPANIA RX
-RIJU RS1
-RIJU RS2
-RIJU RS2 MATRIX
-RIEJU RS2 MATRIX PRO
-RIEJU SMX
-RIEJU MRX
-RIEJU SPIKE
-KEEWAY TX EN
-YAMAHA DT
-MBK X-LIMIT
-YAMAHA TZR
-MBK X-POWER
-SHERCO SM
-SHERCO ENDURO
-SHERCO HRD
-SHERCO ENDURO
And many more machines!
