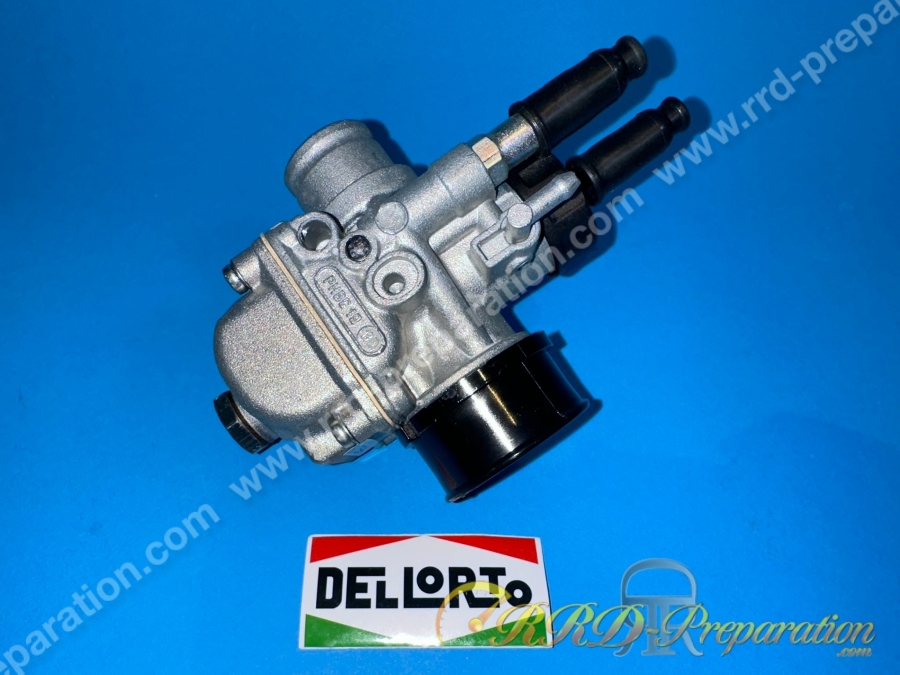

Here is a very high-end carburetor from DELLORTO, not very expensive and well suited to small or large configurations, this BD model PHBG has a cable choke and is mounted on a flexible pipe. Solid, practical and resistant, it is equipped with a cap under the aluminum tank which allows the nozzle to be changed without dismantling the tank!
It does not have separate lubrication so you will have to mix it yourself! It is flexible mounting. You can mount it on the 103, 51, scooter, am6 and DERBI with original pipe ...
If the air filter fixing is in threaded Ø32mm, you can therefore put the cones and airbox sleeve in Ø31 to 33mm. You can also use the tulip delivered with the carburetor which will allow you to pass the large diameter 40mm air filters and provide better ventilation.
Material type :
Primary jet dellorto 95 in small steps
Needle: type W06
Cutting bushel: 40 degree
Choke jet size 60
Idle jet size 50
Then AU type needle in size 262
The choke is cable and the carburetor is male.
Float 4 grams
External diameter pipe side: 25mm
External diameter filter side: 32mm threaded or 40mm non-threaded with the tulip
The low consumption, the little noise it causes, the power and recovery it offers have made the reputation of the Italian DELL'ORTO carburettors. This SPECIAL version has a "screw-on" valve cover, this offers quick disassembly / reassembly, ideal for needle adjustments and cable changes! This is much more convenient than the 2 screw covers where it is often necessary to tilt / extend the carburetor.
