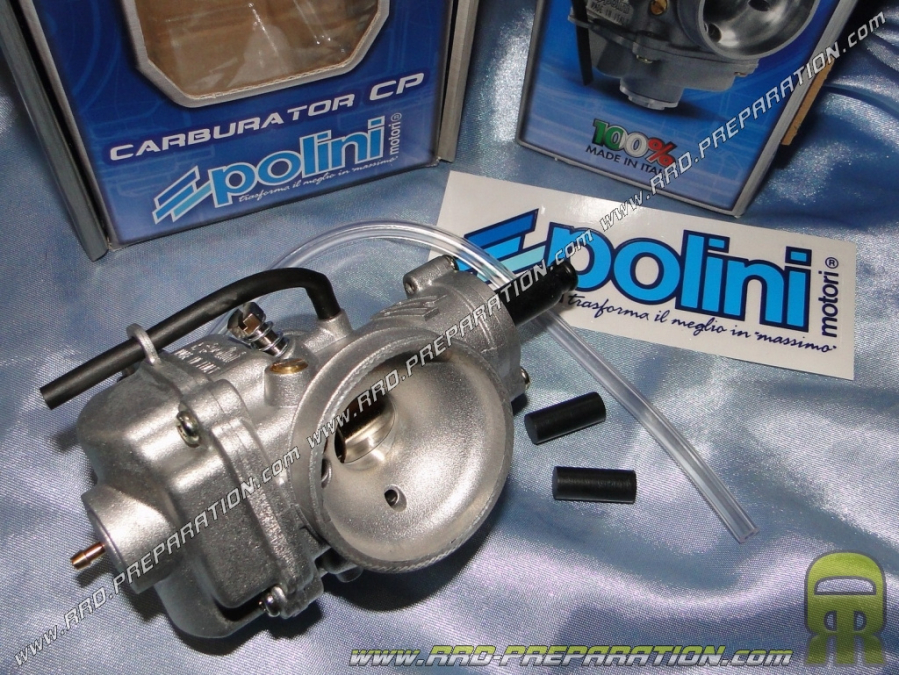

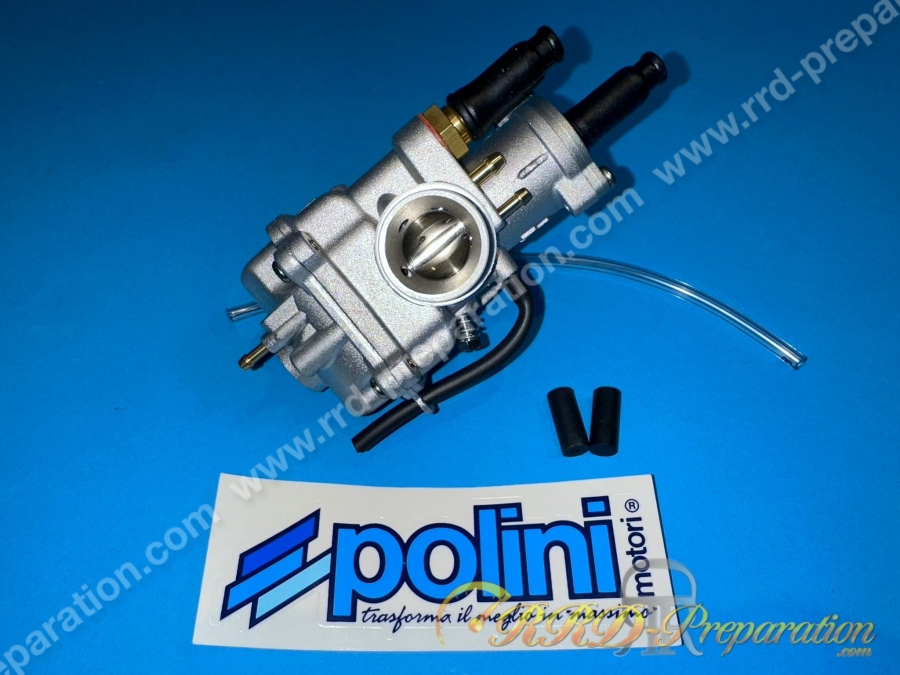

Here is the basic standard version of the CP type 17,5mm POLINI MOTORI, it is a high performance carburetor, made in Italy 100% and not in China, high quality that is easier to adjust!
This version is the standard, it has a separate grease outlet and a plug for depression, its choke is a lever pull cable model choices.
Basically, when you start on a carburettor POLINI CP, we already know that we buy a carburetor much lighter than a DELLORTO, with a much better anti-emulsion worked, a still aluminum tank, an extra ordinary finish, easier settings, an excellent system of anti-leakage needle valve float ...
This version is an excellent base for engines equipped or origin with a racing exhaust, it is simple to adjust and will be perfectly suitable for engine operating speeds up to 13000 maximum! For very high-powered engines that grow very high, an EVOLUTION version exists! You can change it as you wish with all the tuning accessories that we sell, large diameter tulips are also available for the installation of large-input filters and improve the venturi effect!
A tank with cap is also available for faster adjustment. The plug is a D / 24mm, cutting 30 °, nozzle 80. The needle is a CP 14 22, one after well in 2.6 -17.5! You'll understand, it's a powerful carburettor with a really nice price! 2 shutters are delivered to you if you do not want to use the sockets!
Summary of settings and options:
Options: plugs under the tank, special machining, large diameter tulip and Ø17,5mm settings and Ø22mm output (conical machining competition)
Mounting: Flexible for pipe diameter 25mm level fixation
Starter: cable or lever choices
Vacuum or separate greasing: Yes and yes
Main jet: POLINI CP 80
Needle: CP 14 22
Secondary sprinkler: POLINI 38
Bushel diameter 24mm cut 30 °
Parts after needle wells 2.6-17.5
Wealth: tightly moderately and loosely 0.5 turns (half a turn)
Air filter Ø46mm without tulip
For gasoline hose diameter 6mm (or 5 in forcing)
Needle clips in the middle on 3 notches
