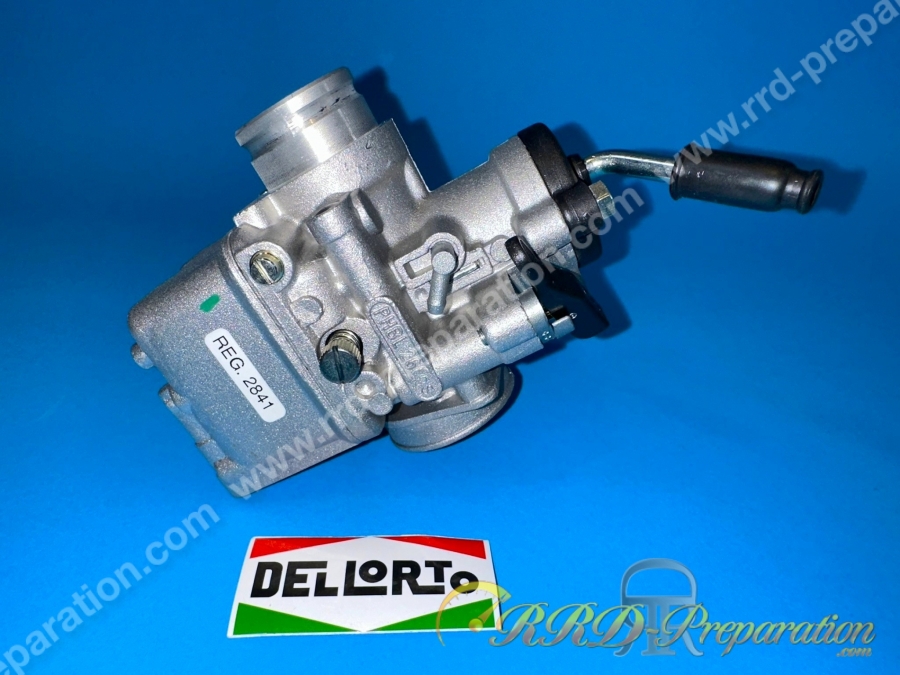

A true carburettor DELLORTO model PHBL 26 BS which is very well renowned for its good power, its ease of adjustment and its quality, inexpensive, it is a carburettor perfect for big configuration for which you will easily find spare parts or settings . Other versions in 24 or 25 PHBL are also available here.
Many prefer this type PWK carburetors (false KEIHIN) because you certainly do not have power jet but you will not really have any worries, its longevity is huge (for proof it is used a lot on 125cc motorcycles of origin), its price is low, simple settings like the nozzle that disassembles without leaving the tank, just by unscrewing the tank cap, the nozzle is inside, parts easy to find, machining and parts of high quality and finish, power and recovery excellent, high speed ilimité with good settings, consumption not excessive, various possible settings such as the weight of the float, in short, this carburetor sometimes criticized has a lot of advantages.
Round carburetors are easier to adjust throughout the entire rev range, for example from 4,000 to 16,000 rpm. The bushel dishes generally used on motorcycles, offer more engine responsiveness (the engine responds faster to the opening of the bushel), there are also versions of special bushels adapted to the competition, track, and high speeds ...
Note that a round bushel is the best choice to ride every day with ease of adjustment, low consumption, excellent performance at high speeds, very good stability (although the mode is oriented to flat bushings low range ...) . In addition, it is generally recommended a flat bushel on cylinder with barrel exhaust while the round bushel would be better for cylinders with booster exhaust or oval.
Features :
-Type: male in flexible assembly
-Diameter: 26mm
-Timer manual lever (possibility to install a cable system)
-Diameter for fixing air filters Ø38mm, non-threaded
-Separate grinding: no, by mixing but possibility to install it on the intake pipe
-Depression to depression: no, but possibility of installing the depression on the pipe or to install a gas valve brand MALOSSI example or equivalent.
-Power jet: without
-Barrot round shape cut at 60 °
-Diguille type D 36
-Side of needle: 270 type K
-Chitter starter 60
-Point full CPL size 200
-Double float 3.6 grams
-Greater primary nozzle not 122 (standard DELLORTO)
-Gicleur secondary: small step 30 (standard DELLORTO)
