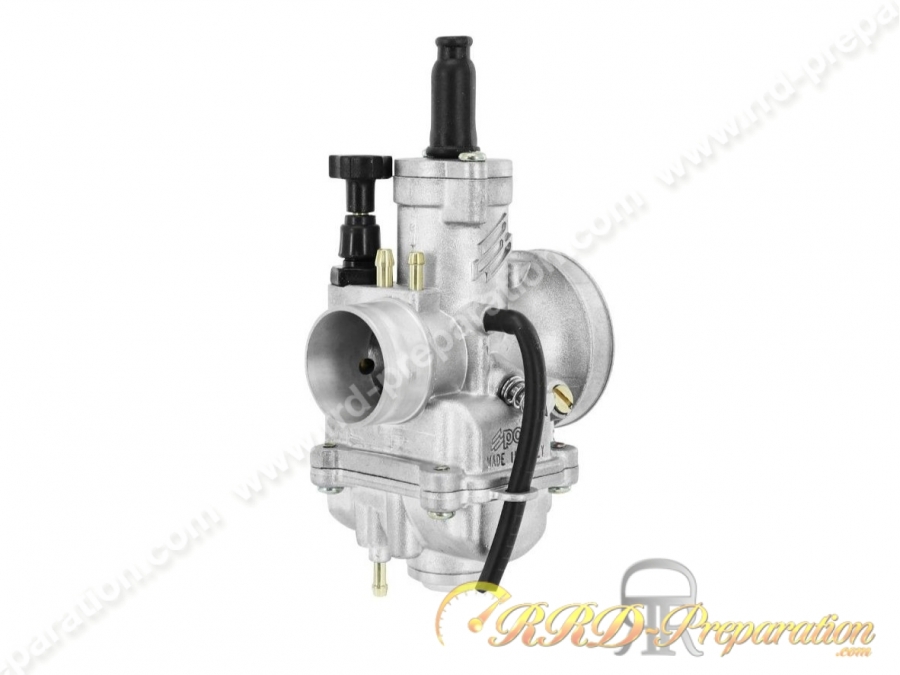

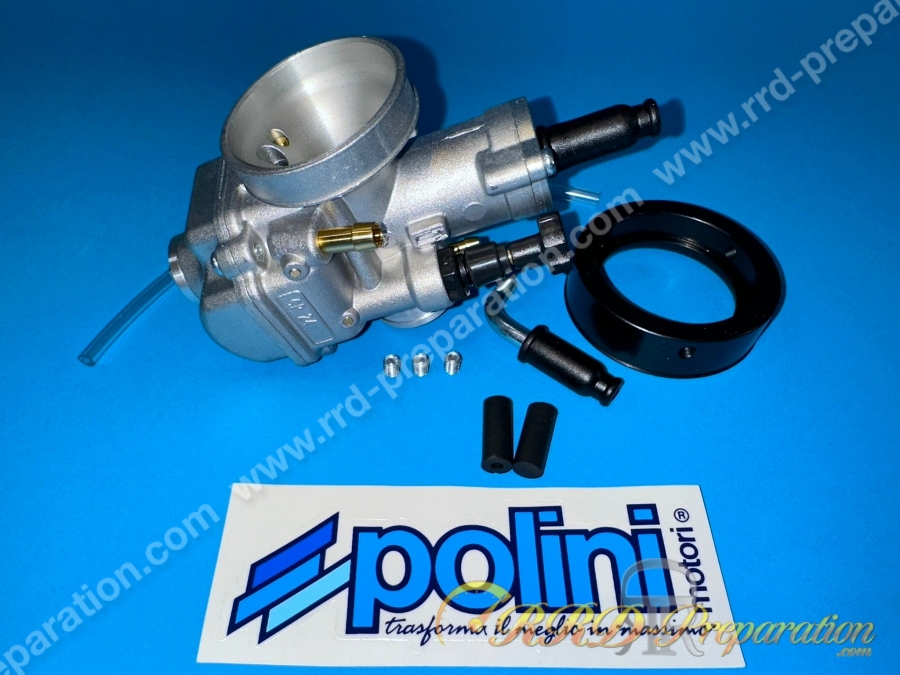

The CP POLINI Ø24 carburetor in its EVOLUTION version has been specially developed and studied to accompany an engine prepared for competition. It allows you to properly exploit the power of pushed engines and will offer you maximum engine performance. This CP EVOLUTION releases its performance and supplies between 12,000 and 15,000 revolutions without problems!
Everything in this piece is of course made in Italy (and not in Asia), which makes it a high end item whether in its machining or finish, very clean and smooth. It has a separate grease outlet, a vacuum outlet and a lever choke that you can wire to if you wish.
Its body is made entirely of sturdy and lightweight aluminum alloy. A tank also in aluminum, simple and efficient adjustments, a whole specific and efficient internal system. Its fixation on the intake pipe is Ø28.5mm with anti-slip lip for the connecting sleeve. In addition to this, you need to know more about it.
A tank cap is present for a faster change of settings without the complete disassembly of the tank, a large diameter tulip is provided with this carburetor to install the large diameter Ø60 / 61mm filters. Equipped with a main nozzle 112, secondary nozzle 40, Ø25mm bushel, cut at 30 °, 3 notches needle 14/22, one after well / spray nozzle 2.7, float 5 grams, tube / pipe at 90 ° .... All these parameters can of course be changed with the spare parts that we sell.
This carburetor, you will have understood it is entirely dedicated for the competition, the craziest performances and will be ideal to accompany a high engine kit of large displacement (70, 80cc ...) with racing exhaust, racing crankshaft, prepared intake. ...
Summary of settings and options:
-Options: caps under the tank, special machining, large diameter tulip and settings
-Ø23mm and output in Ø28.5mm (competition conical machining)
-Mounting: Flexible for pipe diameter 28.5mm level fixing
-Starter: with lever (possibility of passing in cable)
- Vacuum outlet or separate lubrication: Yes
-Main jet: POLINI CP 112
- Needle: CP 14 22
-Secondary nozzle: POLINI 40
- 25mm diameter bush cut 30 °
-Pieces after needle well 2,7-19 / 23
-Richness: moderately tight and loosened by 1 turns
-Air filter Ø60 to 62mm with tulip and 45 to 47mm without tulip
-For 6mm diameter fuel hose (or 5 forcing)
- Needle clips on the 3rd notch from the top
