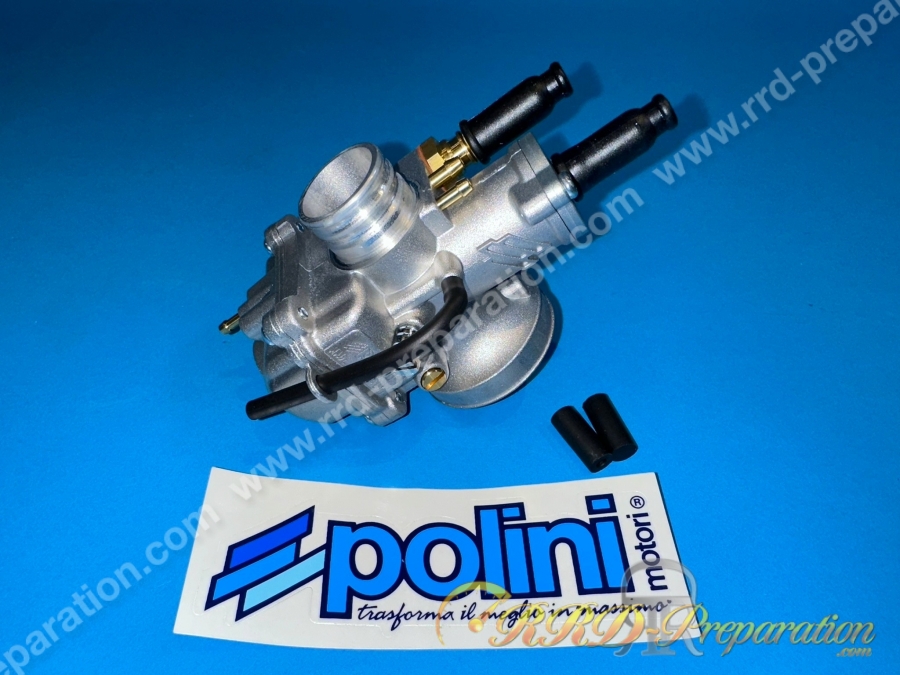

Here is the basic standard version of the 15mm CP type POLINI MOTORI house, it is a high-performance carburetor, made in Italy 100% and not in China, high quality that is easier to adjust!
This version is the standard, it has a separate grease outlet and a plug for depression, its starter is a lever pull cable model choices.
Basically, when you start on a carburettor POLINI CP, we already know that we buy a carburetor much lighter than a DELLORTO, with a much better anti-emulsion worked, a still aluminum tank, an extra ordinary finish, easier settings, an excellent leak-free needle valve system, ...
This version is a superb base for the engines equipped or origin well released with a racing exhaust, it is simple to adjust and will be perfectly suitable for engine operating speeds up to 13000 maximum!
You can modify it to your sauce with all the accessories of adjustment that we sell, big diameter tulips exist also for the installation of the filters with big entrance and to improve the venturi effect!
A tank with cap is also available for faster adjustment. The plug is a D / 24mm, cut 30 °, nozzle 70. The needle is a CP 14 22, one after well in d.2.6! You'll understand, it's a carburetor decidedly sporty with a really nice price! 2 shutters are delivered to you if you do not want to use the sockets!
Summary of settings and options :
Options: caps under the tank, special machining, large diameter tulip and settings
Ø15mm and Ø22mm output (conical machining competition)
Mounting: Flexible for pipe diameter 25mm level fixation
Starter: cable or lever choices
Vacuum or separate greasing: Yes and yes
Main jet: POLINI CP 70
Needle: CP 14 22
Secondary sprinkler: POLINI 36
Bushel diameter 24mm cut 30 °
Parts after needle well 2.7-19
Wealth: tightly moderately and loosely 0.75 turns (3/4 of a turn)
Air filter Ø46mm without tulip
For gasoline hose diameter 6mm (or 5 in forcing)
Needle clips in the middle on 5 notches
