Reference: 01486_72
Main Jet For DELLORTO Carburetor Small Pitch 5mm Thread 8mm Length Genuine (INC Certified)
Certified DELLORTO INC! Choose real DELLORTO quality!
Banner

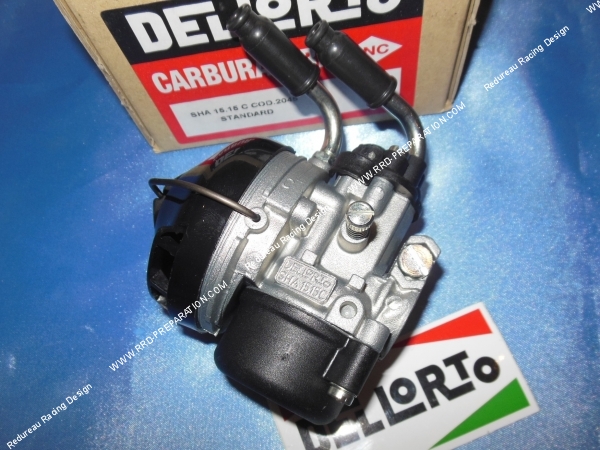

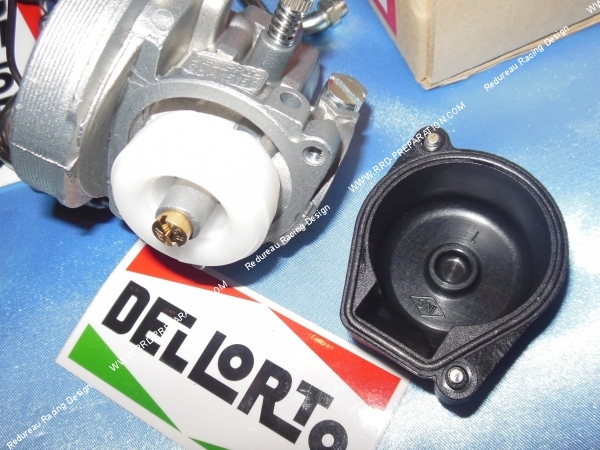

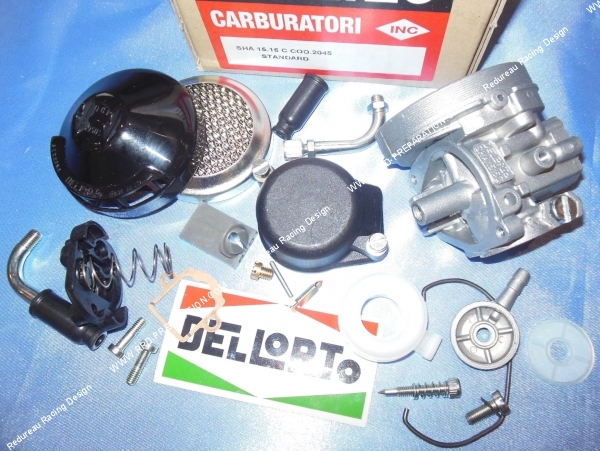

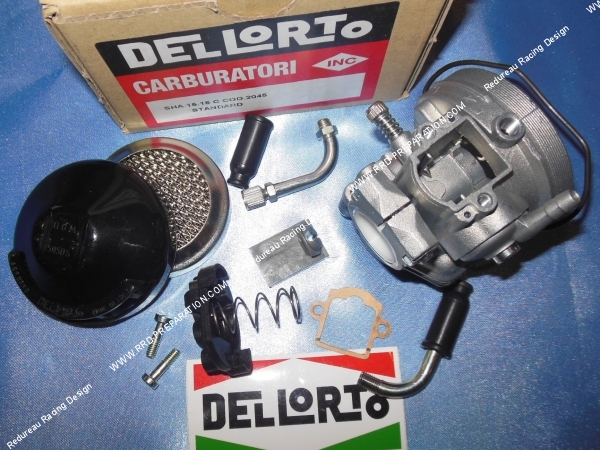

The SHA 15.15 C carburettor is a simple, well-known and very functional model. With its diameter of 15mm it will be more than enough on mopeds (PEUGEOT 103, MBK 51...) small configurations such as exhaust, small kit or preparation, variator... If you are looking for a carburettor that does not have separate lubrication , simple to adjust, solid, cheap, quite powerful, which consumes little and makes little noise! This carburetor is for you.
This version C is a version with manual cable choke (without lever) which does not have a separate lubrication inlet, this version also has an adjustable straight aluminum fuel inlet. There is also the G and standard version. This carburettor has an integrated air filter and fuel filter delivered and included in the price. This carburettor has a horizontal accelerator and choke cable arrival (90° angled), you can easily install vertical or other arrivals.
Guaranteed high quality, genuine DELLORTO carburettor, it was even used as original equipment on certain machines!
Advice : accompany it with a 15mm pipe, carbon type valves (thickness to choose according to your engine). Try to align valves and pipe as well as possible. Delete one or two air filter grids maximum or, for the best, mount a racing air filter, and provide a range of nozzles from 69 to 77 in small Ø5mm steps. This carburetor can be very efficient.
This carburetor is equipped with these parameters :
- Bushel size 12
-DELLORTO standard jet of 68 in small pitch
Summary :
-Diameter of the carburettor on the intake pipe: 19mm
-Mounting: Rigid
-Separate lubrication: no
-Diameter fixing air filter 59mm
-Cable starter
-Carburetor diameter 15mm

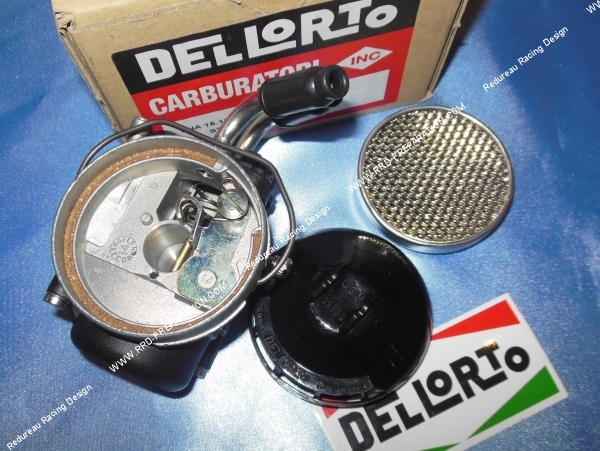

-Air filter and fuel filter integrated into the carburettor
