Reference: 02838_00
Needle for carburettor DELLORTO PHBG, PHBG Racing, SHA
Ideal in case of problem, breakage or loss of your old part!
Banner

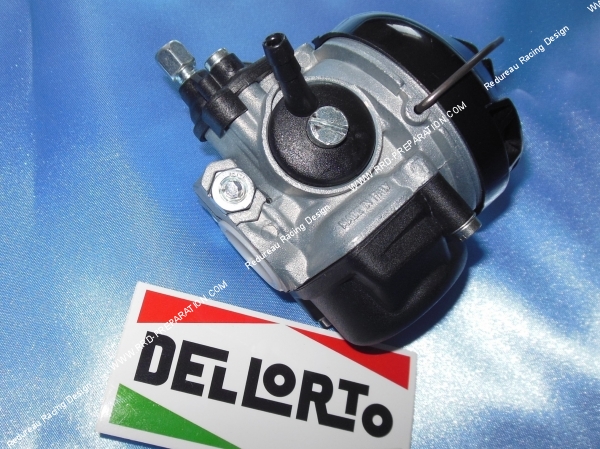

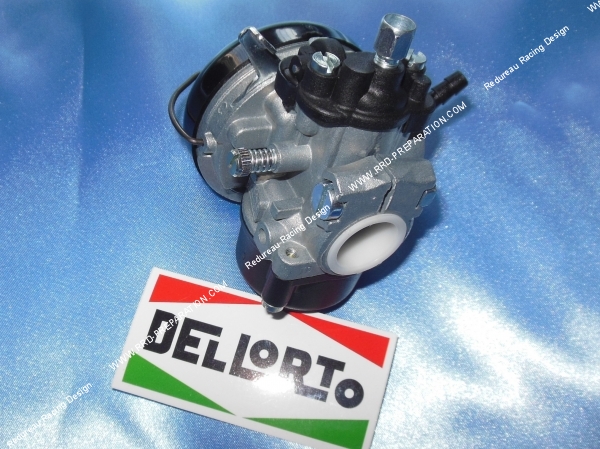

The SHA 14.12 L carburettor could not be simpler and more functional. With its diameter of 14mm it will be more than sufficient on small configurations such as exhaust, small kit or entirely original. If you are looking for a carburetor that does not have separate lubrication, easy to adjust, solid, inexpensive, which consumes little, makes little noise! This carburetor is for you. This version is equipped with a manual lever choke (without cable) which does not have a separate greasing inlet, this version also has a plastic fuel inlet bent at 45 °.

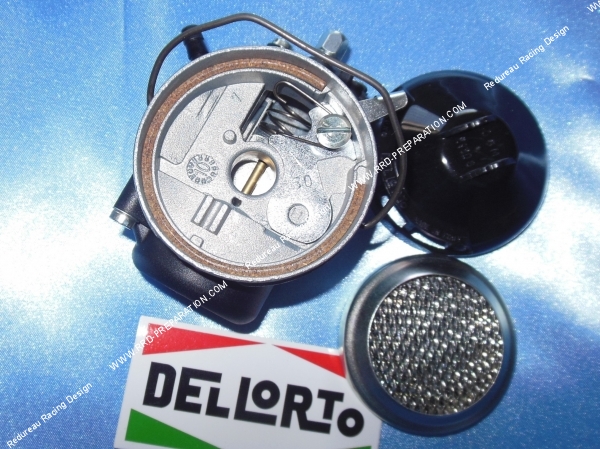

This carburetor has an integrated air filter and fuel filter. This carburetor has a vertical accelerator cable inlet, you can easily install a horizontal inlet. The choke has automatic disengagement, as soon as you accelerate fully, the choke jumps on its own, no need to lower the lever manually. Clearly, an excellent little carburetor ready to be installed.

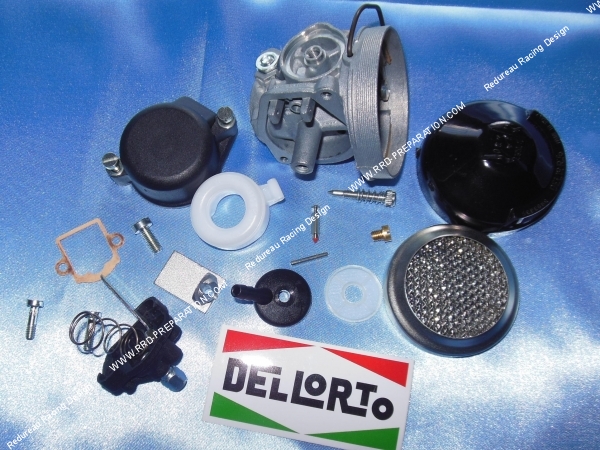

Type of material fitted to this carburetor when you receive it :
- Bushel size 2
- Dellorto standard 57 jet in small steps
Technical summary :
-Carburetor model 14 (outlet diameter pipe side) and 12 (inlet diameter filter side)
-Diameter for fixing the carburettor on the intake pipe: Ø18mm
-Rigid mounting with white nylon ring
-Diameter external air intake Ø59mm
-Separate greasing: no
-Starter lever (automatic disengagement)
-Air and gasoline filter integrated into the carburetor
