Attention, cylinder modifying the original configuration on your motorcycle. Reserved for circuit competition.
Here is one of the best kits for your HONDA MBX 50cc, CRM, MTX 50cc and NSR 50cc motorcycle with liquid cooling. An effective and radical solution to give a good boost to your 2 wheels! A real masterpiece Made In Italy available for everyone's pleasure!
Under the brand PARMAKIT, little known and yet it is one of the biggest competition brands in terms of performance, this kit is composed of a cylinder with high-end nikasil coating and aluminum treatment, a bi-segment piston , seals and accessories. It is delivered without cylinder head. With its diameter of 45mm, it still offers a displacement of 70cc!
It is therefore equipped with 5 intake transfers including 4 lateral and 1 rear in specific bar. Its architecture and its finish are obviously high-end and very well worked, its exhaust outlet is significantly improved and enlarged, of standard oval shape.The admission is done by 4 fixing screws with a center distance of 60 X 41mm . The ideal is to install a PARMAKIT intake pipe in flexible mounting with a large carburetor.
The piston is a two-segment model fitted with efficient lateral grease fittings, a preparation / opening on the rear skirt to improve sweeping and filling, as well as a low domed cap to optimize pre-compression. A reinforced piston pin 12mm in diameter, its crab-type clips also reinforced and 2 thin chrome-plated steel segments 1.5mm thick.
Clearly, an asset for your HONDA motorcycle preserving the strength and reliability of your engine without forgetting all the performance it provides!
Delivered 100% complete, we recommend accompanying it with at least: 24mm carburetor, flexible Parmakit intake pipe, cold racing spark plug, 100% synthetic racing engine oil, ....

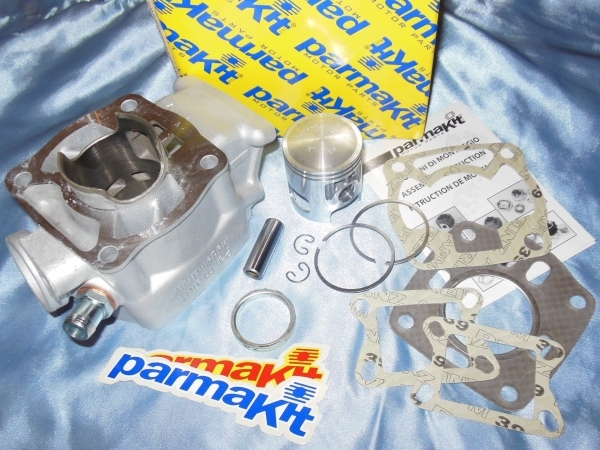

Contains:
-70cc aluminum cylinder with 5 transfers, oval exhaust
-Piston bi-segments Ø45mm with lateral grease fittings
-2 fine chromed steel segments 1.5mm thick
-Piston axis Ø12mm X 37mm
- Reinforced crab piston clips
-Pack engine seals
-Notice
- Sticker ...
Optionally we offer a stage 1 preparation, this preparation is a modification of the channels and the exhaust light by increasing the diagrams and improving the duct, it increases the performance of the cylinder. An improvement in the piston and bottom of the skirt is also included in this modification. Allow a little extra time for this preparation!
